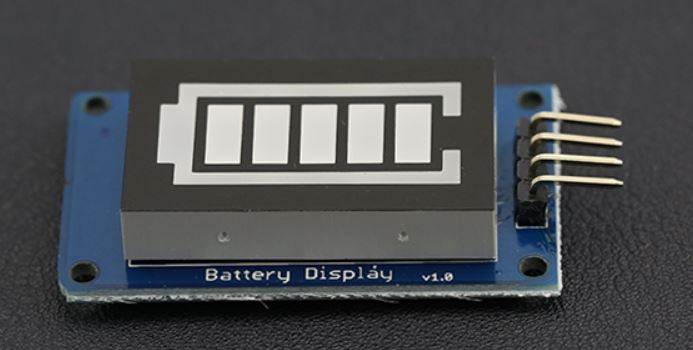

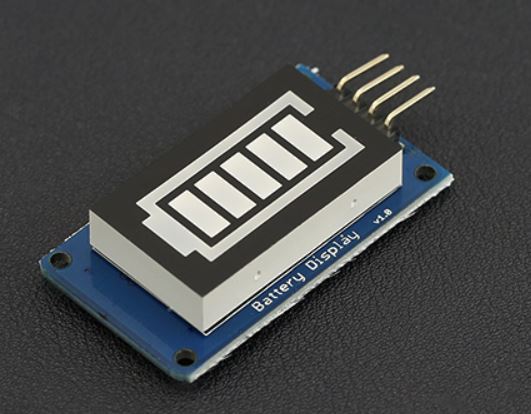

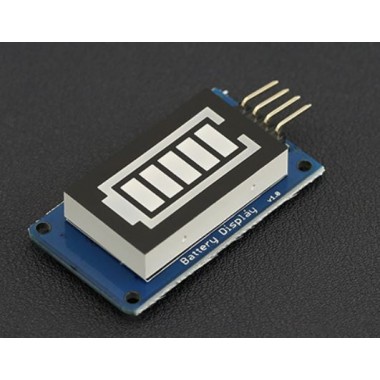

Battery Capacity Indicator
Display indicador de nivel de baterías, posee 8 niveles de brillo y 4 pines para su uso, uno de ellos el nivel de batería como dato.
COD: DFFIT0466
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 23002.00
El producto no está disponible para la venta en este momento
Características
INTRODUCTION
Sometimes battery information is not readily available or is hard to understand at a glance. Our Battery Capacity Indicator is a user friendly indicator interface that you can use in your projects.
SPECIFICATION
- Working voltage: 3.3V-5.5V
- 8 levels of brightness
- Size: 42*24*8mm/1.65*0.94*0.31 inches

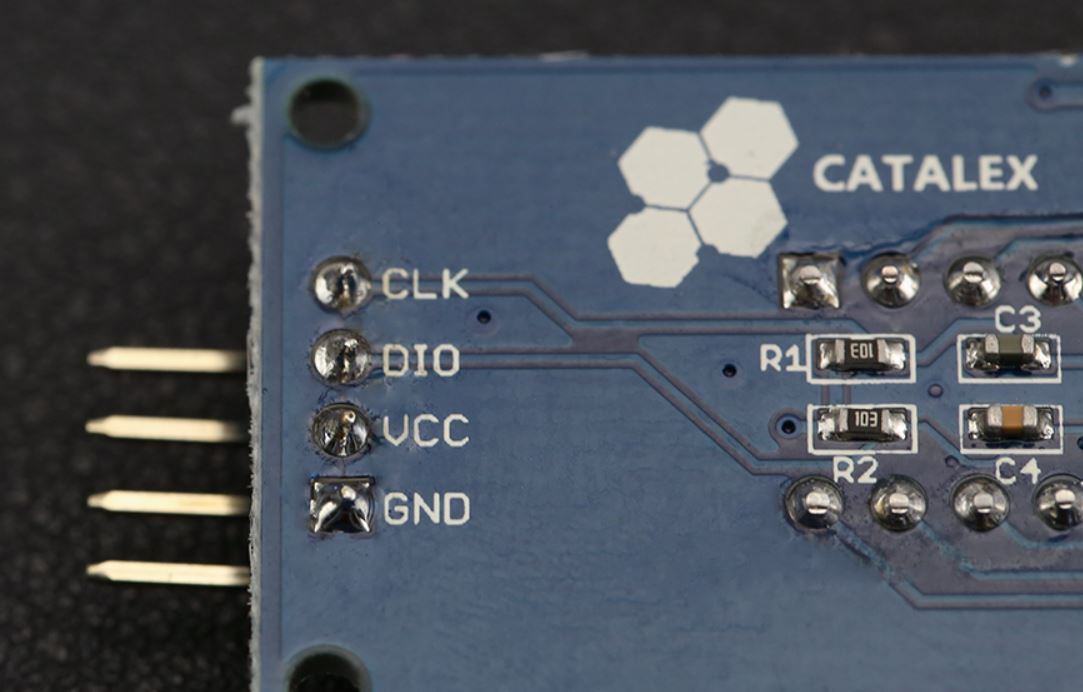

Board Overview
|
| LABEL | NAME | FUNCTION |
| 1 | CLK | CLOCK |
| 2 | DIO | DATA |
| 3 | VCC | Power Input +(3.3V-5.5V) |
| 4 | GND | GND |
Links:
battery_display_v1.0_schematic.pdf (22 Kb)
fit0466-libraries.zip (5 Kb)
