Gravity: 360 Degree Hall Angle Sensor

Principal

Sensor capaz de convertir la información del angulo a medir(0-360 grados) en una salida analógica que va de 0 -5 VDC; basado en el principio de efecto Hall.

COD: DFSEN0221

Peso: 0.036 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 111925.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

INTRODUCTION

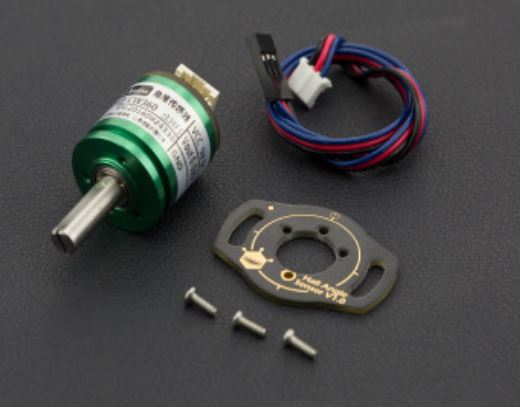

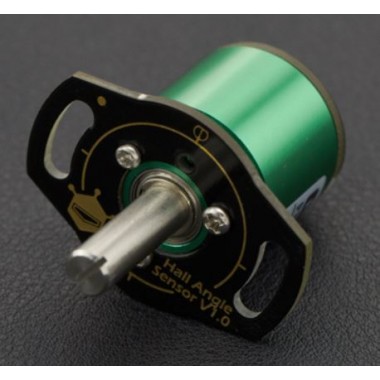

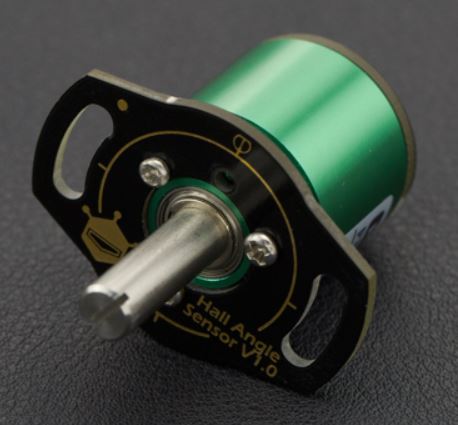

The Hall Angle Sensor is a miniature 360 degree sensor which works based on the principle of the Hall effect. It works with a 5V DC power supply. The analog output is also 0~5V so it can work directly with Arduino.

The Hall angle sensor works by converting its angle information to an electrical signal. When the rotation angle of the object is passed to the axis of rotation sensors, it outputs an electrical signal that is proportional to the rotational angle.

The angular sensor shell is constructed from robust aluminum alloy, using Hall-type non-contact technology. It includes high-quality imported high-speed stainless steel bearings and other components for reduced frictional resistance when taking readings.

The unit offers a long service life and is compact, with a high resolution, smooth rotation and dynamic noise. This unit is guarantees performance in various harsh industrial environments and is protected from electromagnetic interference, water, oil, vibration and shock. A typical application is crank angle sensing and steering angle measurement.

SPECIFICATION

  • Mechanical Angle: 0 - 360° (Non stop)
  • Operating Voltage: 5V ± 10%
  • Operating Current: <13.5mA
  • Output Signal: 0-5V DC (Ratio)
  • Resolution: 0.088° (12-bit ADC)
  • Accuracy: ± 0.3% FS
  • Output Shaft Dimensions: 6mm (D Sharp)
  • Rotational Torque: <5mN·m
  • Refresh Rate: 0.6ms / 0.2ms (high speed)
  • Operating Temperature: -30 ℃ ~ +80 ℃
  • Allowable Axial Load: Horizontal <5N; Vertical <10N
  • Protection Class: IP40
  • Mechanical Life:> 50 million revolutions
  • Weight: 36g
