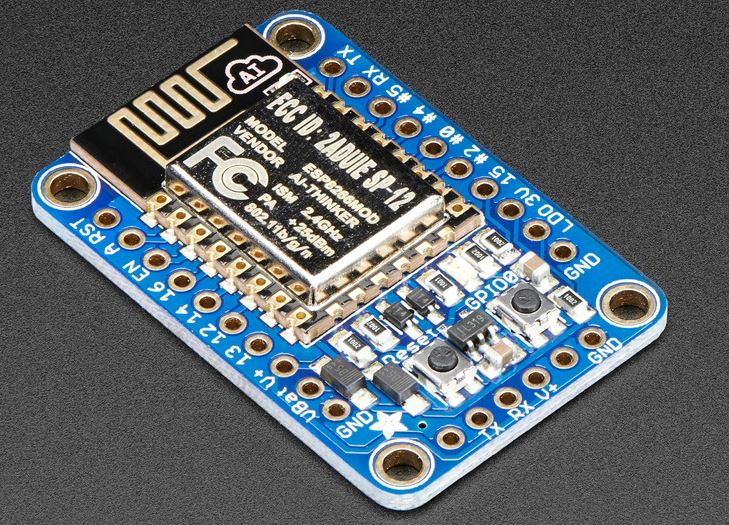

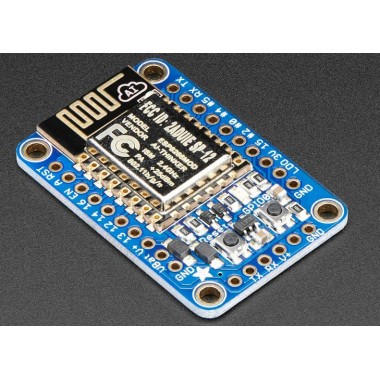

Adafruit HUZZAH ESP8266 Breakout
Breakout amigable y fácil de utilizar del famoso ESP8266, módulo capaz de brindarle wifi a tus proyectos. Ideal para aplicaciones Iot (Internet of Things).
COD: D002471
Peso: 0.010 Kg
Disponibilidad: En Stock
ARS 19035.00
El producto no está disponible para la venta en este momento
Características
DESCRIPTION
Add Internet to your next project with an adorable, bite-sized WiFi microcontroller, at a price you like! The ESP8266 processor from Espressif is an 80 MHz microcontroller with a full WiFi front-end (both as client and access point) and TCP/IP stack with DNS support as well. While this chip has been very popular, its also been very difficult to use. Most of the low cost modules are not breadboard friendly, don't have an onboard 500mA 3.3V regulator or level shifting, and aren't CE or FCC emitter certified....UNTIL NOW!

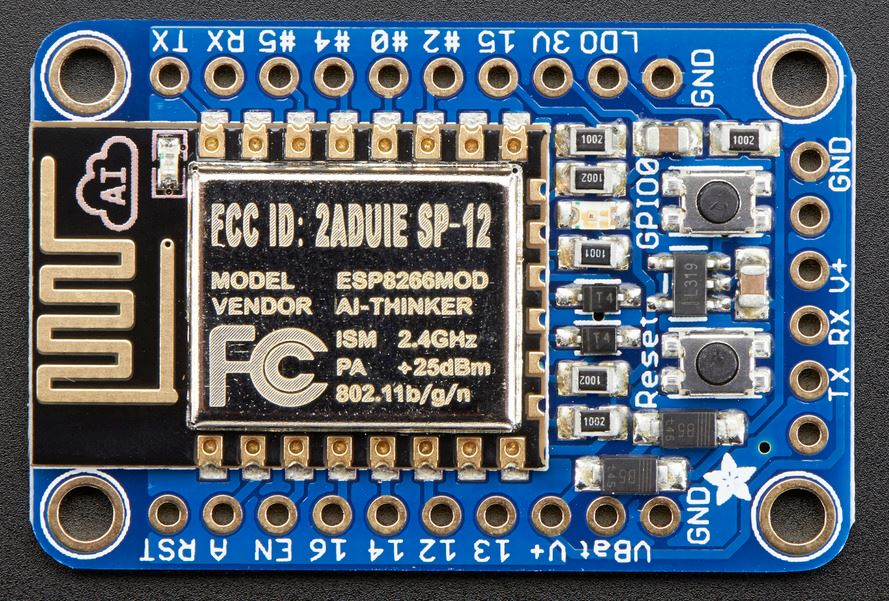

The Adafruit HUZZAH ESP8266 breakout is what we designed to make working with this chip super easy and a lot of fun. We took a certified module with an onboard antenna, and plenty of pins, and soldered it onto our designed breakout PCBs. We added in:
- Reset button,
- User button that can also put the chip into bootloading mode,
- Red LED you can blink,
- Level shifting on the UART and reset pin,
- 3.3V out, 500mA regulator (you'll want to assume the ESP8266 can draw up to 250mA so budget accordingly)
- Two diode-protected power inputs (one for a USB cable, another for a battery)
Two parallel, breadboard-friendly breakouts on either side give you access to:
- 1 x Analog input (1.0V max)
- 9 x GPIO (3.3V logic), which can also be used for I2C or SPI
- 2 x UART pins
- 2 x 3-6V power inputs, reset, enable, LDO-disable, 3.3V output

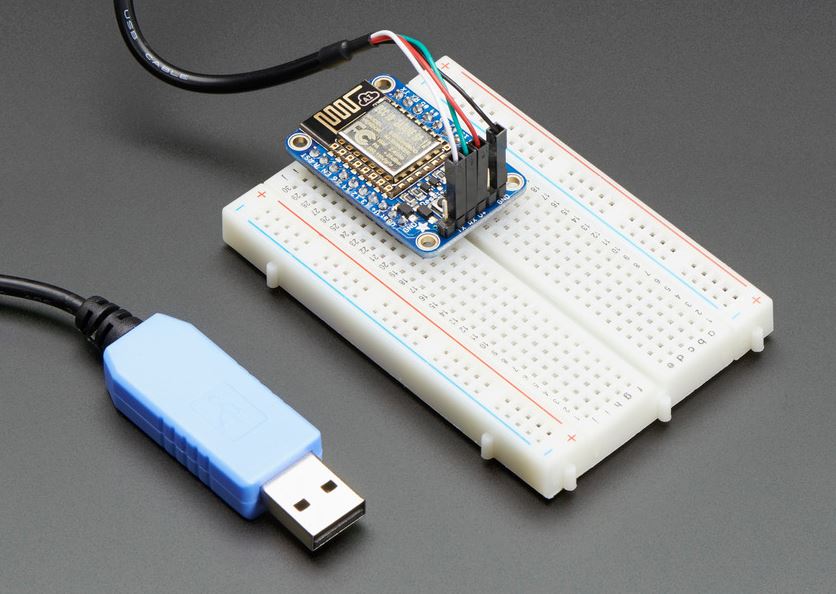

One breakout at the end has an "FTDI" pinout so you can plug in an FTDI or console cable to upload software and read/write debugging information via the UART. When you're done with your coding, remove the cable, and this little module can be embeded into your project box.
Each module comes pre-loaded with NodeMCU's Lua interpreter (NodeMCU 0.9.5 build 20150318 / Lua 5.1.4 to be specific), you can run commands, and 'save' Lua programs directly to the module's Flash using a USB-Serial converter cable. But, if you'd like, you can skip Lua and go direct to using the Arduino IDE. Once you download the ESP8266 core, you can treat it just like a microcontroller+WiFi board, no other processors needed!

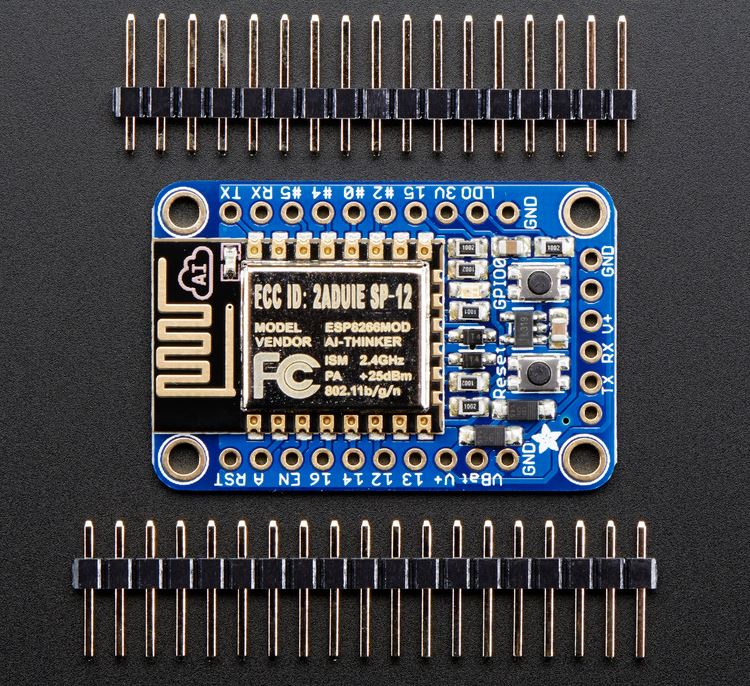

Each order comes with one assembled and tested HUZZAH ESP8266 breakout board, and a stick of 0.1" header that you can solder on and plug the breakout into a breadboard. A soldering iron and solder are required for that, and aren't included. Solderless breadboard also not included. Our essential tutorial has wiring, pinouts, assembly, downloads, and more!
TECHNICAL DETAILS

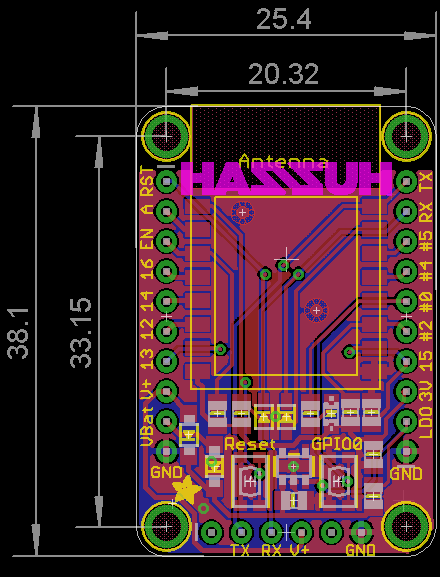

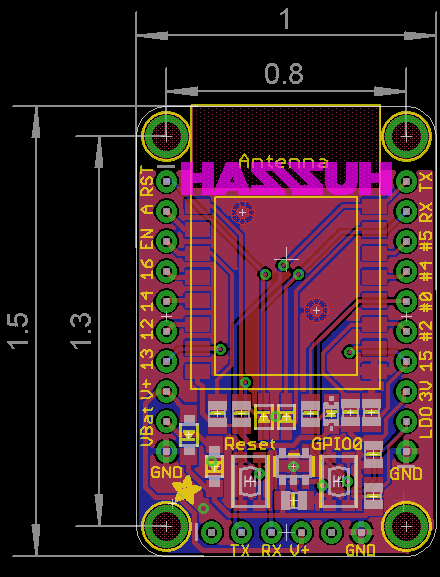

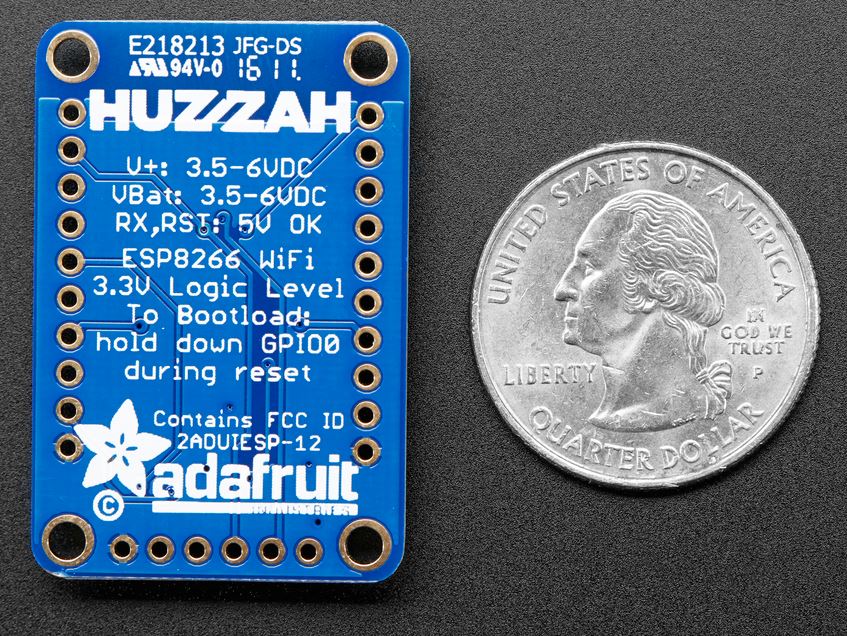

- Dimensions: 25mm x 38mm x 5mm / 1" x 1.5" x 0.2"
- Weight: 5g
- Pre-programmed with NodeMCU 0.9.5 build 20150318 (Lua 5.1.4)
You may get a blue or black module, they are identical.

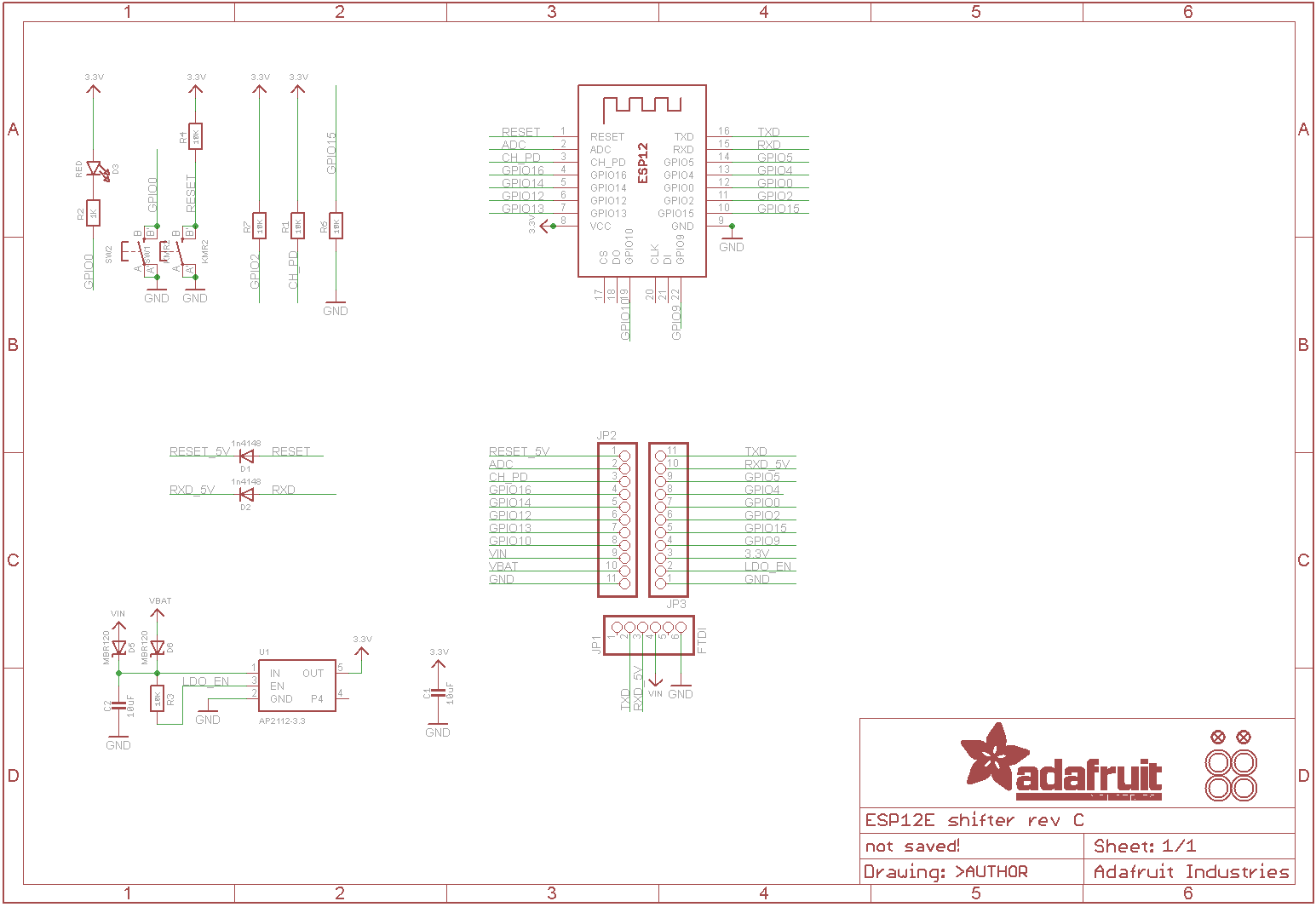

Datasheets, PCB CAD files and Fritzing objects available in the tutorial downloads page.
Revision history: as of May 15, 2016 we have changed the power supply to run from a 6V DC max rather than 12V. At 12V the power supply would overheat anyways!
0a-esp8266_datasheet_en_v4.3.pdf (810 Kb)
adafruit-huzzah-esp8266-basic-breakout-pcb-master.zip (141 Kb)
