Micro DC motor gear box

Micro DC motor gear box

Motor DC con reductor de engranajes plásticos (NO ES UN SERVO). Si bien a la vista es igual a los modelos FS90 y FS90R, su principal diferencia es la ausencia de control de giro integrado, por lo que para poder controlar la velocidad/posición es necesario utilizar un driver tal como el L293D.

COD: FTFM90

Peso: 0.020 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 5030.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

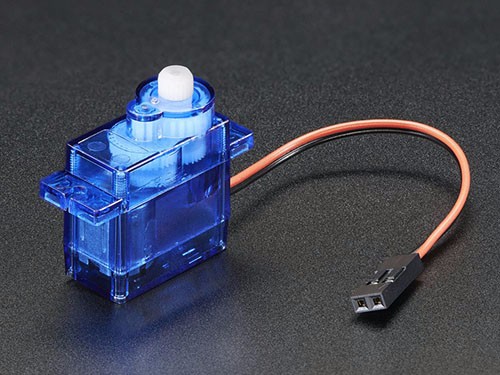

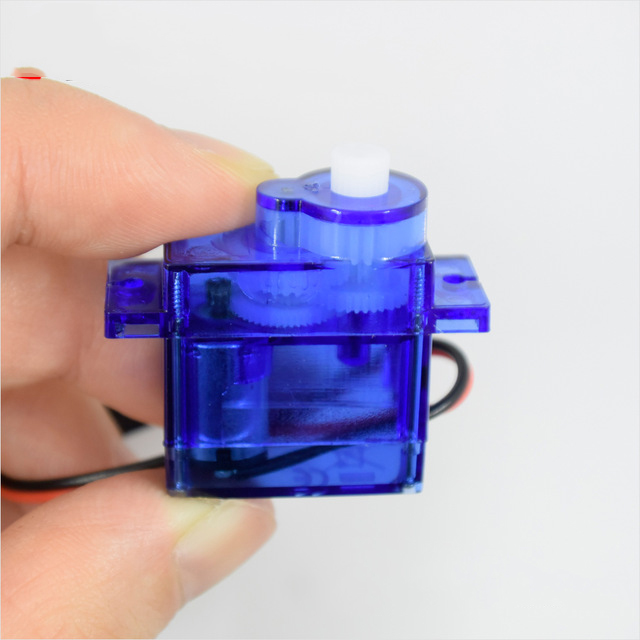

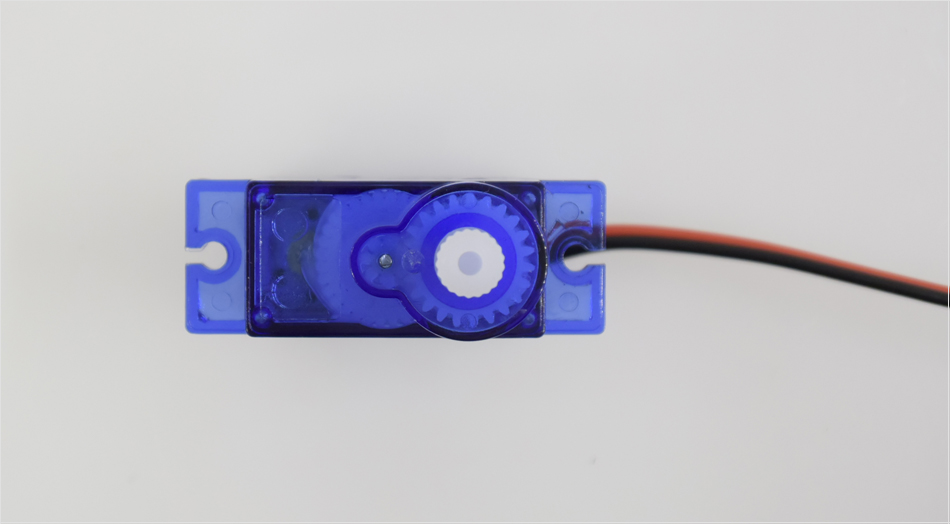

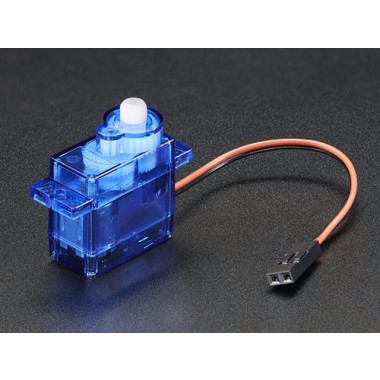

This tiny DC Motor in Micro Servo Body is an interesting motor - it's the same size and shape as our micro servo (like the FS90, FS90R, SG92R) but it isn't a servo. It's more like a DC motor + plastic gear-train in a box. It's not a super powerful motor, it would do well as a little robot wheel. It's also a lot less expensive than a micro servo (continuous or non-continuous) because there is no control board inside. Controlling speed is done by PWM'ing the power leads, controlling direction is done by swapping the power polarity - just like any brushed DC motor.

Runs from 4-6VDC, we've powered it with a Lipoly and 3 alkaline, or 4 NiMH batteries with success. You cannot control this directly from a microcontroller pin! You must have a H-bridge such as a L293D or motor shield.

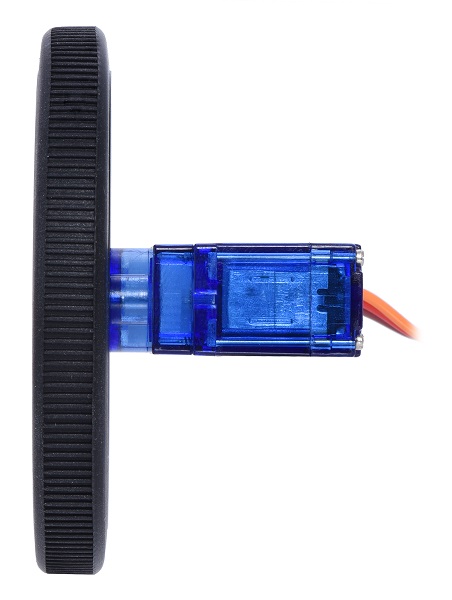

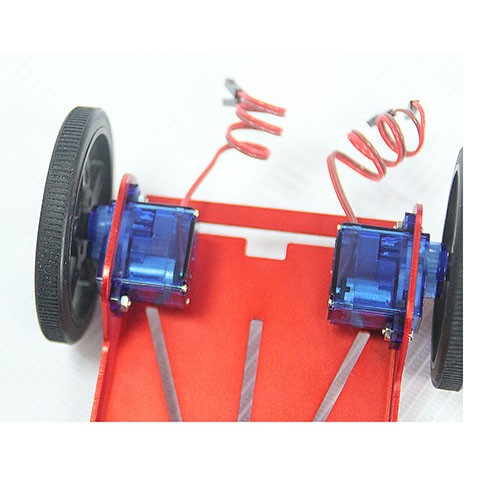

Motor comes with 2x screws and 2x nuts for mounting to a chassis. No flanges or horns included - it's intended to mate with wheels, like our FS90R-W. There's a screw to attach once they're plugged together. Build a robot vehicle of your own with these little motors driving it!

Product Specs:

  • Dimensions: 32.3mm x 12.3mm x 29.9mm / 1.3" x 0.49" x 1.2".
  • Spline Count: 21.
  • Weight: 8.4g.
  • No load speed: 110RPM (4.8v) / 130RPM (6v).
  • Running Current (at no load): 100mA (4.8v) / 120mA (6v).
  • Peak Stall Torque (4.8v): 1.3 kg/cm / 18.09 oz/in.
  • Peak Stall Torque (6v): 1.5 kg/cm / 20.86 oz/in.
  • Stall Current: 550mA (4.8v) / 650mA (6v).

FITEC
MODEL

SIZE
(mm)

WEIGHT

SPEED

Stall Torque





SKU

(LxWxH)

g

oz

sec/60°

kg.cm

oz.in



FM90

23.2x12.5x22

9

0.32

0.12(4.8V)
0.10(6V)

1.3(4.8V)
1.5(6V)

18.09(4.8V)
20.86(6V)



  • Direction :CCW.
  • Operating Angle :120 degree.
  • Required Pulse :900us-2100us.
  • Bearing Type :None.
  • Gear Type :Plastic.
  • Motor Type :Metal.
  • Connector Wire Length :15 cm.
  • Package Size: 15cm x 10cm x 8cm (5.91in x 3.94in x 3.15in).
