FT-MC-001 FEETECH 2WD Mini Robot Mobile Platform Kit A

FT-MC-001 FEETECH 2WD Mini Robot Mobile Platform Kit A

Kit para armar una plataforma de desarrollo robot de tres ruedas, fácilmente montable. No incluye controlador electrónico.

COD: FTMC001

Peso: 0.138 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 34183.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

FEETECH 2WD Mini Robot Mobile Platform Kit FT-MC-001

No completely assembled and without any electronic control part.

1.All about fun and creativity.

2.Easy-to-assemble,an all-in-one solution for kids to improve the hands-on ability about
programming, electronics, and robotics.

3.Enjoy the pleasure of DIY (add all kinds of sensors,infrared ray,
free become to obstacle-avoidance car,
line-following vehicle, remote control car,etc),provides infinite possibilities.

4.Compatible with any controller. (Arduino,Raspberry PI,Banana PI,etc).

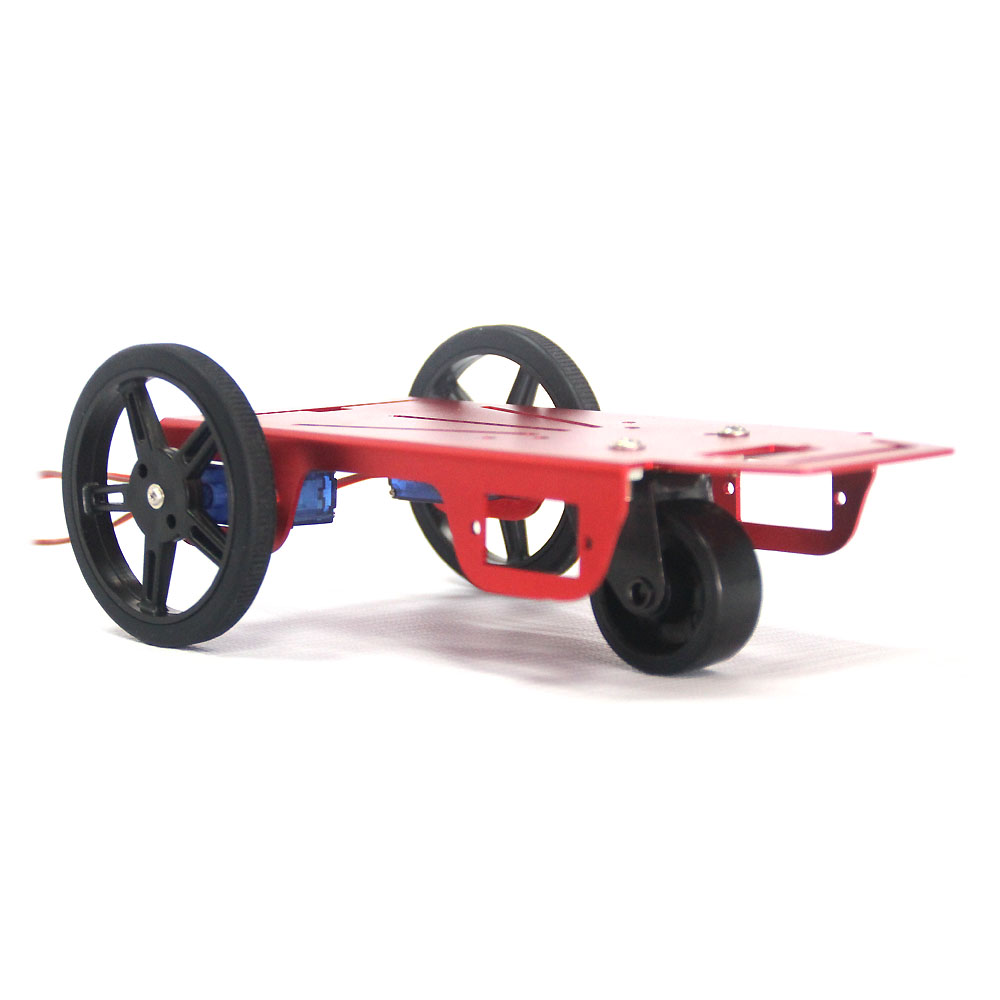

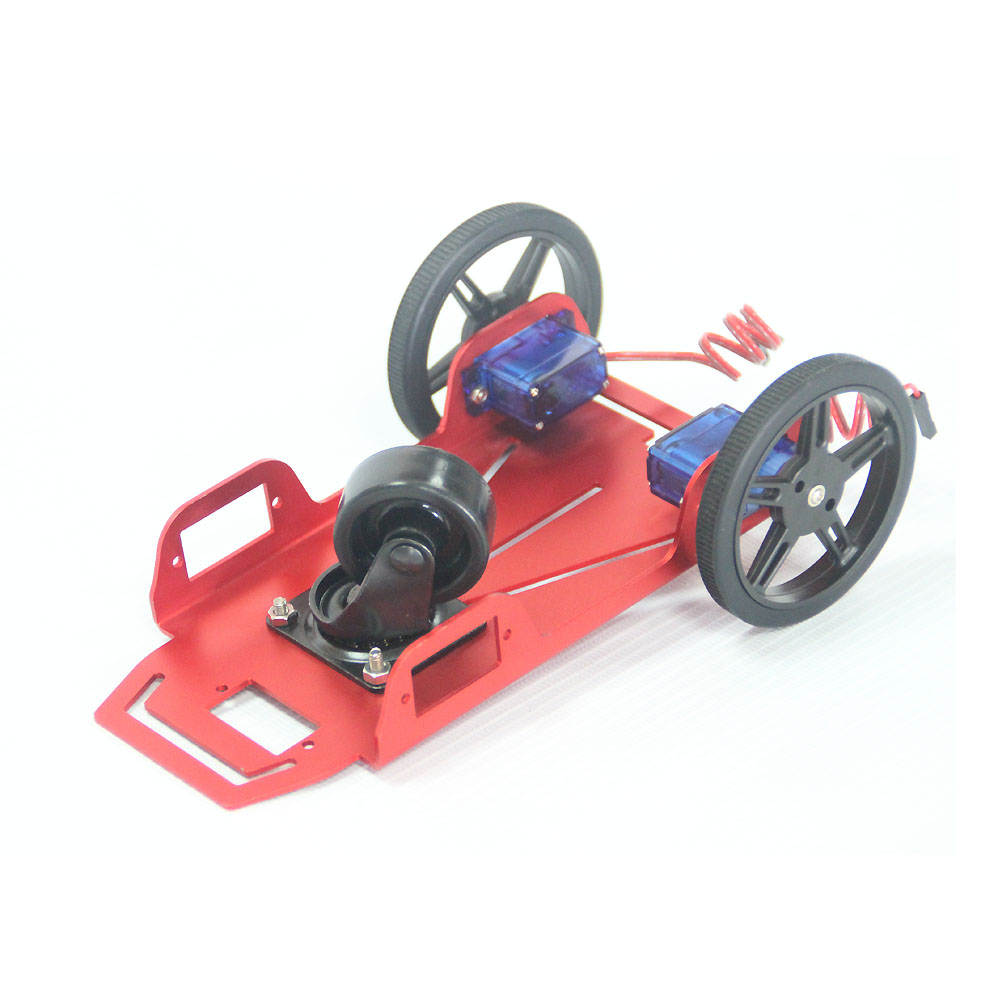

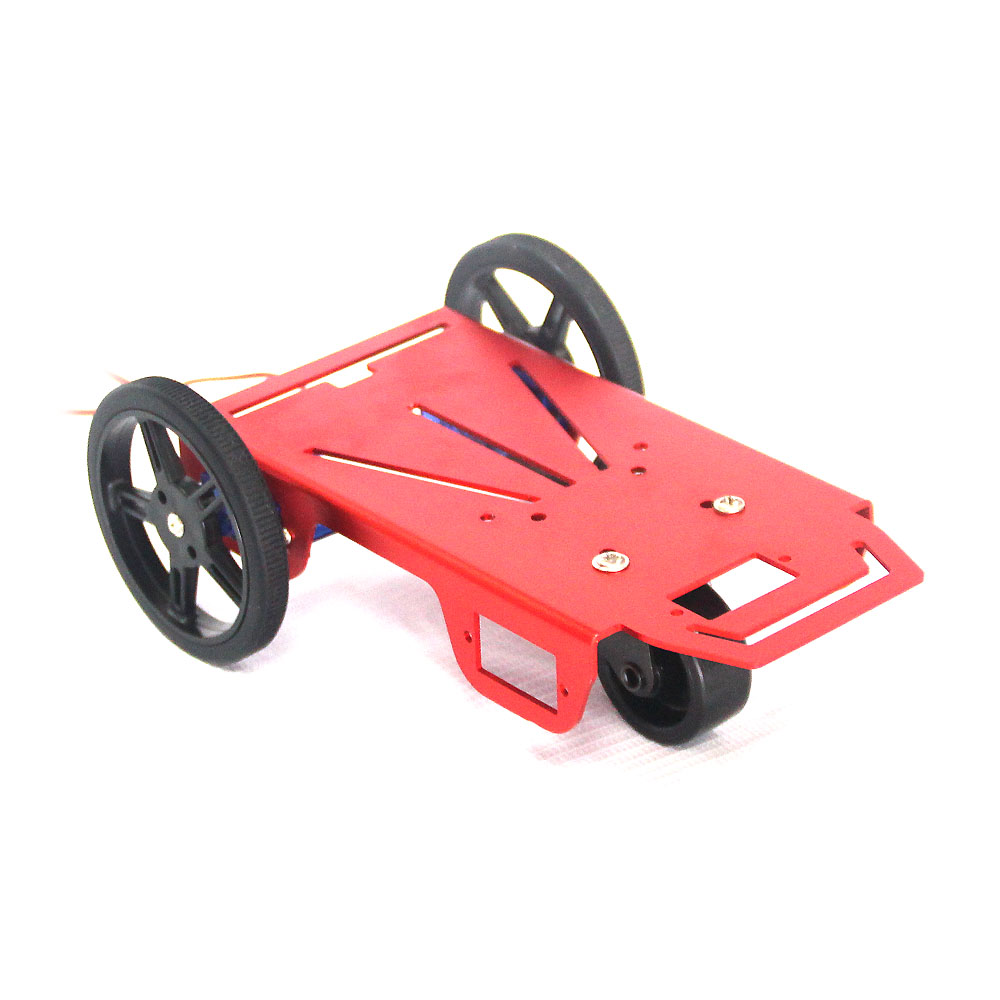

FEETECH FT-MC-001 2WD Mini Robot Mobile Platform Kit For Education



Description:

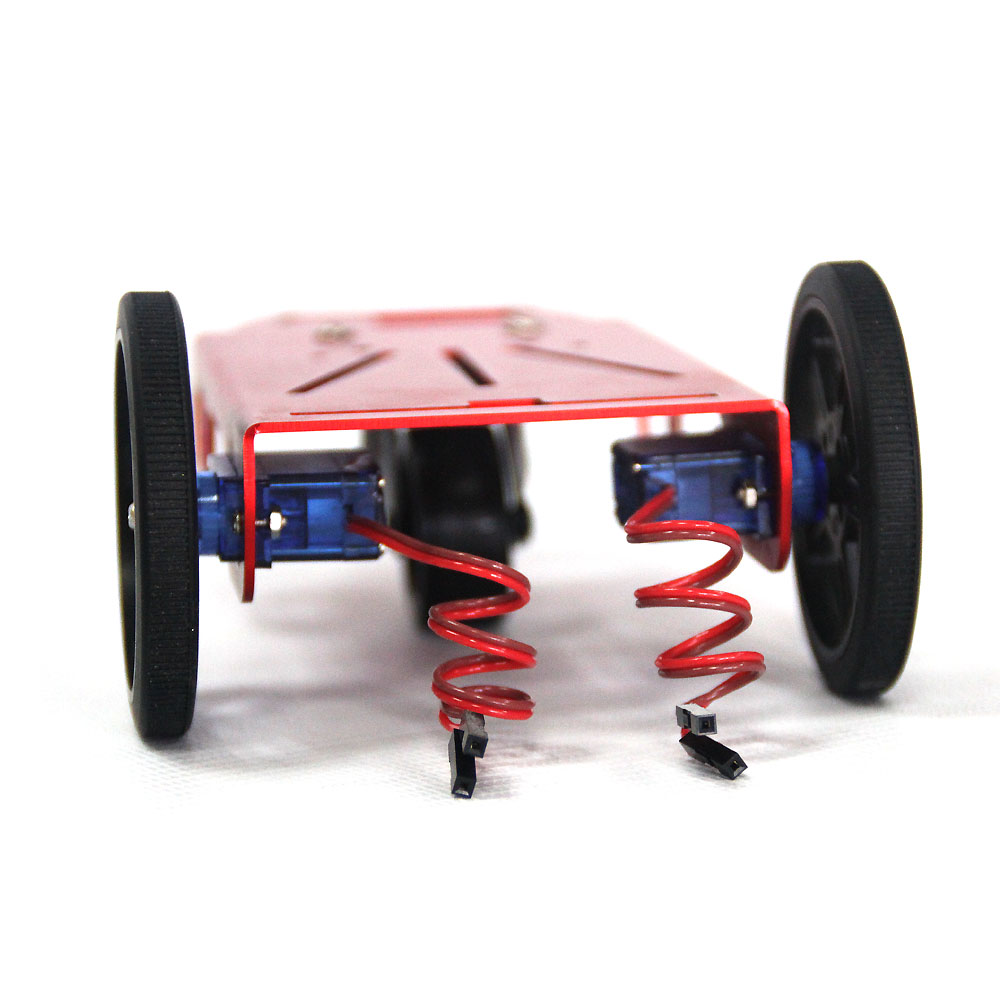

  • Mini Robot Mobile Platform uses 2 DC motor gear box to drive. The spec the same as FS90R - - High speed up to 100RPM, 1.3kg.cm at 800mA.
  • Two plastic wheels are press fit onto DC motor gear box output gear shaft, and easy to make a nice drive solution for small robots. The wheels have silicone tires and measure 60mm (2.36″) in diameter.
  • Can upgrade to 4WD version.
  • This Mini Robot Mobile Platform frame make with 5051 aluminum alloy and anodize color (The factory default is red. Can do other color if need. ).
  • Mini Robot Mobile Platform can compatible with Arduino controller.
  • Easy to add all kinds of sensor and let it to work at your idea.
  • This is a good start kit for student.

Specifications:

  • Size(L*W*H): 170mm*100mm*60mm
  • Weight: 138g
  • Drive: 2WD
  • Frame: 1.5mm aluminum alloy structure, light weight and high strength
  • Color: Red(other color if need)
  • Work voltage: 4.5~6V
