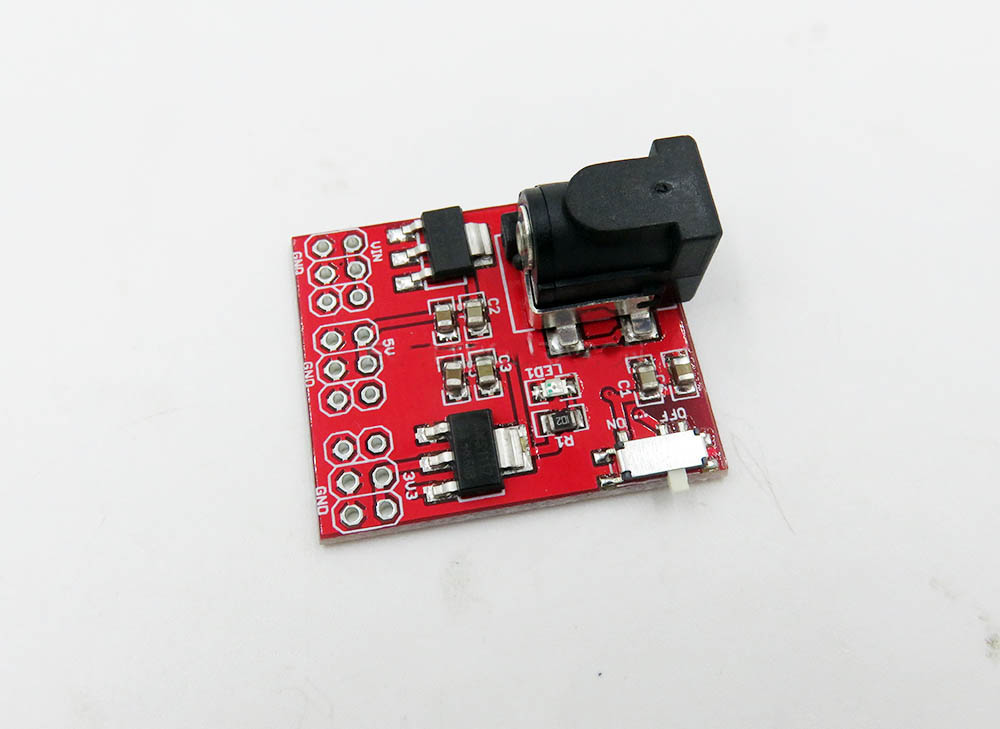

Mutiple Output DC Power Module 12/5/3.3V
Fuente de alimentación basada en el AMS1117, la cual provee de 3 salidas reguladas de: 3.3v, 5v, y 12v, brindando además una corriente de salida de 1A. Se alimenta con tensiones entre 6V – 12V DC. Por último posee un switch con indicador led de ON/OFF.
COD: TROOPM1095
Peso: 0.015 Kg
Disponibilidad: En Stock
ARS 4445.00
El producto no está disponible para la venta en este momento
Características
Description:
- One input: DC 6V – 12V (input voltage must be higher than the output voltage to 1V or more).
- Triple Output:
- 3.3V (+ – 0.05v error).
- 5.0V (+ – 0.05v error).
- 12V (12V input directly to output).
- About AMS1117 – peak current ~1A, need heatsink if long time use on high current.
- Specially designed two pin mounting holes, can be directly fixed to the tunnel plate to extend the experiment.
- Using multiple input and output pin, easy to use and connect. One side 12V, 5V, 3.3V, one side Gound.
- PCB board size: 4.5cm * 4.5cm.
- With power indicator light (red), has power on/off switch.

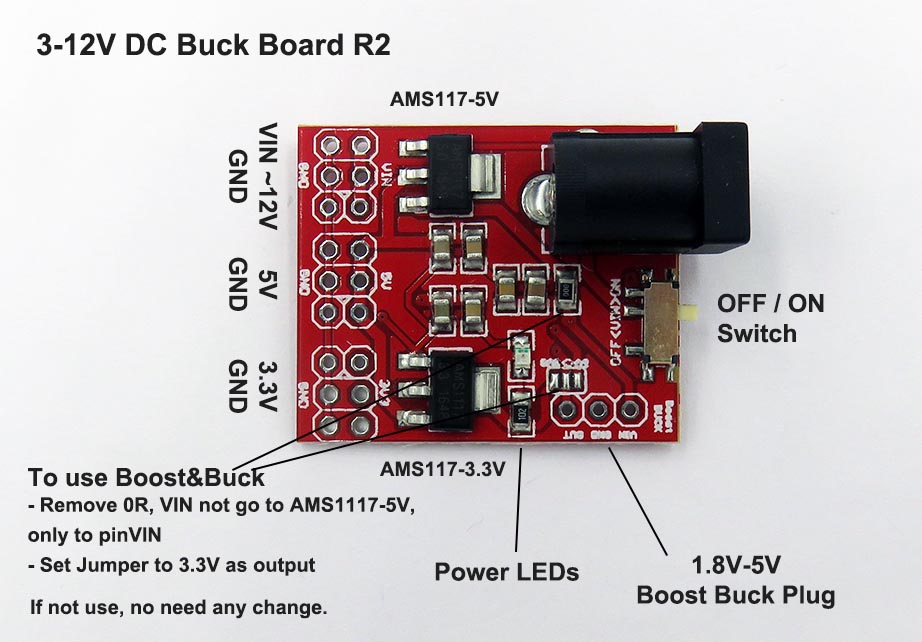

R2 Version:
- Add 0R resistor to disconnect from AMS1117-5V
- Add selectable jumper from pin out to 3.3V directly or 5V.
- ON/OFF Switch only control ON/OFF of DC 5.5mm barrel jack, not pin VIN.
datasheet (93 Kb)
