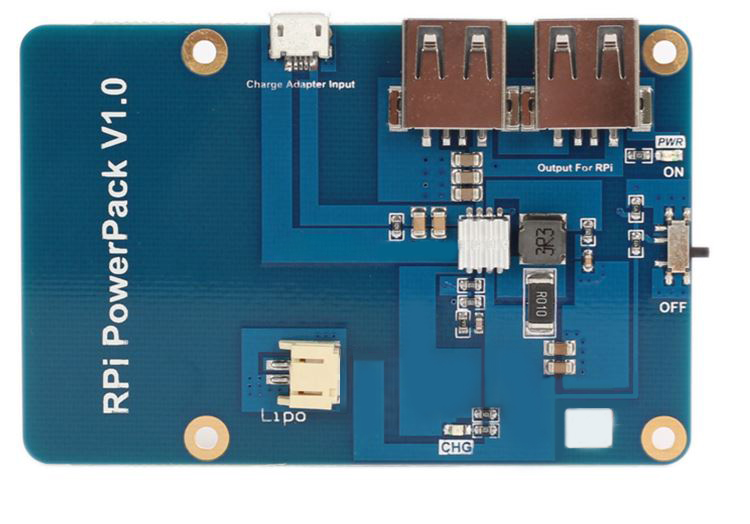

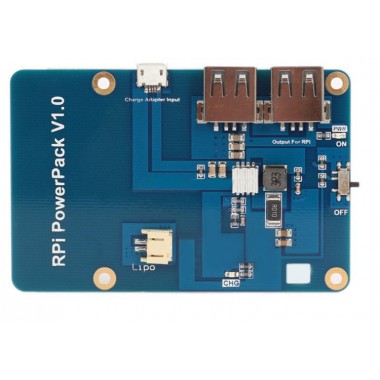

Raspberry Pi PowerPack Battery Extension Board

Principal

Placa de extensión que nos permite alimentar al Raspberry Pi a través de una batería de Litio (no incluida) y a su vez mantenerla cargada. Posee dos puertos USB, uno para alimentar la RPI y el restante se puede usar para alimentar un display LCD.

COD: TROMPC1064

Peso: 0.050 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 13315.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

  • The on board IC supports lithium charge and 5V boost management. For only supply RPI, it can supports up to 9 hours.
  • Not only for raspberry pi, onboard two USB-A port, a power supply board for Pi. The other USB can supply for LCD screen or any other equipment.
  • Weight only 80g.

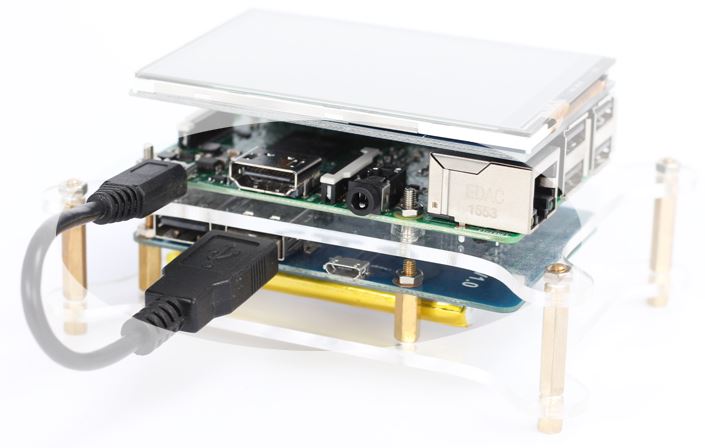

  • Only need few hexgon and screws can stack this board easily on raspberry pi, fully follow HAT design methods.
  • Version updated to 1.1, don’t have datasheet for this.

Purchase of this

  • NOT including lithium battery, a 3.7V 3800mah lithium battery is recommended. Battery Jack XH2.54.

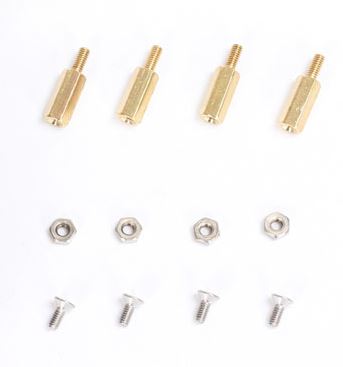

  • Inlcuding Hexgon spacing bar, screws and 10cm microusb cable.
  • Main Powerpack Board.

Parameters

  • Maximum discharge current: 1.8A @ 5.1V ± 0.1V
  • Standard charging current / voltage: 1.0A@5.0V
  • As the lithium battery is full voltage: 4.18V – 4.2V

CHG LED

  • ON: charger constant current charging.
  • Off: float charger until full as of lithium.

ON LED

  • ON: USB-A output 5V
  • Off: USB-A no output
