Traveling Nut for TR8x8(P2) Threaded Rods
Tuerca de rosca trapezoidal de 4 filetes, con paso efectivo de 8mm por vuelta, para varillas roscadas T8. Dispone de 4 orificios roscados para tornillos M3.
COD: P002688
Peso: 0.012 Kg
Disponibilidad: En Stock
ARS 12690.00
El producto no está disponible para la venta en este momento
Características
Description

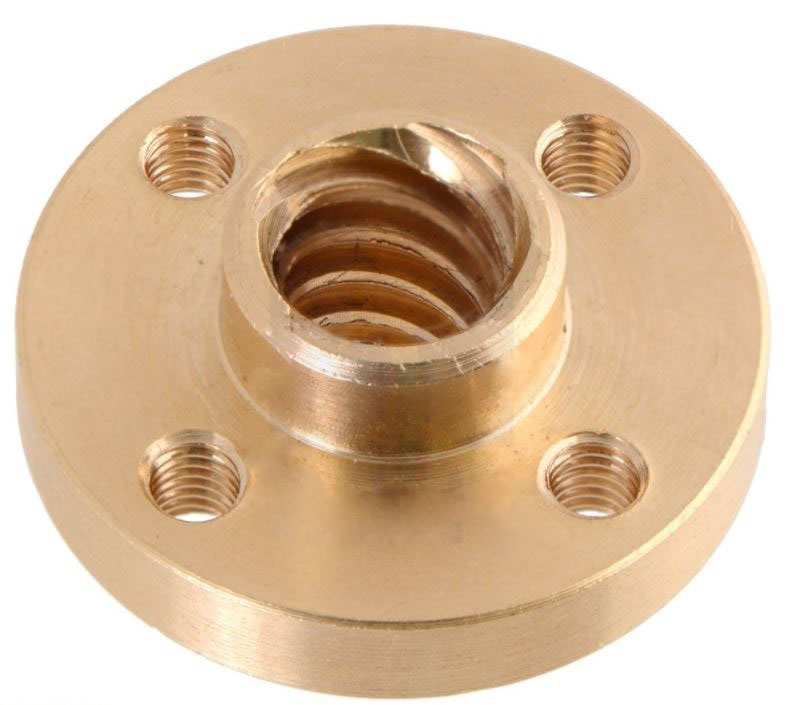

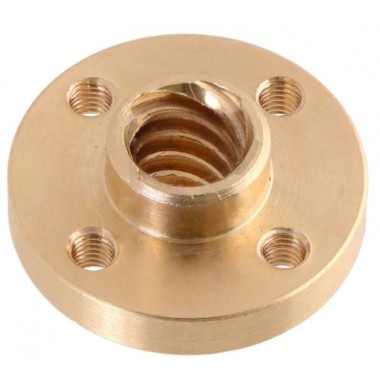

This copper alloy traveling nut (also known as a carriage nut) features a mounting flange with four holes threaded for M3 screws. It is intended for use with Tr8×8(P2)leadscrews, which are 8 mm-diameter rods with four independent trapezoidal threads spaced 2 mm apart. One full revolution of such a rod will result in a 8.0 mm linear displacement of the traveling nut.
Please note that the nut is not spring loaded, so changes in direction will result in loss of positioning precision due to backlash.
|
|

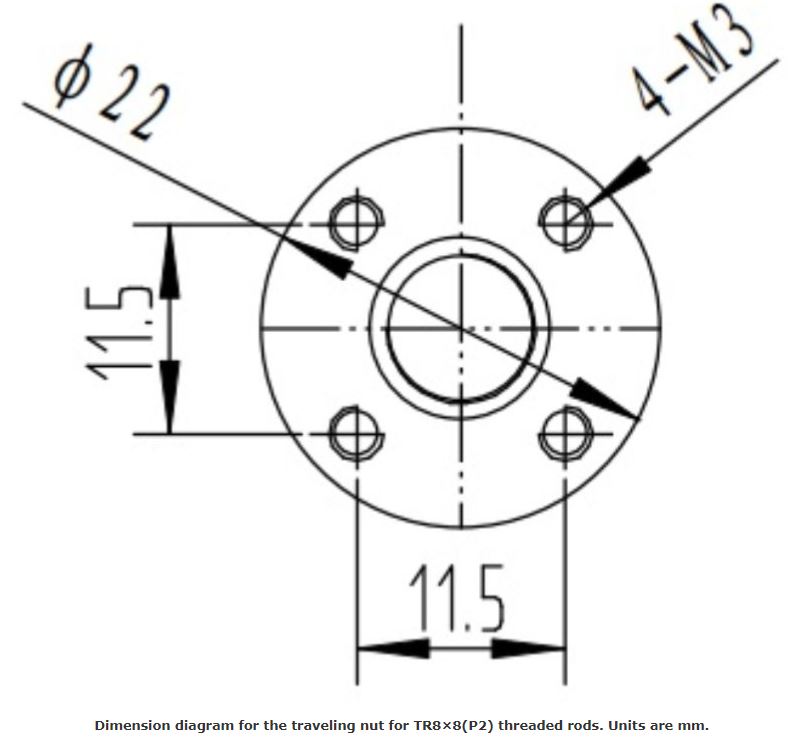

Dimensions for this nut are shown in the diagram below, Units are mm:
 |
