Motor de vibración sin eje

Motor de vibración sin eje

Motor de vibración con una amplitud de 0.75g

COD: P001638

Peso: 0.001 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 5596.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Overview

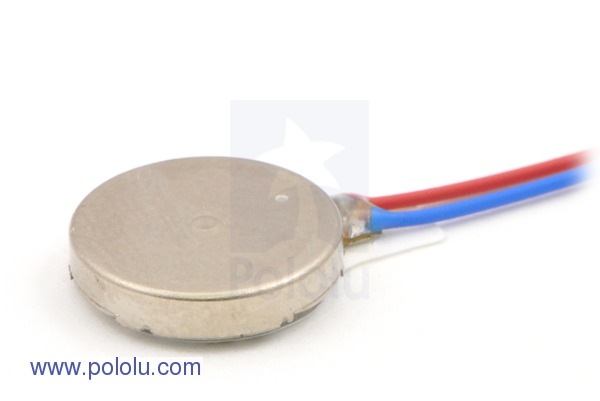

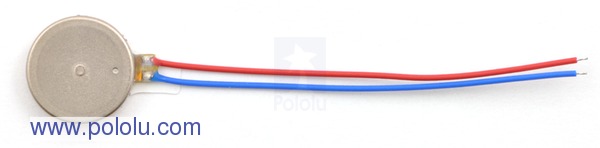

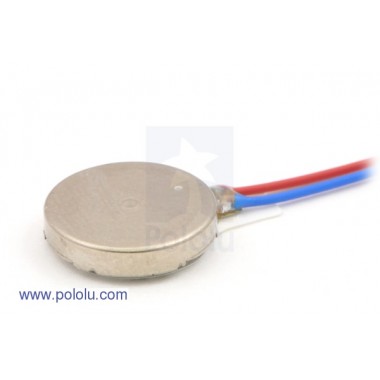

This shaftless vibration motor is fully-enclosed with no exposed moving parts. Its small size (10 mm diameter, 2.0 mm height) and shaftless design mean you can mount it on a PCB or even place it in a pocket to add quiet, haptic feedback to your project. The motor has a 3M adhesive backing on it for easy mounting and 1.5" leads for making quick connections. Polarity is not important; the motor can run CW or CCW.

Specifications

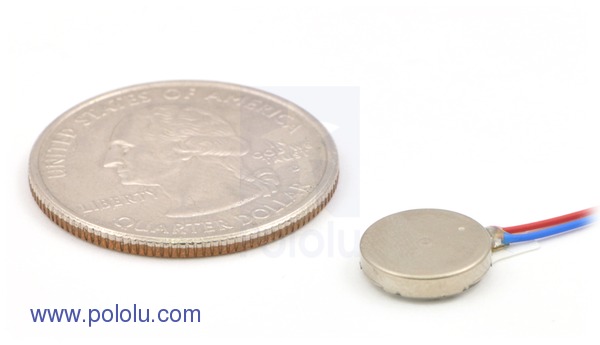

Size 10 mm diameter, 2.0 mm height
Weight 0.8 g
Recommended operating voltage 2.5 – 3.5 V
Vibration amplitude at 3 V 0.75g

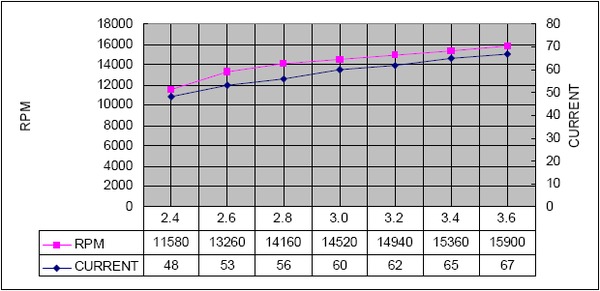

Speed at 3 V 14500 RPM (12000 RPM min)
Free-run current at 3 V 60 mA (80 mA max)
Startup current at 3 V 120 mA max
Motor resistance 29 ± 6 Ω
Operating temperature -10°C to +60°C
Storage temperature -30°C to +70°C

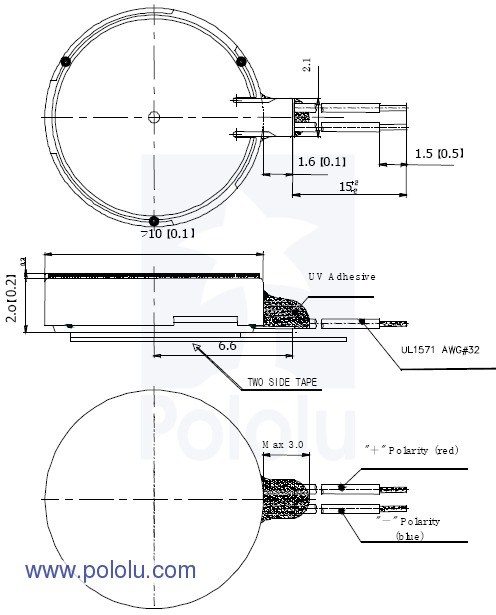

Dimensions

Size: 10.0 x 2.0 mm
Weight: 0.8 g

General specifications

Free-run speed @ 3V: 14500 rpm (12000 RPM minimum at 3 V.)
Free-run current @ 3V: 60 mA (80 mA maximum at 3 V.)
Voltage: 3 V (Recommended operating range is 2.5 to 3.5 V.)
Vibration amplitude: 0.75 g
