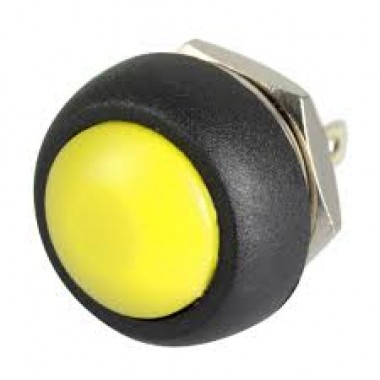

12 mm Electric Domed Head Momentary Push Button - YELLOW
Pulsador plástico de panel de tipo normal abierto color AMARILLO. De tipo momentáneo, al dejar de presionarlo vuelve a su posición original.
COD: HTHR0589YU
Peso: 0.020 Kg
Disponibilidad: Sin Stock
ARS 1689.00
El producto no está disponible para la venta en este momento
Características
Distinctive Features:
The Anti vandal switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.
- 1,000,000 cycles momentary
- Anti-Vandal IK09/ Sealed IP65
Functions:
NO Function (normal open).
Momentary: Means that when you push switch and then move your finger, the actuator will back to the original position.
|
Model |
V12-B-A |
|
|
Terminal Type |
Solder Terminals |
|
|
Switching |
No.1 |
|
|
Max. Switch Rating |
2A/48VDC |
|
|
Contact Resistance |
≤50mΩ |
|
|
Insulation Resistance |
≥1000mΩ |
|
|
Dielectric Strengh |
2000VAC |
|
|
Operation TEMP. |
-20°c ~ +55°c |
|
|
Mechanical Life |
1, 000, 000 cycles |
|
|
Electrical Life |
200, 000 cycles |
|
|
Contact Material |
Silver Alloy |
|
|
Panel Thickness |
1~6mm |
|
|
Torque |
5~14Nm |
|
|
Operation Pressure |
5N |
|
|
IP Degree |
IP65 |
|
|
Material |
||
|
Button |
PBT |
|
|
Body |
Zn-Al alloy |
|
|
Base |
PBT |
|
|
Head Color |
YELLOW |
|
