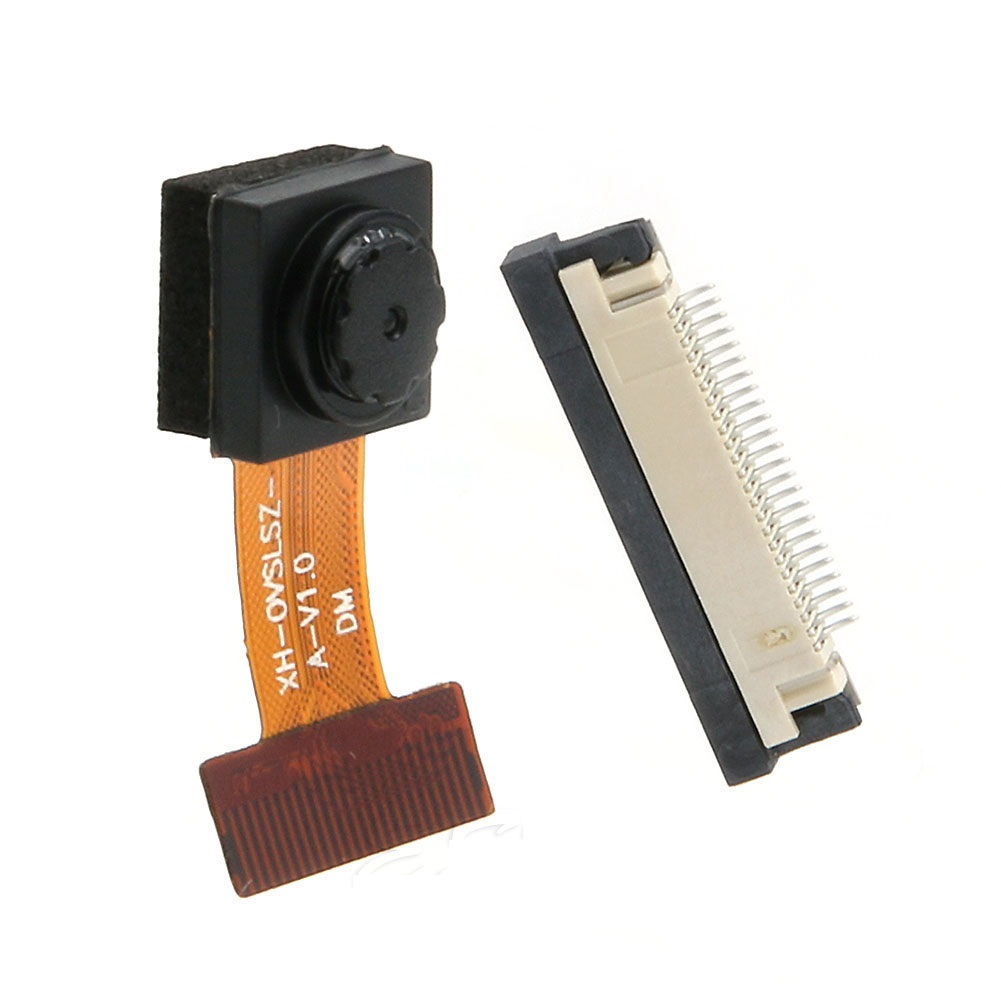

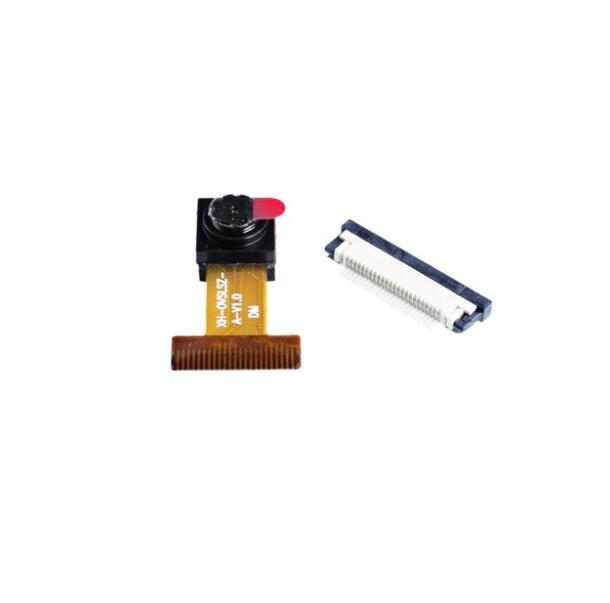

640 x 480 CMOS Camera Module OV7670 + 24 pin Socket
Mini Cámara integrada CMOS de 640 x 480 ( 0.3 megapixel). Incluye conector de 24 pines.
COD: HTHR0609
Peso: 0.003 Kg
Disponibilidad: En Stock
ARS 7631.00
El producto no está disponible para la venta en este momento
Características
Description:
This is a great camera module for DIY. This camera module comes with socket and easy for you to install.
Features:
- IO voltage: 2.5V-3.0V
- SNR: 46db
- DYN :52db300000 pixels
- pixel Size: 3.6 μm x 3.6 μm
- Dark current: 12 mV/s at 60ºC
- Photographic Array: 640 x 480
- Active power: 60mW/15fps VGA
- Optical Size: 1/6"
- Angel of view: 67 degrees
- Maximum Frame Rate:30fps VGA
- Sensitivity:.1.3V/(Lux-sec)
- Dormancy:< 20μA
- Working Temperature:--30ºC -70ºC
Package Included:
1 x 640 x 480 CMOS Camera Module
1 x socket(24pin)
1 x socket(24pin)
ov7670-omnivision_technologies.pdf (537 Kb)
