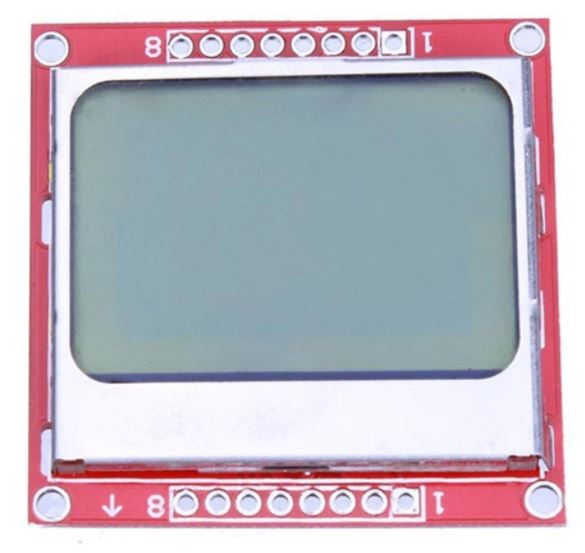

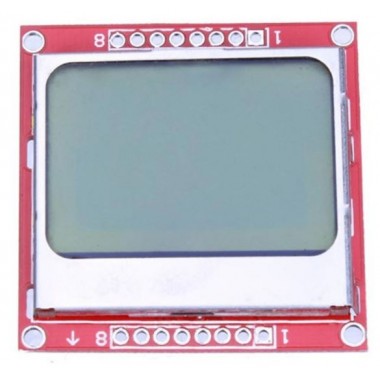

Nokia 5110 LCD display

Principal

Display LCD Nokia 5110. Viene con una tira de 8 pines para soldarle al display.

COD: HTHR0485

Peso: 0.020 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 8874.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

• LIGHT linked with GND, the backlight to be lit.

• Need you to compress the screen and PCB tighter, might got loose after the delivery.

• Use a 3.3V controller, otherwise the display could be quite vague.

• LCD5110 Module:

• Power supply voltage: 2.7V-3.3V,5V is OK,but part of the screen becomes black when tested

• Data interface level: 2.7-5V

• Backlight power supply voltage: highest 3.3V

• Module size: 43.6mm x 43.1mm(width X height)

• Installation diameter: 2mm

• Backlight: White



RST--------- reset
CE------------chip selection
DC-----------data/commands choice
DIN-----------serial data line
CLK------------serial Clock Spee
3.3V------------VCC
LIGHT--------- backlight control terminal
GND-----------power negative
