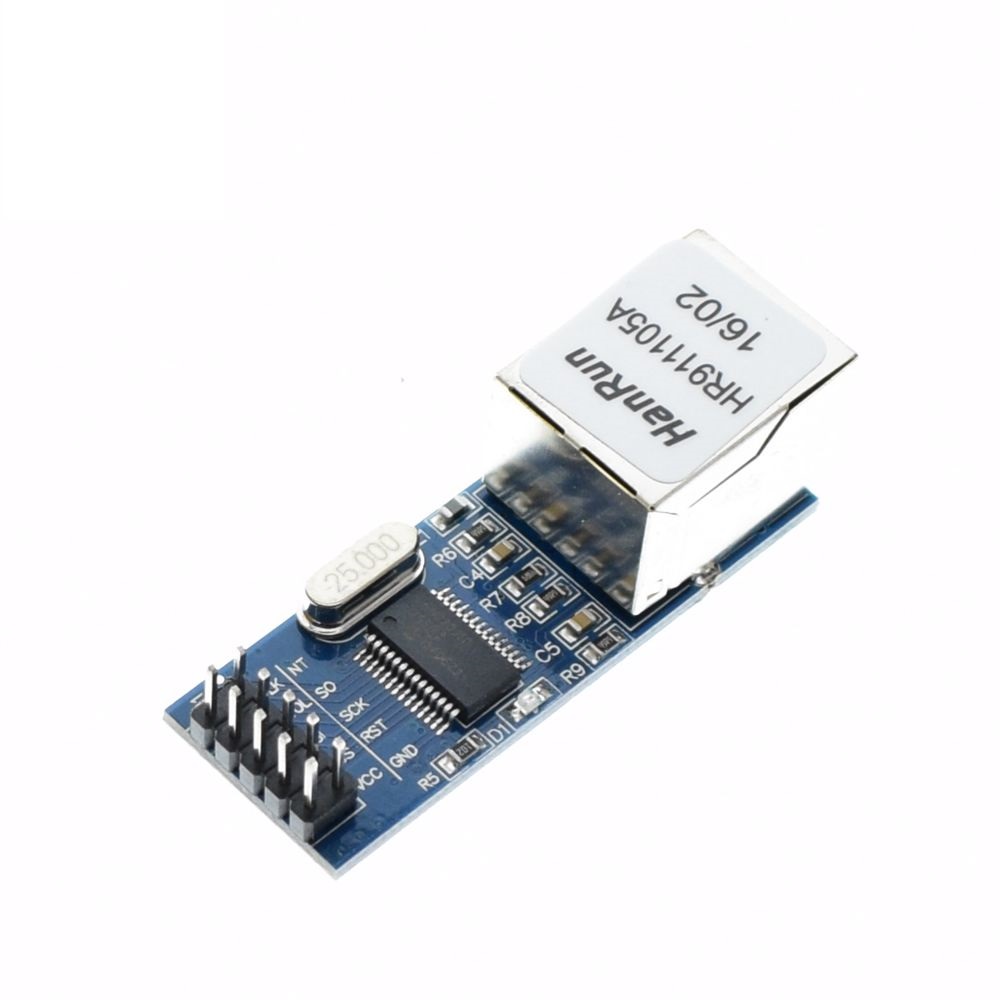

Mini ENC28J60 LAN Ethernet Module

mini ENC28J60 LAN Ethernet Network Board Module 25MHZ Crystal AVR 51 LPC 3.3V

Módulo Ethernet de pequeño tamaño. Dispone de interfaz SPI y se alimenta con 3.3v. Basado en el integrado ENC28J60. Compatible con Arduino. Ideal para proyectos de Internet de las cosas (IoT).

COD: HTHR0214-11

Peso: 0.012 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 16280.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

• IEEE 802.3 compatible Ethernet controller
• Integrated MAC and 10BASE-T PHY
• Receiver and collision squelch circuit
• Supports one 10BASE-T port with automatic
polarity detection and correction
• Supports Full and Half-Duplex modes
• Programmable automatic retransmit on collision
• Programmable padding and CRC generation
• Programmable automatic rejection of erroneous
packets
• SPI™ Interface with speeds up to 10 Mb/s
• Buffer: 8-Kbyte transmit/receive packet dual port SRAM
• Two programmable LED outputs for LINK, TX,
RX, collision and full/half-duplex status
• Seven interrupt sources with two interrupt pins
• 25 MHz clock
• Clock out pin with programmable prescaler
• Operating voltage range of 3.14V to 3.45V
• TTL level inputs
• Temperature range: -40°C to +85°C Industrial,
0°C to +70°C Commercial (SSOP only)
• 28-pin SPDIP, SSOP, SOIC, QFN packages



Dimensions:

 48.8x18.5mm
