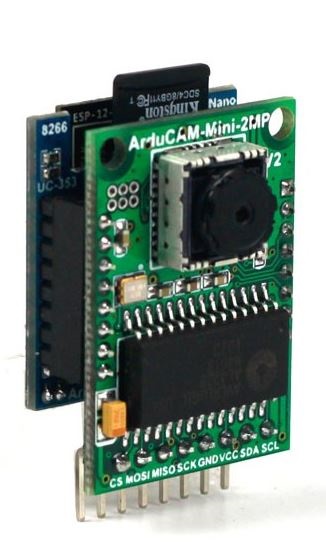

The evaluation kit is designed for low cost WIFI IoT camera based on ArduCAM-Mini-2MP-V2 and ArduCAM-ESP8266-Nano modules. User can implement a 2MP WIFI camera using HTTP or Websocket protocol on ESP8266, and the camera can be acted as an AP and mobile phone/PC can connect to the camera directly or acted as a Station which connected to the home router. The kit can take 2MP full resolution JPEG still image, but streaming low resolution low frame rate video due to the limitation of ESP8266. The kit can be USB powered or battery powered with buildin charging circuits. The kit can also be used separately, it is identical to an ArduCAM-Mini-2MP camera and a ESP8266 module.
Features:
- 2MP image sensor OV2640, support JPEG
- Standard FOV 60°stock lens
- I2C interface for the sensor configuration
- SPI interface for camera commands and data stream
- Onboard ES8266-12F module
- Build in Lithium battery recharging 3.7V/500mA max
- Build in SD/TF card socket
- Build in micro USB-Serial (CH340g) convertor
- Compatible with Arduino IDE
- Small form of factor
Getting Started ESP8266 with Arduino IDE:
- Installing with Boards Manager
- Using Arduino IDE
- Examples
Package including:

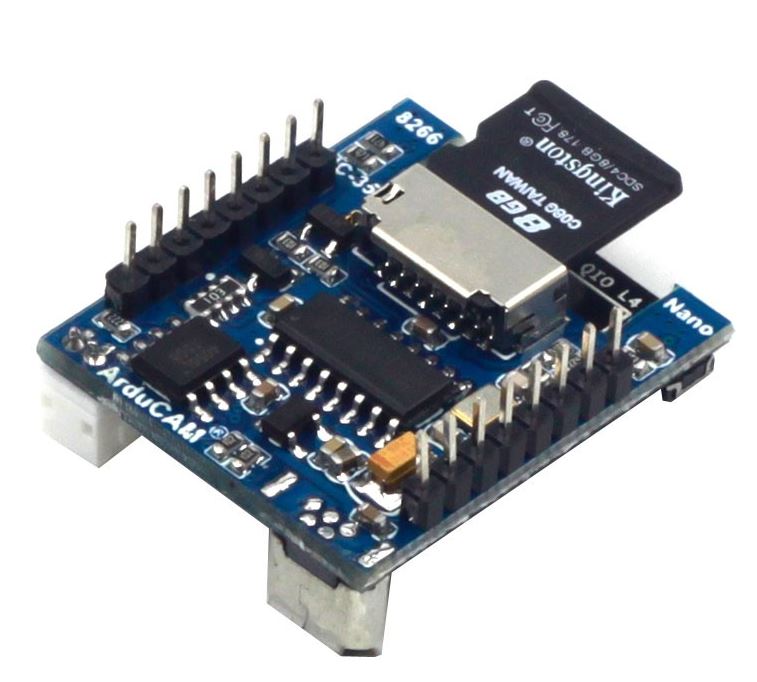

- 1pcs Arducam ESP8266 Nano Board

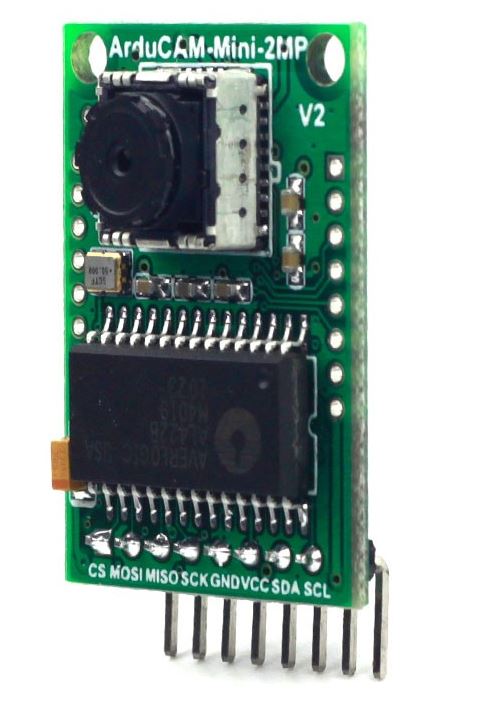

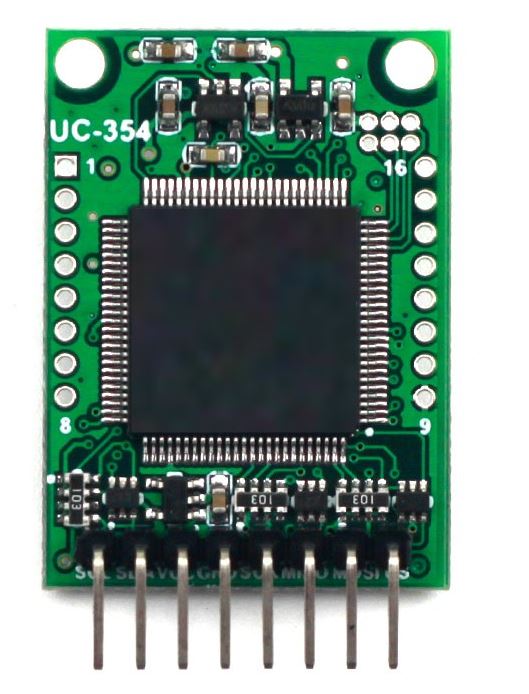

- 1pcs Arducam 2MP V2 Mini Camera Shield
- 1pcs cable
Note: the Battery and SD Card are not included in this package
