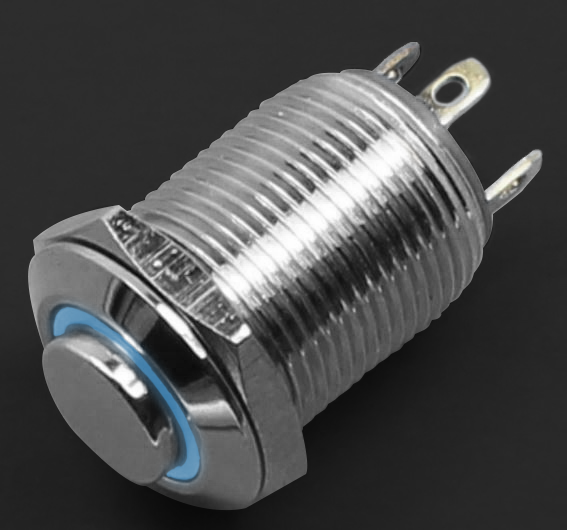

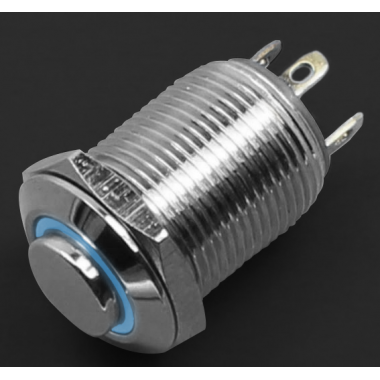

Ring Light Illuminated Push Button High - 12mm BLUE
Pulsador metálico (no plano) de tipo momentáneo, con iluminación led color AZUL y diámetro de rosca: 12 mm. Incluye tuerca y junta. Incluye resistencia limitadora externa de 180 ohms para alimentar el LED de 3 voltios. Para aplicaciones tal como elevadores, dispensadores de boletos, aplicaciones de tipo industrial, etc. Calificado como IP67 (nivel de resistencia al polvo y agua).
COD: DAGQ12H10EM-B
Peso: 0.007 Kg
Disponibilidad: En Stock
ARS 5956.00
El producto no está disponible para la venta en este momento
Características
Basic Info:
- Number of Switch: Single Control Switch
- Usage: Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch, ...
- Contact Type: Solder
- Panel Mounting Hole: 12mm
- Material: Stainless Steel/ Chrome Plated Brass
- LED Volt: 3V
- Specification: CE, ROHS, SGS, GMP
- Type: Momentary
- Structure: Power Built-in Type
- Kind: Single-pole on-off Switch
- Detection Method: Correlation Type
- Certification: ISO9001, UL, CE, CCC
- Function: off- Momentary on
- Switch Type: Waterproof Push Button Switch
- LED Color: Blue
- Contact Configulation: 1 No
- Performance: Spst
Specification:
|
Usage |
Extensive Use |
|
Type |
Push Button |
|
Rated Voltage |
36VAC |
|
Rated Current |
2A |
|
Protection Level |
IP67 |
|
Contact Type |
1NO |
|
Material |
Chrome plated Brass /Stainless steel |
|
LED Color |
Blue |
|
LED Volt |
3v |
|
Minimum Applicable Load |
5V AC/DC,1mA |
|
Contact Material |
Silver Plated |
|
Certificate |
CE,Rohs |
|
Terminal Style |
110" Solder/Quick Connect |
|
Operating Temperature |
-25°C ~+55°C |
|
Operating Humidity |
45%~85% RH |
|
Contact Resistance |
50mΩ max. |
|
Insulation Resistance |
100mΩ min. (500V DC megger ) |
|
Vibration Resistance |
10~55HZ, amplitude 1.2mm p-p |
|
Degree of Protection |
>10g |
|
Electrical Life |
100,000 operations min. (at full rated load) |
|
Mechanical Life |
Momentary:1,000,000 operations min. |
|
Dielectrical Life |
Switch Unit: 2,000VAC,1 minute between terminals of same pole; 1,000VAC,1minute between contact and lamp terminals. Illumination Unit:2,000VAC,1min. Between live part/ground |
|
Soldering Temperature |
20W/5 seconds or 260 °C/3 seconds |
