GQ16F-10EM elevator push button:
Productos

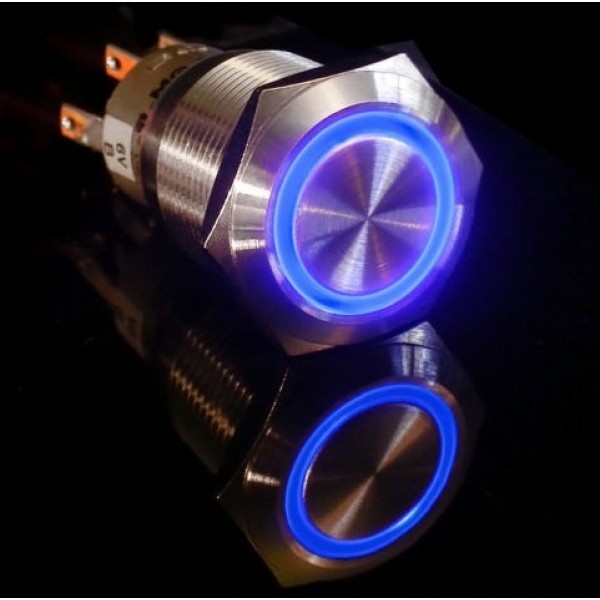

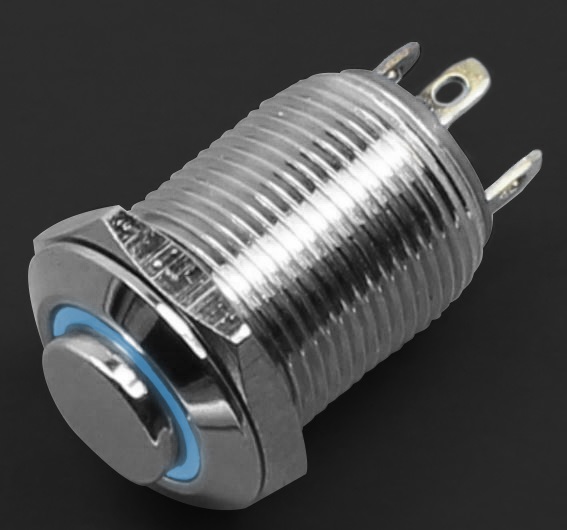

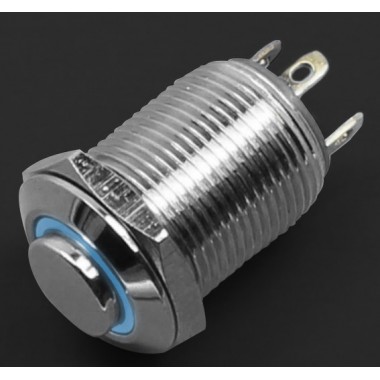

Ring Light Illuminated Push Button High - 16mm BLUE
Pulsador metálico de 5v (no plano) de tipo momentáneo, con LED indicador interno que ofrece buena luminación. Color del LED: Azul, diámetro de la rosca: 16 mm. Incluye tuerca y junta. Requiere resistencia limitadora externa para alimentar el LED (se incluye una de 180 ohms, para 5V).
COD: DAGQ16H10E-B
Peso: 0.050 Kg
Disponibilidad: En Stock
ARS 6105.00
El producto no está disponible para la venta en este momento
Características
Daier announces the anti-vandal switch series, it is most popular item in our push button switch series.
The elevator push button are RoHs certified, offering a rating of 3A 250VAC. The switch has even more features: it is IP67 rated and has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching).
It offers multiple color ring illumination options,and multiple voltage options. For LED, it offers one color, bi-color, tri-color options.
It comes with 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. panel cutout size and SPDT or DPDT function.
For the switch body shell, plastic and metal are available, it offers multiple color options including black, white, yellow, blue, green, red, nickel and stainless steel.
These anti-vandal pushbutton switches are popular for use in kiosk applications, ticket dispensers and industrial-type applications etc.
We can’t talk out their advantage in a few words, but they are more and more popular in the world.
Pls check the datasheet below:
| Rating: | 3A 250VAC | Contact Resistance: | 50mΩ max |
| Electrical Life: | 50,000 Cycles | Function: | momentary |
| Dielectric strength: | 2,000VAC 1 minute | Operating Temperature: | -25ºC~+85ºC |
| Insulation Resistance: | 1,000mΩ min | Panel cutout: | 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. |
| LED voltage: | 3V, 6V, 12V, 24V, 48V, 110V, 220V | Waterproof Grade: | IP40-IP67 |
| Contact Configuration: | Single Pole | OEM or ODM: | Available |
Datasheet (248 Kb)
