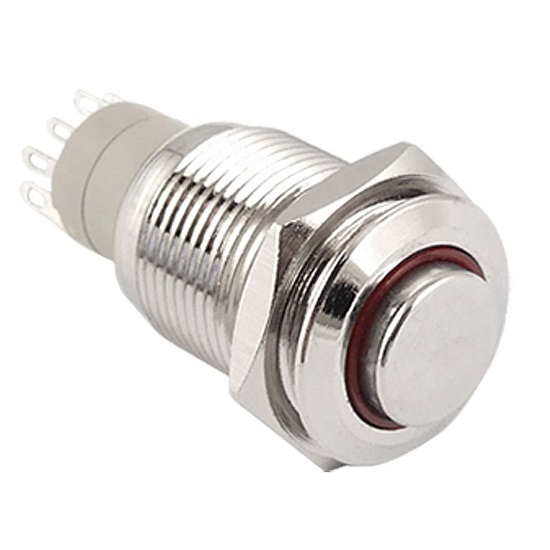

Ring Light Illuminated Push Button - 16mm RED

Ring Light Illuminated Push Button - 16mm RED

Pulsador metálico de 5v (no plano) de tipo momentáneo, con LED indicador interno de buena luminación. Color del LED: Rojo, diámetro de la rosca: 16 mm. Incluye tuerca y junta. Requiere resistencia limitadora externa para alimentar el LED (se incluye una de 180 ohms, para 5V).

COD: DAGQ16H10E-R

Peso: 0.015 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 6105.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

GQ16F-10EM elevator push button:

Daier announces the anti-vandal switch series, it is most popular item in our push button switch series.

The elevator push button are RoHs certified, offering a rating of 3A 250VAC. The switch has even more features: it is IP67 rated and has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching).

It offers multiple color ring illumination options,and multiple voltage options. For LED, it offers one color, bi-color, tri-color options.

It comes with 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. panel cutout size and SPDT or DPDT function.

For the switch body shell, plastic and metal are available, it offers multiple color options including black, white, yellow, blue, green, red, nickel and stainless steel.

These anti-vandal pushbutton switches are popular for use in kiosk applications, ticket dispensers and industrial-type applications etc.

We can’t talk out their advantage in a few words, but they are more and more popular in the world.





Pls check the datasheet below:



Rating: 3A 250VAC Contact Resistance: 50mΩ max
Electrical Life: 50,000 Cycles Function: momentary
Dielectric strength: 2,000VAC 1 minute Operating Temperature: -25�??~+85�??
Insulation Resistance: 1,000mΩ min Panel cutout: 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc.
LED voltage: 3V, 6V, 12V, 24V, 48V, 110V, 220V Waterproof Grade: IP40-IP67
 Contact Configuration:  Single Pole OEM or ODM: Available
