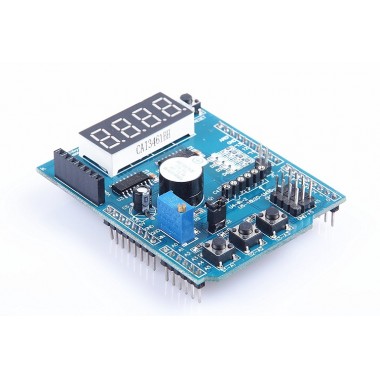

Arduino MISC Basic Extension Shield

Principal

Shield de expansión experimental para Arduino; cuenta con botones, display de segmentos de 4 dígitos, leds indicadores, potenciometro e interfaces preparadas para otros integrados como el LM35. Ideal para aprender aprender a programar Arduino con una placa que tiene varios componentes ya incluidos

COD: TRODAS1075

Peso: 0.100 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 16012.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

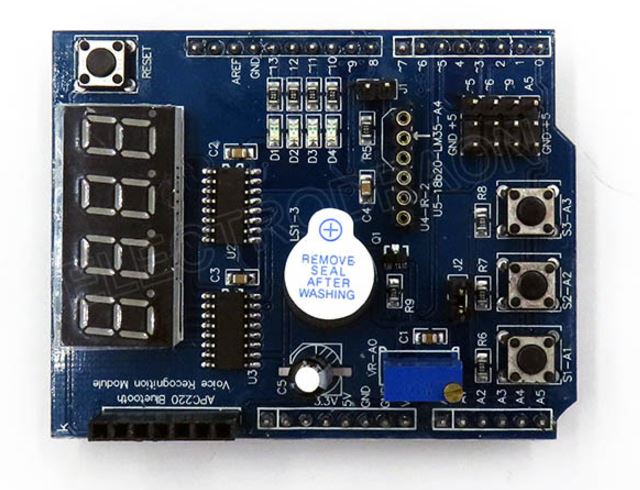

  • Seamless docking UNO development board
  • 4 LED indicators (LED indicator are very important for projects, with this indicator can be directly used to indicate the working status of the program to facilitate the program debugging.
  • U5 – DS18B20 / LM35 temperature sensor interface, you can do the temperature measurement experiment.
  • 3296 precision adjustable potentiometer, to provide analog port input (can be used to control the LED brightness, rotating steering gear angle, digital voltage, etc.)
  • U4 – Infrared integrated receiver, can be suitable for any infrared remote control experiment.
  • Four digital segment display (using 74HC595 drive province IO learning SPI), you can do digital tube display experiment (can display temperature, voltage, count, etc.).
  • Three independent buttons, a reset button, you can do key experiment (man-machine interface).
  • Buzzer can be used for sound experiment (can alarm, pronunciation, etc.)
  • Serial interface: Bluetooth, wireless interface, voice module, voice recognition module, can be used for wireless communication experiments
  • Servo gear interface, easy to drive the steering gear
  • Infrared detection interface.

Useful Links(Example codes)

https://github.com/Edragon/Arduino_sketch/tree/master/MISC%20board%20demo%20code
