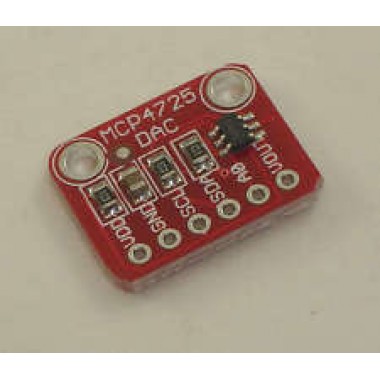

MCP4725 DAC Breakout Board, 12bit IIC
Conversor digital-analógico de 12 bits de resolución, basado en el MCP4725, con interfaz I2C y que incluye memoria EEPROM para guardar configuraciones.
COD: TROMSP1050
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 11962.00
El producto no está disponible para la venta en este momento
Características
Description
Convert digital value to analog, output on VOUT pin, great for analog or audio project which require sine wave or adjustable bias.
- On board selectable IIC address pin.
- 12-bit resolution
- I2C Interface (Standard, Fast, and High-Speed supported). High speed IIC update mode allow you update VOUT value up to 200 KHz.
- Rail-to-rail to output, and proportional to the power pin voltage.
- On board EEPROM can store the setup value and settings.
- Small package SOT23-6
- 2.7V to 5.5V supply
