WROOM-02 Module, ESP8266 WIFI

Principal

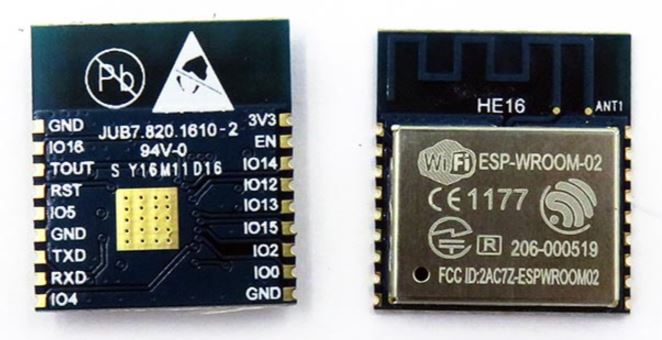

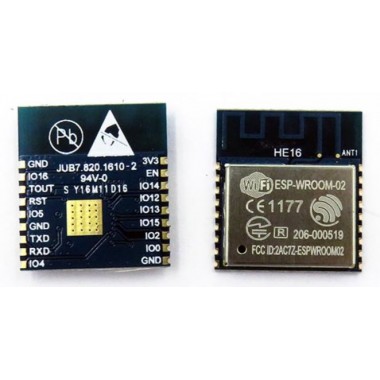

Módulo ESP-WROOM-02 basado en el popular chip ESP8266, ideal para proyectos de IoT (Internet of Things). Posee interfaz HSPI/UART/I2C/I2S, conversor analógico-digital y puertos de entrada/salida generales.

COD: TRONWI1112

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 7259.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

  • ESP-WROOM-02 is a low-power 32-bit MCU Wi-Fi module, based on the ESP8266 chip. TCP/IP network stacks, 10-bit ADC, and HSPI/UART/PWM/I2C/I2S interfaces are all embedded in this module.
  • ESP-WROOM-S2 uses a 2 MB SPI flash connected to HSPI, working as the SDIO/SPI slave with the SPI speed of up to 8 Mbps.
  • ESP8266 Module can be easily integrated into space-limited devices, due to its small size of only 18mm x 20mm (ESP-WROOM-02) / 16 mm x 23 mm (ESP-WROOM-S2).
  • Reliable and most certificate:
    • Wi-Fi Alliance, SRRC, FCC, CE, TELEC, IC & KCC Certified
    • RoHS, Halogen Free, REACH & CFSI Compliant
    • HTOL, ESD-HM, MSL, μHAST, HTSL
    • Output Power: +22dBm peak power in FCC certification
  • ESP8266 Module can operate in low-power connectivity mode; for instance, if it operates in DTIM10, it only consumes 1.2mW while maintaining a Wi-Fi connection. The module also integrates an SPI flash of 16 Mbits used for storing user programs, data and firmware.
  • Documentation. Espressif product page. Datasheet and design guildelines  Our esp8266 wiki page.
