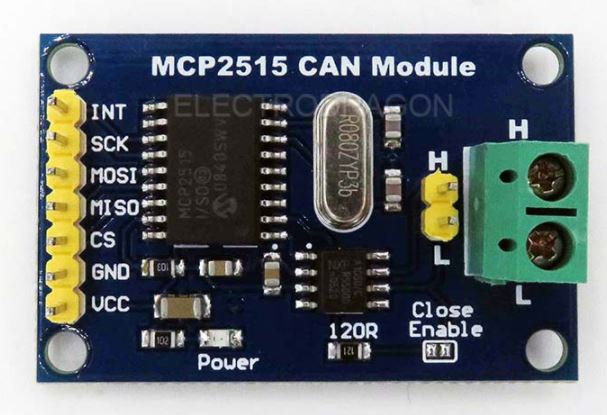

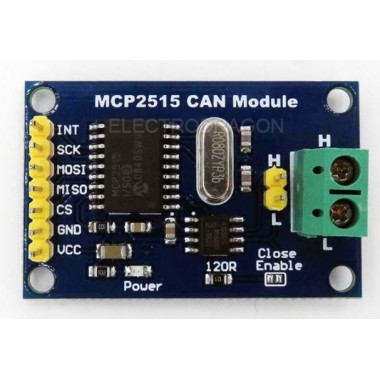

MCP2515 CAN Bus Transceiver Breakout Board SPI
Módulo breakout de CAN basado en el MCP2515 que posee interfaz SPI
COD: TROMSP1032
Peso: 0.050 Kg
Disponibilidad: Sin Stock
ARS 13184.00
El producto no está disponible para la venta en este momento
Características
Product Description
- Support CAN V2.0B specifcation, the communication speed 1Mb / S
- 0 to 8 bytes of data fields
- Standard frame, expanding the frame and remote frame
- 5V DC power supply module, SPI interface protocol control
- 120 ohm termination resistors. Impedance matching, ensure drive capability, long-distance data transmission to prevent signal radiation
- Module Size: 4.4cm x 2.8cm screw holes center to center spacing 23mm x 38mm
-
Current:
- typ. 5mA
- 1 mA standby current. Except the power indicator.
- Operating temperature: Industrial grade to -40 ºC to +85 ºC

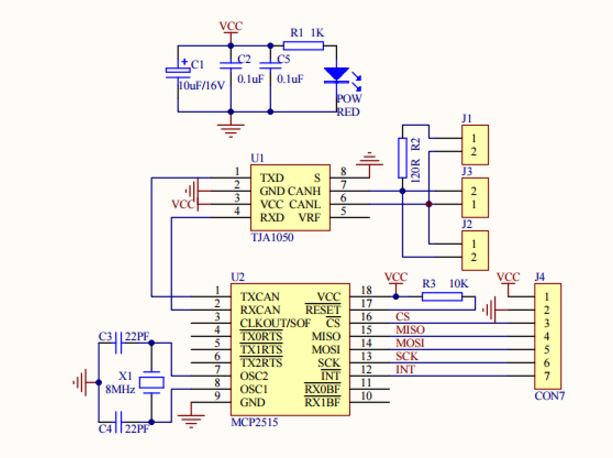

- On Board MCP2515 and TJA1050 (Replace and compatible with MCP2551)
mcp2515_hd.pdf (1042 Kb)
can.zip (11 Kb)
