12864min Graphic LCD

Principal

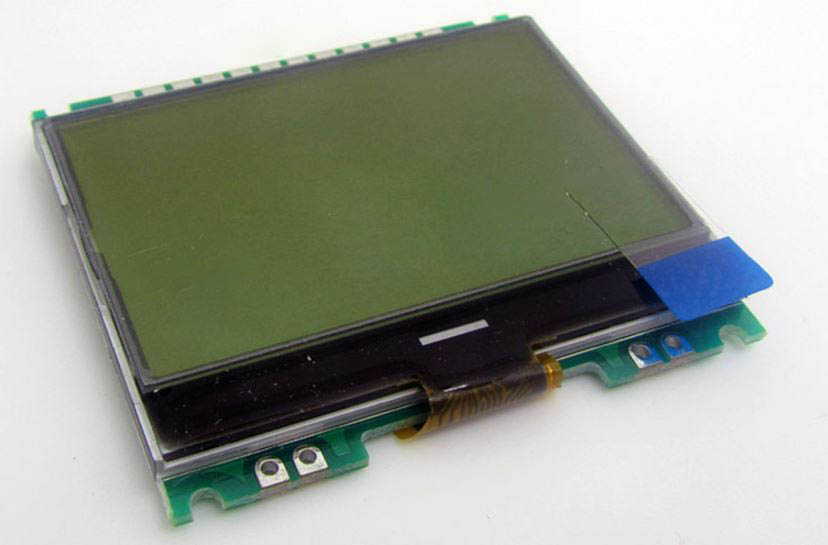

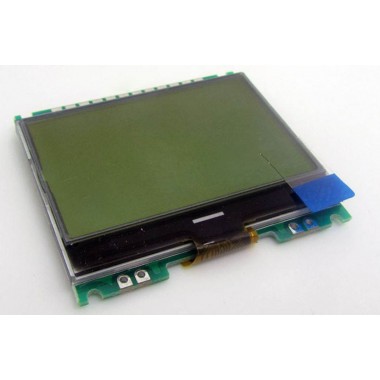

Display LCD de 128x64; interfaz SPI de 4 cables

COD: TROILC1007

Peso: 0.100 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 19854.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

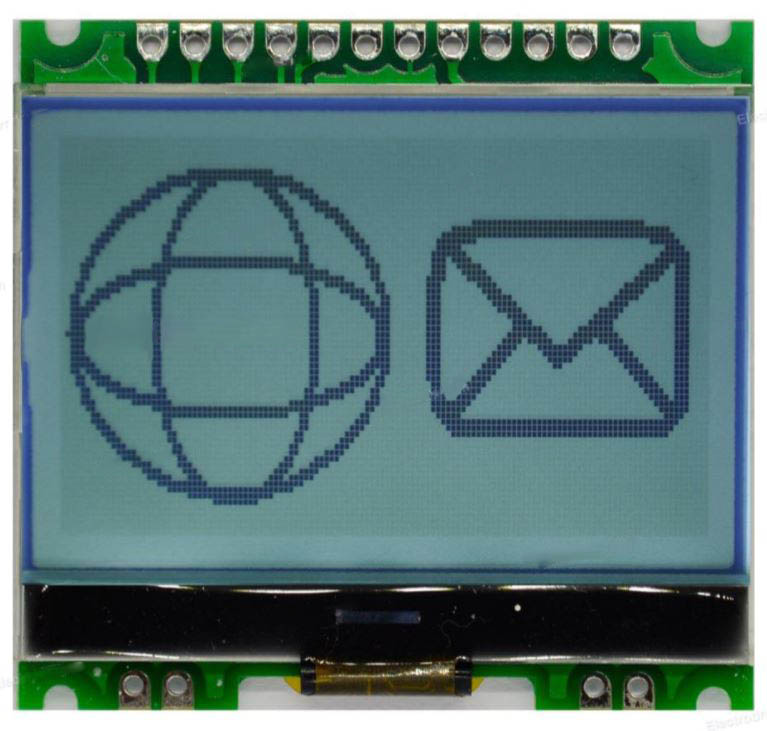

  • A mono color graphic LCD, 128*64 dots
  • Very compact size: 43.5 *40.9mm, slim too (2.3mm thickness totally), compare to regular 12864 LCD it is very small size.

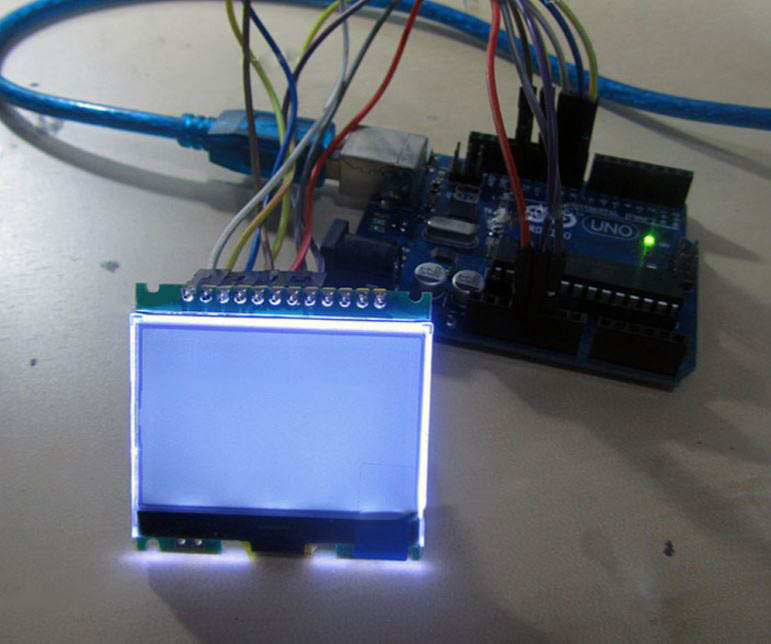

  • Use UC 1701X LCD controller, fully supported by arduino or other MCUs, see the demo on attached pictures.

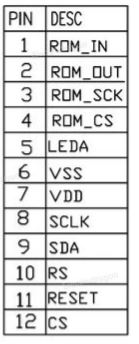

  • Simple interface 4 wires SPI
  • Low power consumption, 3V3 * 45mA
  • Low price for your project.
  • Default power supply is 5V
  • To Change to 3V3 power supply, remove the U1 IC LD1117, add 20ohm on R2, add 0ohm on R1.



See more documentation on this page
