12-24V Step-down Buck 5V Module

Principal

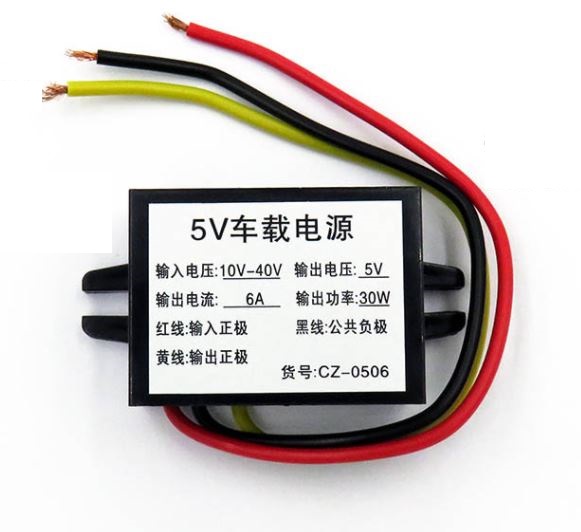

Fuente Step Down de entrada 12-24V y salida 5V. Potencia nominal 30W, corriente nominal 6A. Gabinete sellado.

COD: TROOPM1130

Peso: 0.100 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 22459.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

Great for car devices, ready to use with case.

Features:

  • Fully sealed module, well protected
  • Output voltage 5V
  • Input voltage 10V-40V (for 12V to 5V, 24V to 5V)

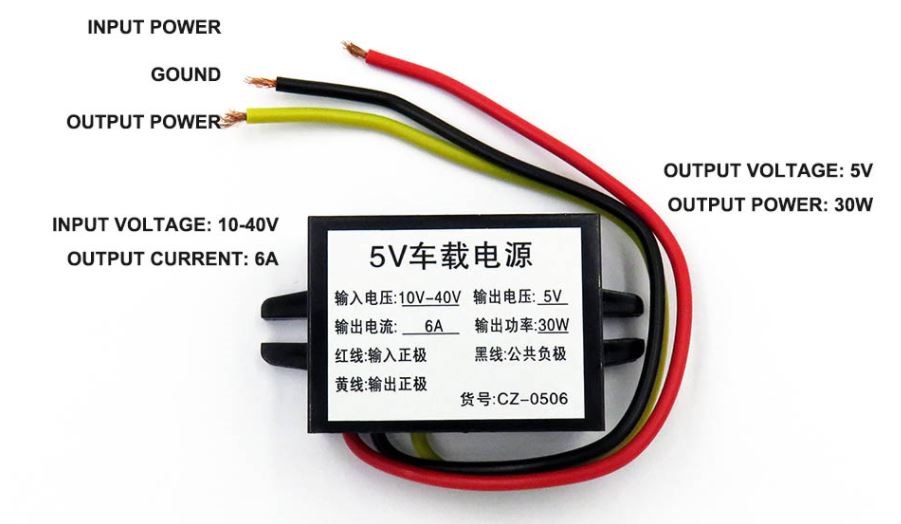

  • Red line – input positive +
  • Yellow Line – Output positive +
  • Black line – common negative –
  • Rated continuous output current 6A, maxmium up to 8A, peak current at 10A
  • Synchronous rectification technology, the conversion rate of more than 96%, very low heat
  • Epoxy resin irrigation, waterproof, earthquake, moisture, dust, flame retardant
  • Short circuit protection, over-current protection, automatic recovery after troubleshooting
  • 47MM * 34MM * 22MM size specifications, weighing about 70 grams

Specification:

  • Modular nature: Non-isolated buck module (BUCK)
  • Rectification: Synchronous rectification
  • Minimum differential voltage: 5V
  • Conversion efficiency: up to 96%
  • Output ripple: 50mV (MAX)
  • Operating temperature: industrial (-20 ℃ to +85 ℃) (ambient temperature of more than 40 degrees, please
  • reduce the power to use, or strengthen the heat)
  • Load regulation: ± 1%
  • Voltage regulation: ± 2%
  • Short circuit protection: reusable, self-healing.
  • Input Reverse Protection: None, if necessary, enter the series diode

Application:

Bus, electric car, LED, car navigation, car radio, walkie-talkie and monitoring system, the car, the car, the car, the car, the car, Wait.

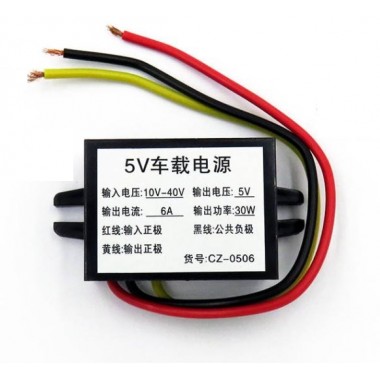

Galería de Imágenes
