Altera CPLD EPM570 Dev. Board

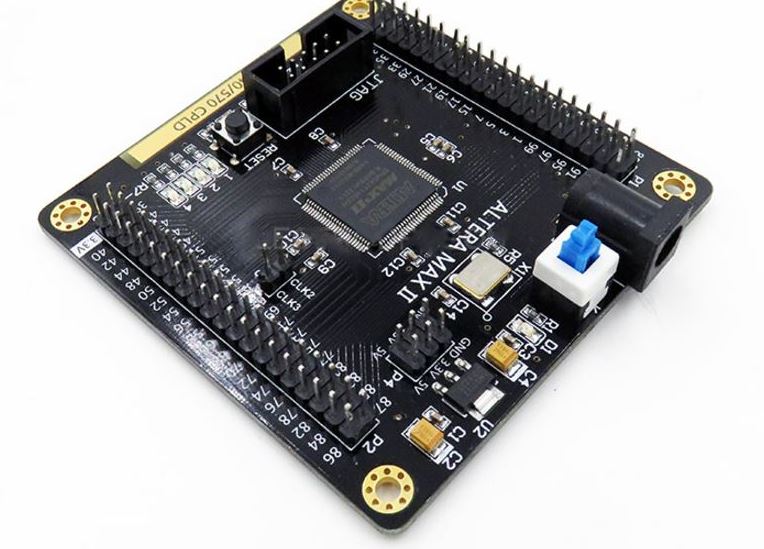

Placa de desarrollo para aprender a programar CPLD(Dispositivos logicos programables complejos), verilog y VHDL, basada en el EPM570T100CN.
COD: TRODODS044
Peso: 0.100 Kg
Disponibilidad: Sin Stock
ARS 47463.00
El producto no está disponible para la venta en este momento
Características
Product Description
Features:
- A very price-effective board for learning CPLD, verilog and VHDL language.
- On Board Chip EPM570T100CN.
- Package include high quality 5V/2A power plug (220V), 2 meters cable
- Package include 3mm acrylic transparent cover, in order to against ESD short, self installation.
- Black and ENIG board technique, machine soldering, very well quality
- All the pins are lead out (2*20-2.54mm pitch) and marked, very easy to find and use.
- 50mhz main working crystal, backup crystal can be soldered on the back of the board to use.
- Use AMS117-3v3 to supply the operational volt, use plenty of filter capacitors for filtering design.
On Board Resource:
- 5V DC power plug
- Red status LED indicating power
- Self-lock power switch
- A system reset switch, can also be used as an input switch
- (Note some relevant genius software you will need to find by yourself)
Advices:
- Do not plug the JTAG with power, this will damage the board
- Burned program blink LED on factory setting, when you power the board, the series LED will blink
- Board support both EPM240T100C5N and EPM570T100C5N
- For EPM570T100C5N: Pin 37, 90 must connect to GND; pin 39, 88 must connect 3.3V. There four jumpers on the board, please do not remove
Package includes:
- Altera EPM570 board
- 5V/2A power plug
- Acrylic cover and screws
max2_mii5v1.pdf (2740 Kb)
cpld_demo_code_led_water_570_.zip (274 Kb)
