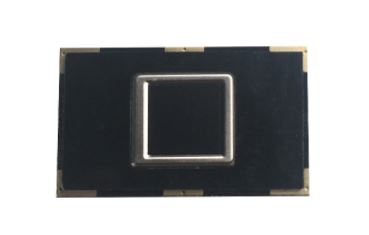

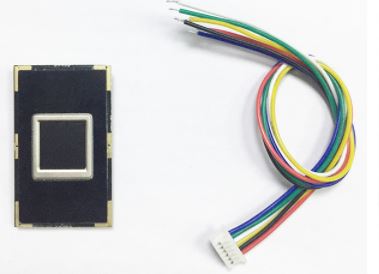

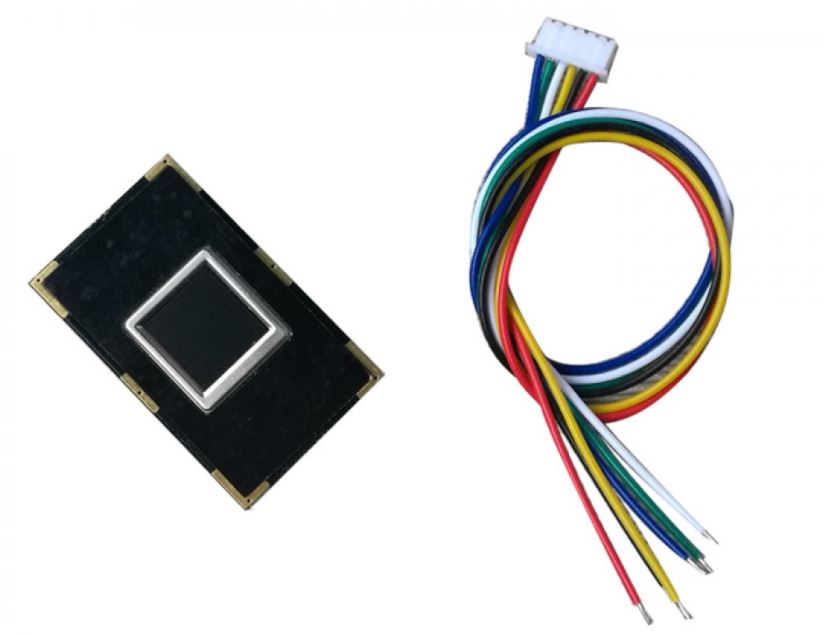

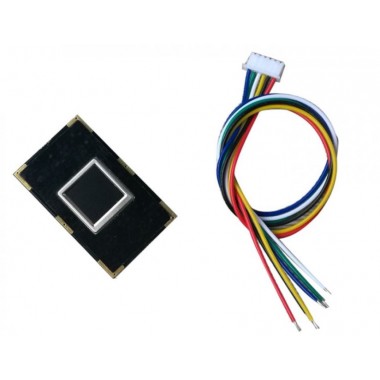

R301T fingerprint sensor module

Principal 2

Módulo sensor de huellas digitales basado en el R301T, ideal para proyectos que requieran identificación biométrica.

COD: GRR301T

Peso: 0.100 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 44733.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Introduction

R301T which added fingerprint touch function.

Integrated image collecting and algorithm chip together, ALL-in-One; the flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate.

The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box

 You can dowload R301T user manual from the following website:

Link to manuals and other data:

Link to a library that can be used in this  product with Arduino

 Specification:

  • fingerprint reader R301T(semiconductor)
  • Interface: USB   and  RS232 (TTL)
  • Communications baud rate (UART): (9600 × N) bps where N = 1 ~ 12 (default N = 6, ie 57600bps)
  • Fingerprint reader module size: 33.4 * 20.4 (mm)
  • Effective collection area: 10 * 10 (mm)
  • ScanningSpeed < 0.2 second
  • Verification Speed < 0.3 second
  • Matching Method: 1:1; 1:N
  • Resolution 508 DPI
  • Voltage :DC 4.2-6.0V
  • FRR (False Rejection Ratio):  ≤0.01%
  • FAR (False Acceptance Ratio): ≤0.0001%
  • Fingerprint capacity:1700(Default)
  • Antistatic capacity: 15KV
  • Abrasive resistance intensity: 1 million times
  • Peak power consumption: 60 mA
  • Work environment: -25°C ---50°C
  • Work Humidity: 0-90%

 R301T Cheap Price of Fingerprint Sensor With Free SDK MOQ 100pcs

R301T Cheap Price of Fingerprint Sensor With Free SDK MOQ 100pcs



R301T Cheap Price of Fingerprint Sensor With Free SDK MOQ 100pcs

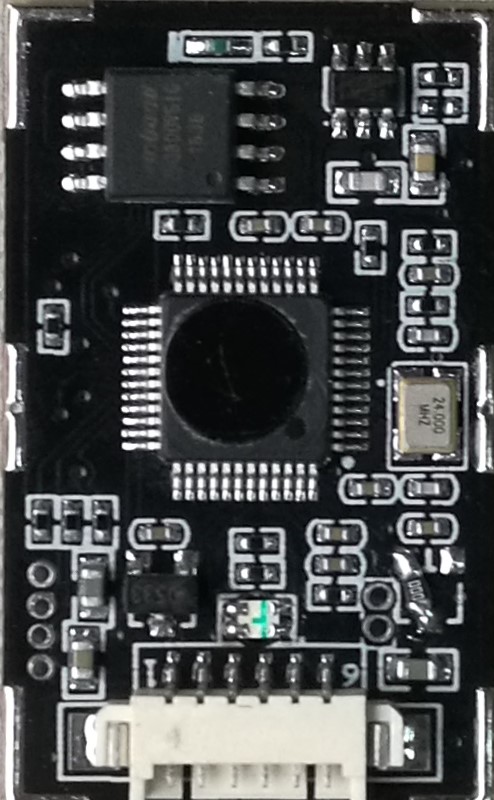

R301T fingerprint module circuit board diagram

 R301T Cheap Price of Fingerprint Sensor With Free SDK MOQ 100pcs



3.3VDC power may be selected to supply when connecting the pin 2 and pin 3.

Caution: Operating carefully, and R301 will be damaged when wong connection.





R301T Cheap Price of Fingerprint Sensor With Free SDK MOQ 100pcs
