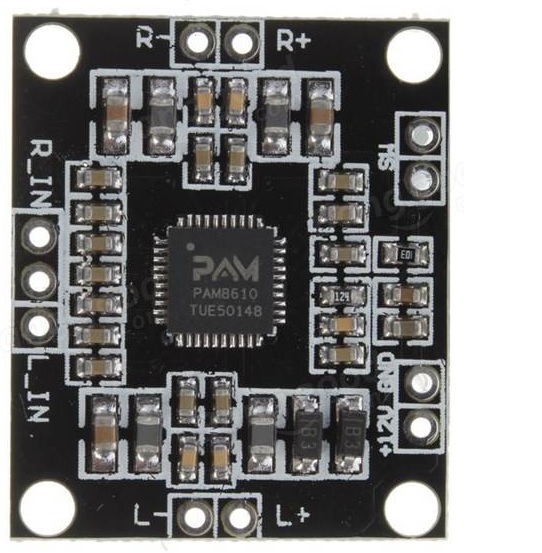

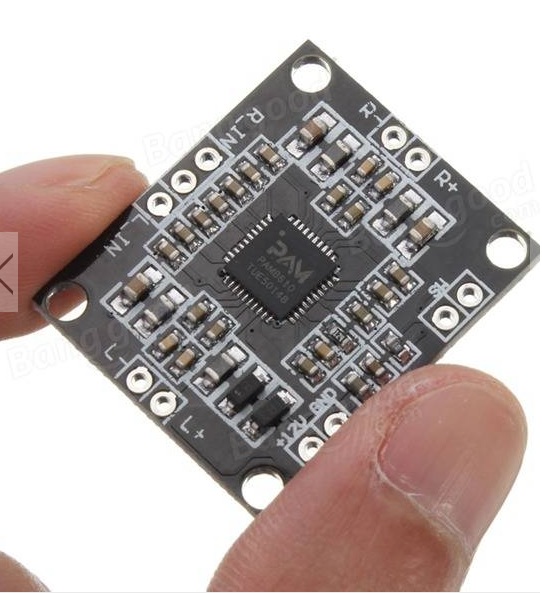

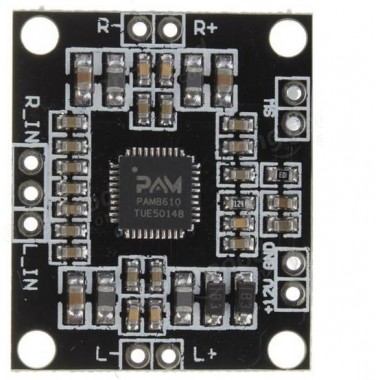

PAM8610 Digital Amplifier Board 2x15W Two Channel Stereo Class D
Amplificador digital de audio (clase D) de dos canales 2 x 15W. Basado en el PAM8610.
COD: HTHR0214-99A
Peso: 0.003 Kg
Disponibilidad: En Stock
ARS 4076.00
El producto no está disponible para la venta en este momento
Características
Description:
- Working Mode: Class D (PWM modulation type)
- Chip Type: PAM8610
- Power Range: DC 6V-15V
- Recommended Voltage: DC 12V
- Output Power: 10W x 2 (8Ω), 15W x 2 (4Ω)
- Frequency Response: 20HZ-15KHZ
- Static Current: 20MA (DC12V)
- Input Impedance: 15K
- Output Impedance: 4-8Ω
- Harmonic Distortion: <0.1%

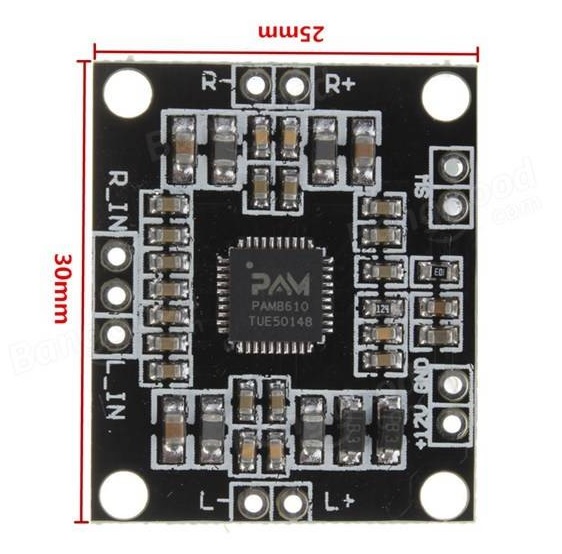

- Size: Approx. 3cm x 2.5cm/ 1.19" x 0.98"
pam8610.pdf (421 Kb)
