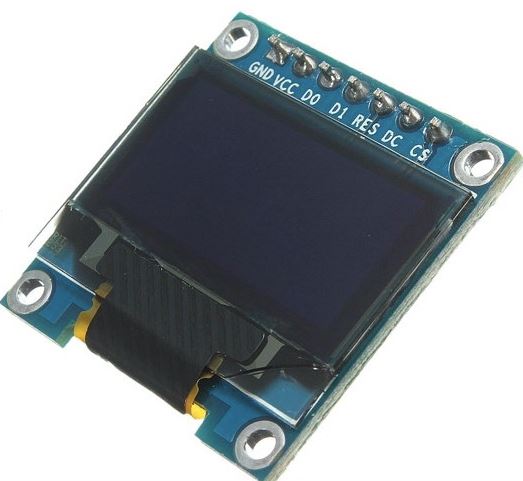

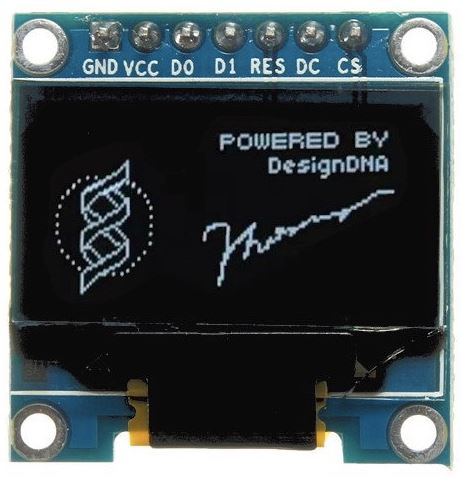

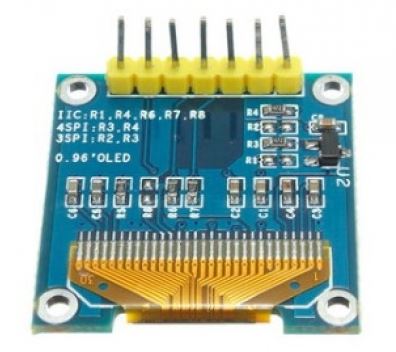

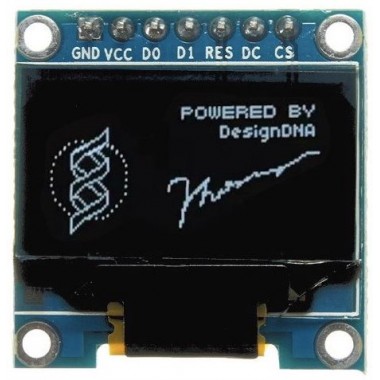

7Pin 0.96 Inch IIC/SPI Serial 128x64 White OLED Display Module

Principal

Módulo display OLED de 0.96 pulgadas de 7 pines, compatible con Arduino.

COD: HTHR0091

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 11474.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

7Pin 0.96 Inch IIC/SPI Serial 128x64 White OLED Display Module

Interface:

GND: Ground
VCC: Power  (2.8V-5.5V)
D0: Clock
D1: Data
RES: Reset
DC: Data/Command
CS: Chip Selection

Feature:

Needn't backlight, the display unit can self-luminous
High resolution: 128 * 64
Viewing angle: > 160 °
Supports many control chip: Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Voltage: 3V ~ 5V DC
Working Temperature: -40℃ ~ 70 ℃
Module Size: 27.3 x 27.8 x 3.7mm
IIC/SPI Interface, need 4 IO only.
Driver IC: SSD1306

What is OLED?
OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

The use of OLED technology has the following advantages:
1. A simplified manufacturing process compared to TFT-LCD (See comparison of Picture 1 and Picture 2 below)
2. Self-emitting light, in contrast to the required backlight for TFT-LCD
3. High luminosity
4. Lightweight and thin (less than 2 mm)
5. Low operating voltage and power consumption
6. Wide range of operating temperatures (-40℃ to 85℃)


Package included:

1 x White 0.96inch I2C IIC SPI Serial
