RAMPS 1.4 Endstop Switch For RepRap Mendel 3D Printer With 70cm cable

Principal

Switch final de carrera para impresoras 3D del tipo RepRap Mendel y derivados que incluye un conector de 70 cm

COD: HTHR0136

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 1737.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Features:

It using 22AWG wire, copper wire inside is very thick, can be resistant to current 2A, 300V voltage. An insulating layer over a wide range of temperatures, up to 80 degrees. Is the common connection of thin copper wire can not match. Not easy to pull off, plug it convenient, for ease of use, plug the other side to do the one, you can use the direct plug

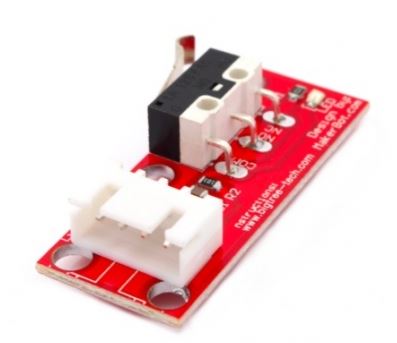

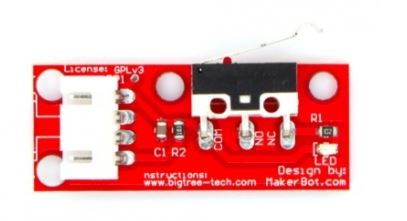

Board Size: Approx. 39 x 16 x 7mm / 1.54 x 0.63 x 0.28 inch

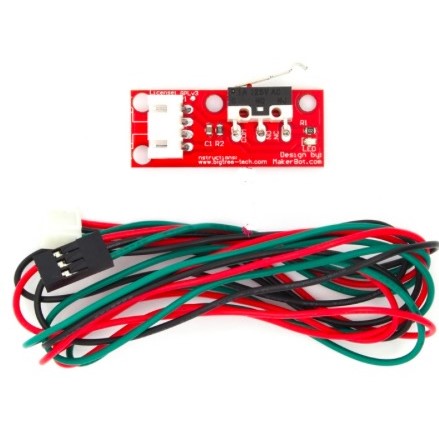

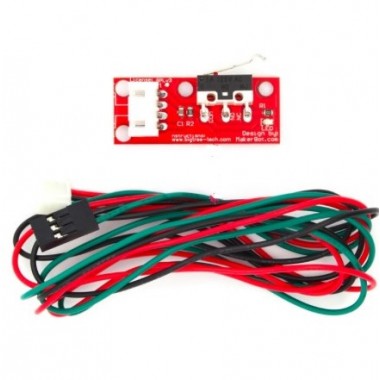

Cable Length: Approx. 70 cm / 27.56 inch

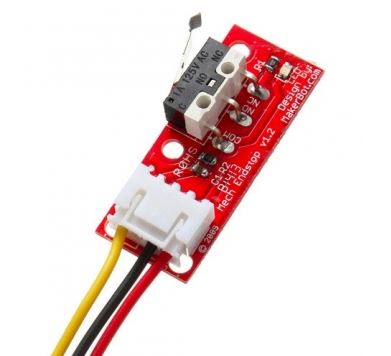

Connection Description:

Red line connecting VCC (ramps of +)

Connect the black wire GND (ramps of -)

Green Line connection SIGNAL (ramps in s)

Tips: Under normal circumstances, the system must be configured to at least three mechanical switches.

Package Included:

1 x 3D Printer Endstop Switch
