Pro Mini Improvement Version ATMEGA328P
Versión mejorada del microcontrolador Pro Mini 328. Dispone de 20 pines digitales de entrada y salida. Compatible con Arduino.
COD: HTHR0214-23
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 5212.00
El producto no está disponible para la venta en este momento
Características
Feature:

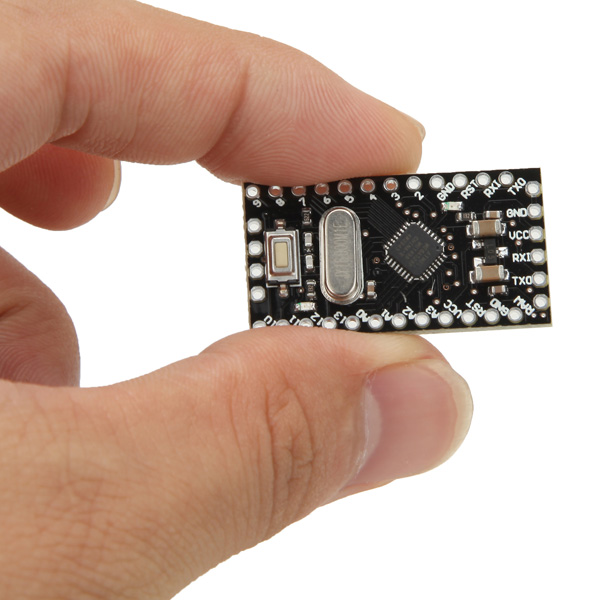

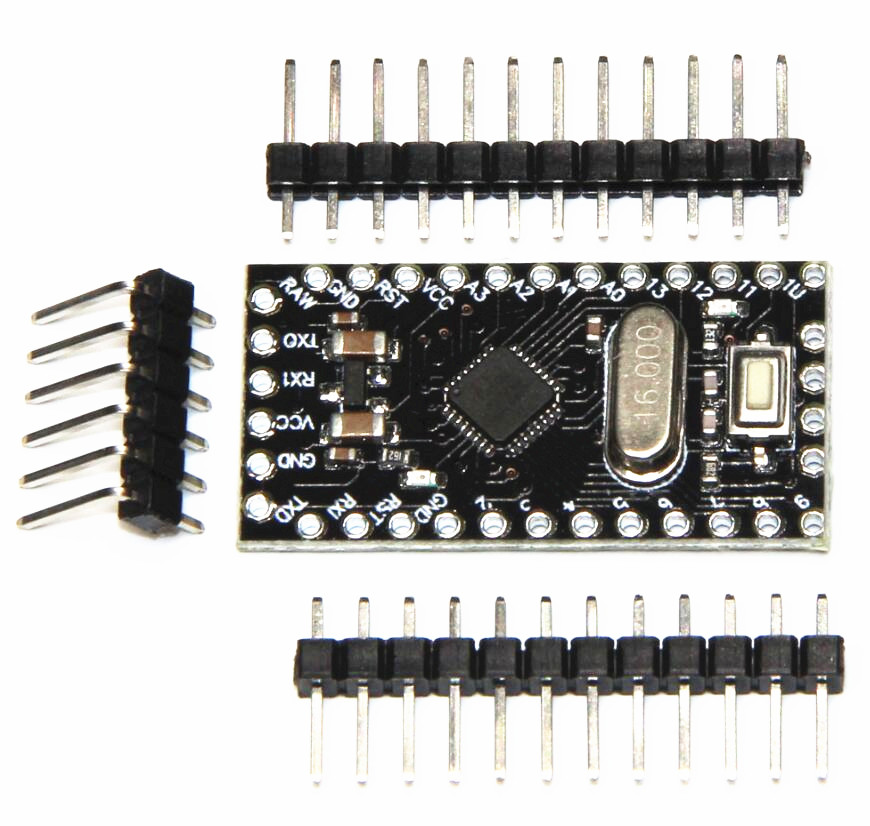

Professional version of the Pro Mini micro controller circuit board.
It has 20 digital input/output pin (six of them can be used as a PWM output), 8 analog input, a 16MHZ crystal, a reset button, the installation hole lead foot.
Technical parameters:
- 14 digital input/output port RX and TX, D2 ~ D13
- 8 analog input port A0 ~ A7
- 1 pair of TTL level serial port transceiver port RX / TX
- 6 PWM port, D3, D5, D6, D9, D10, D11
- Using Atmel Atmega328P - AU microcontroller
- Support serial download
- Support for external 5 V ~ 10 V dc power supply
- Support 9v battery powered
- 16 MHZ clock frequency
- Size: 33.3 x 18 mm
Package included:
1 x Pro Mini ATMEGA328P 5V/16M Improved Version Module
