16x32 RGB LED Panel Driver Shield

Principal

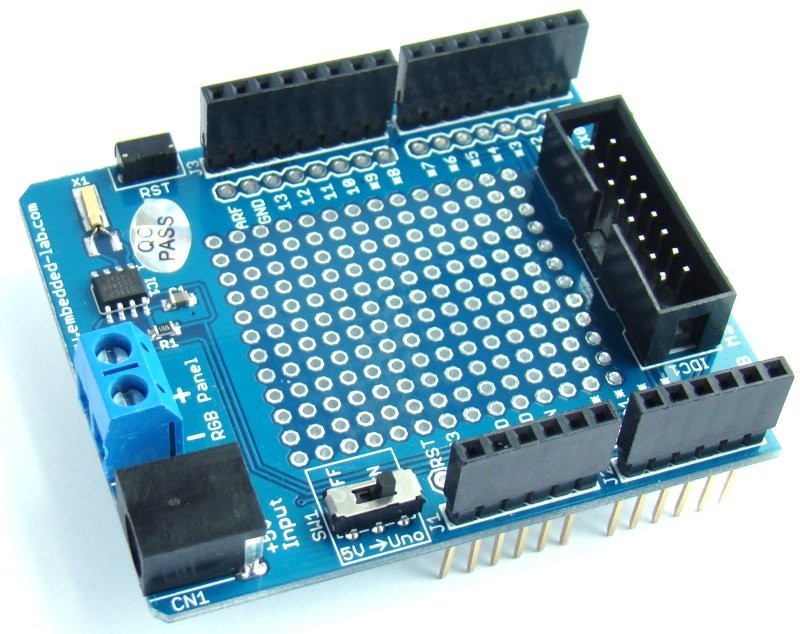

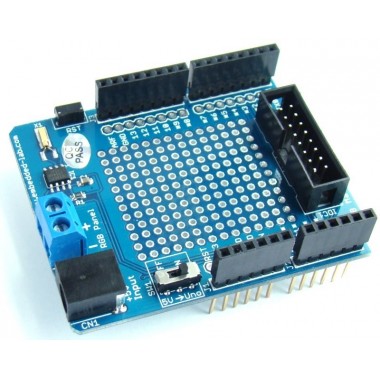

Shield para Arduino para controlar los paneles RGB de 16x32 (512 leds)

COD: ECDE20032P

Peso: 0.020 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 31670.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

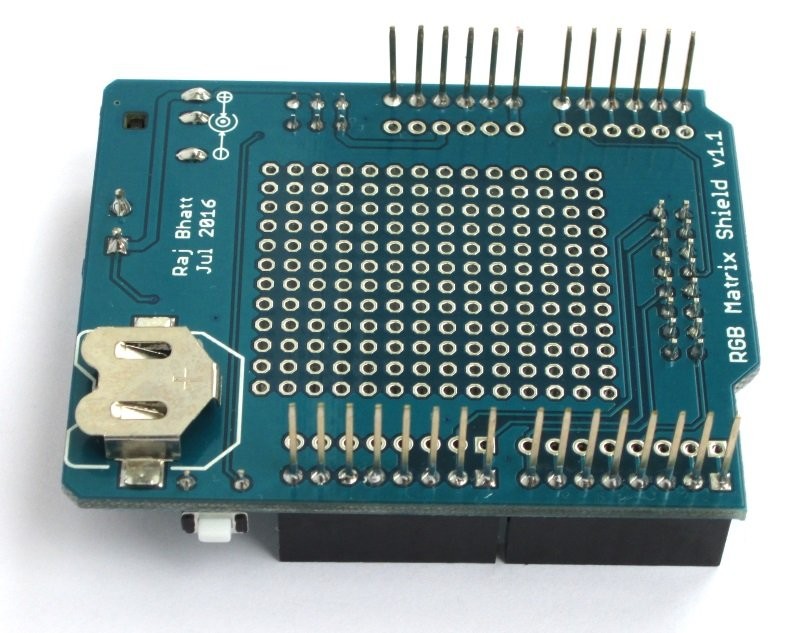

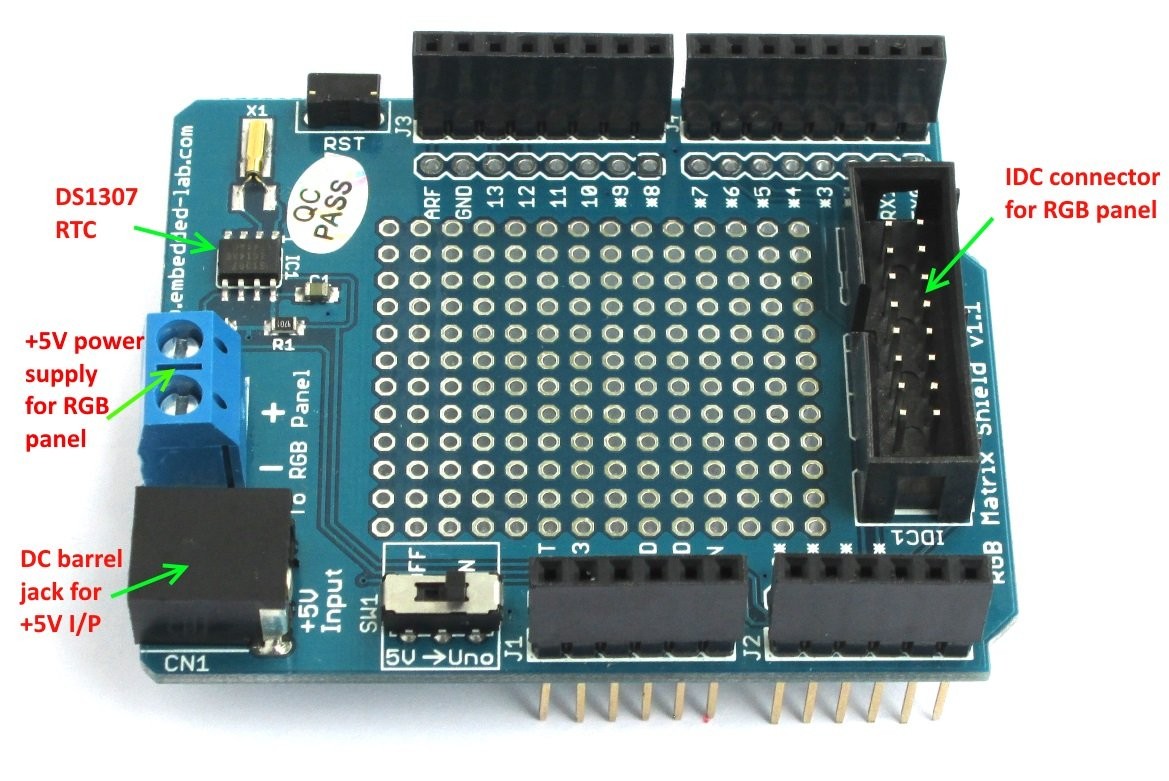

It is an Arduino Uno shield for driving a 16x32 RGB matrix panel (all colours) with a HUB75 (8x2 IDC) connector. It provides a matching 2×8 IDC connector for setting up easy connections between the Arduino board and the LED panel. The shield also features an RTC chip on board. The display uses 12 digital I/O pins of Arduino Uno for full color control.

Features

  • Operates at 5V
  • Compatible with Adafruit’s RGBMatrixPanel Library
  • DS1307 RTC chip on board along with a CR1220 coin-cell battery holder
  • The I2C pins of the DS1307 chip are pre-wired to A4 and A5 pins of the shield.

Package list

  • RGB driver shield x1

Wiki & External links
