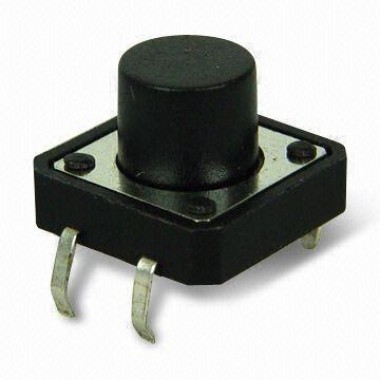

12*12MM 6MM TACT SWITCH TACTILE PUSH BUTTON

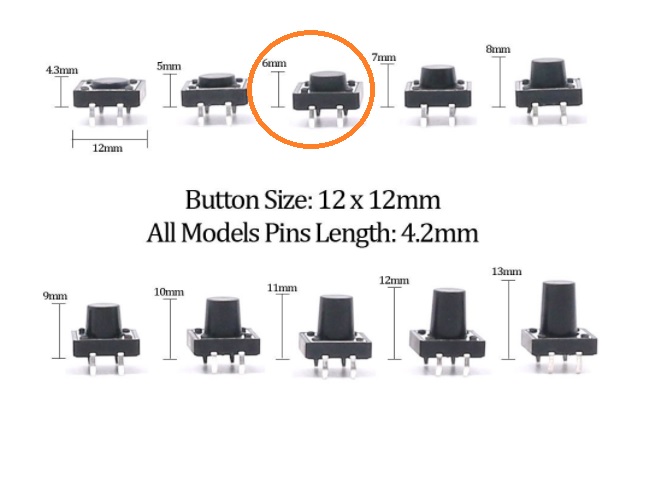

Pulsador táctil de 12mm x 12mm x 6mm. Para montaje en PCB o protoboard.
COD: HTHR0321-U
Peso: 0.001 Kg
Disponibilidad: En Stock
ARS 1125.00
El producto no está disponible para la venta en este momento
Características
Description:

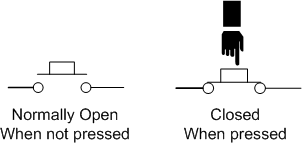

Medium-sized clicky momentary switches are standard input "buttons" on electronic projects. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed.

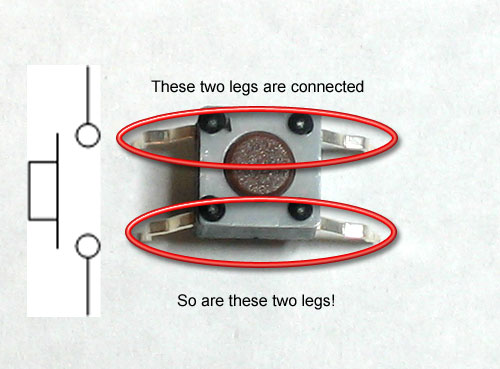

This mechanical device have 4 pins, which may make you think that there are 4 wires that are switched on and off, but in fact, two on each side are actually connected together inside. So really, this switch is just a 2-wire switch.
b3f-1000-omron.pdf (484 Kb)
