10pcs 1.0mm PCB Micro Drill Bit Shank 3.175mm

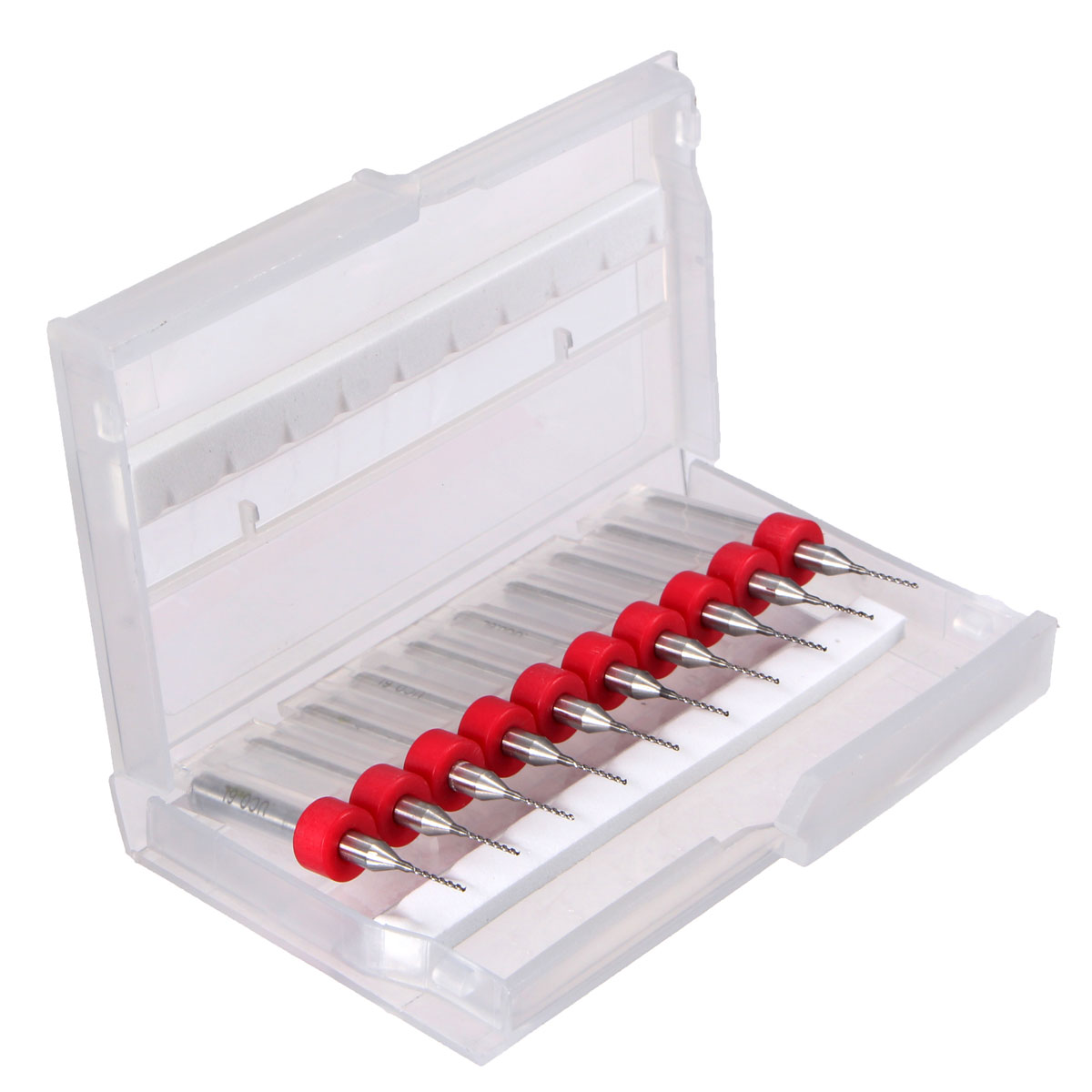

Juego de 10 mechas de 1mm para perforado de circuitos impresos. Incluye un cómodo estuche plástico para guardarlas. Diámetro del mandril: 3.175mm. ATENCION: Utilizar solamente con perforadoras con soporte vertical de alta velocidad, o con CNC. No utilizar con perforadoras manuales, ya que se quebrarán muy fácilmente.
COD: HTHR0309-43
Peso: 0.050 Kg
Disponibilidad: Sin Stock
ARS 12657.00
El producto no está disponible para la venta en este momento
Características
Product Features:
- High-precision equipment, precision machining, with good milling and cutting performance, to ensure high efficiency;
- High hardness, wear-resistant, resistant to bending; resistance is small; smooth chip removal, reduce heat and reduce pollution;
- Sharp cutting edge, reducing cutting force, reduce the fracture rate, improve the hole wall quality; contribute to effective cutting, to avoid drilling drift.
- Long service life, under normal working conditions depth 2000-5000 holes, 100% new, high quality.

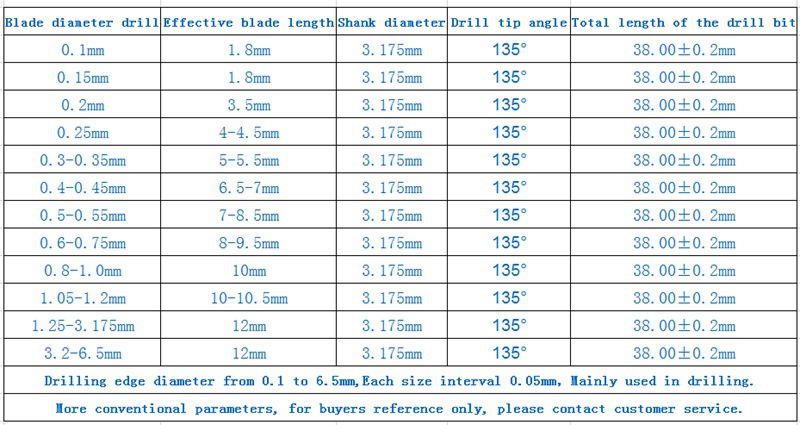

- Drill blade diameter 0.1mm-6.5mm Shank diameter: 1/8 (3.175 mm)
Processing: Widely used in PCB circuit board, CNC, SMT, electronics, mold, sculpture, aviation, plastics, handicrafts, jewelry, communication engineering, metal processing and other industries.
