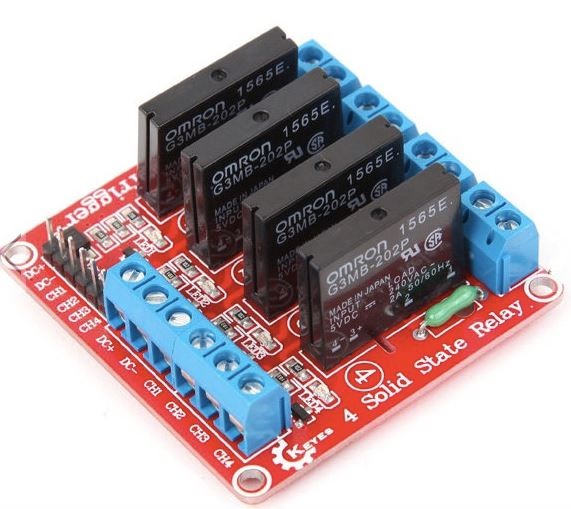

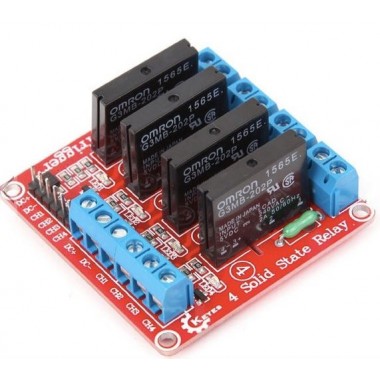

4 channel solid relay module

Principal

Módulo de reles de 4 canales basado en los reles de estado sólido de Omron de alimentación 5V y de 240V/2A.

COD: HTHR0226

Peso: 0.200 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 23328.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Four way Solid State Relay Module For Arduino

Description:

5V Omron solid state relays 240V / 2A, output with resistive fuse 240V / 2A.  Dimensions: 57x55x25 (length x width x height)

Input Power: 5VDC

Control signal input voltage: (0-2.5V low state relay ON) (3-5V state high relay OFF)

Feature:

  • Voltage:5V
  • Quiescent current: 0 mA
  • Operating current: 12.5mA
  • Trigger Voltage: 3.3-5V
  • Trigger current: 2mA
  • DC +: positive power supply (according to the relay voltage supply)
  • DC-: negative power supply
  • CH1: relay module signal triggering end (low to trigger active)
  • CH2: relay module signal triggering end (low to trigger active)
  • CH3: relay module signal triggering end (low to trigger active)
  • CH4: relay module signal triggering end (low to trigger active)

Package included:

1 x Four way Solid State Relay Module For Arduino
