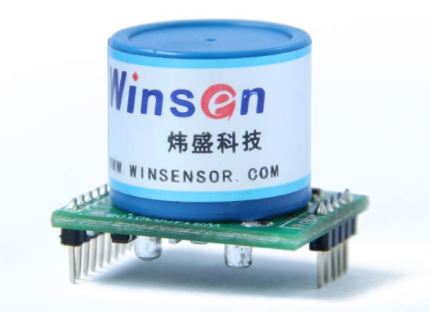

Electrochemical CO Sensor Module ZE07-CO

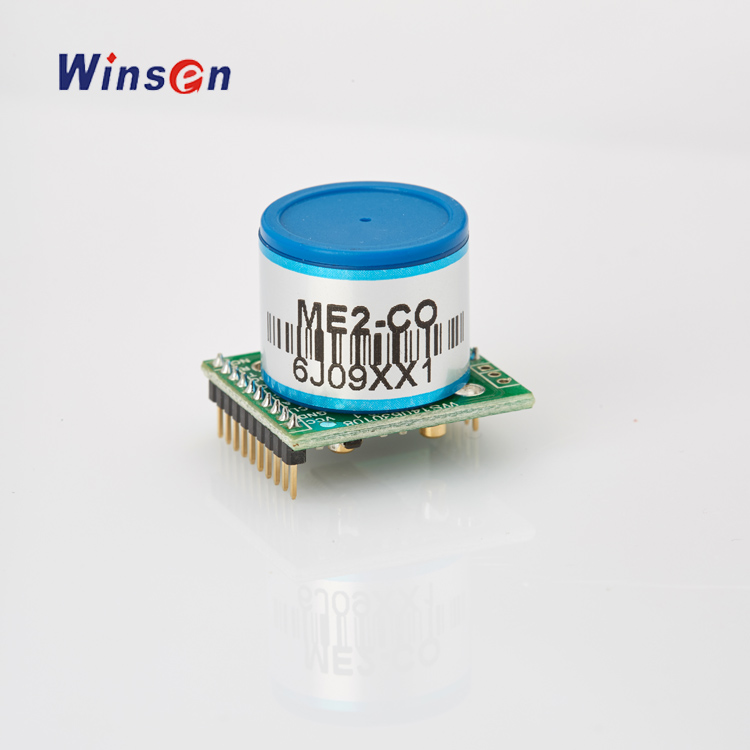

Versión de menor rango y digitalizada del sensor ME2-CO. Sensor de mónoxido de carbono en aire de hasta 500ppm, posee salida analógica en tensión y digital tipo UART de 3V. Se puede alimentar entre 5-12V.
COD: WINZE07CO
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 37412.00
El producto no está disponible para la venta en este momento
Características
Principle Introduction:
ZE07-CO is a general-purpose and miniaturization electrochemical carbon monoxide detection module. It utilizes electrochemical principle to detect CO in air which makes the module with high selectivity and stability. Built-in temperature sensor can do temperature compensation; and it has digital output and analog voltage output. It is a combination of mature electrochemical detection principle and sophisticated circuit design.
Applications :
Portable detector, air-quality monitor device, air ventilation system, smart home &etc.
Technical parameters :
| Model No. | ZE07-CO |
| Target Gas | CO |
| Interference Gas | Alcohol and other gases |
| Output Data | DAC(0.4~2V standard voltage output) |
| UART Output (3V Electrical Level) | |
| Working Voltage | 5V~12V (No voltage reverse connect protection) |
| Warm up time | ≤3minutes |
| Response time | ≤60s |
| Resume time | ≤60s |
| Detection Range | 0~500ppm |
| Resolution | 0.1ppm |
| Operating Temp. | -10°C~55°C |
| Operating Hum. | 15%RH-90%RH(No condensation) |
| Storage temp. | －10°C~55°C |
| Working life | 2 years (in air) |
Datasheet (498 Kb)
