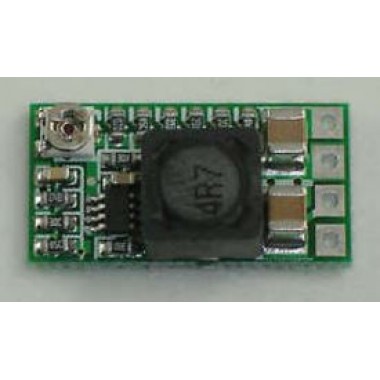

DC Buck Step-Down Power Module, 3A/24V, MP2315

Fuente Step-Down de corriente máxima de salida 3A y tensión de salida ajustable entre 0.8 a 17V basada en el integrado MP2315. Entrada de DC de 4.5 a 24V.

COD: TROOPM1104

Peso: 0.002 Kg

Disponibilidad: En Stock

ARS 11192.00

El producto no está disponible para la venta en este momento

Características

Product Description

Maximum output current 3A, long-running 2.1A.

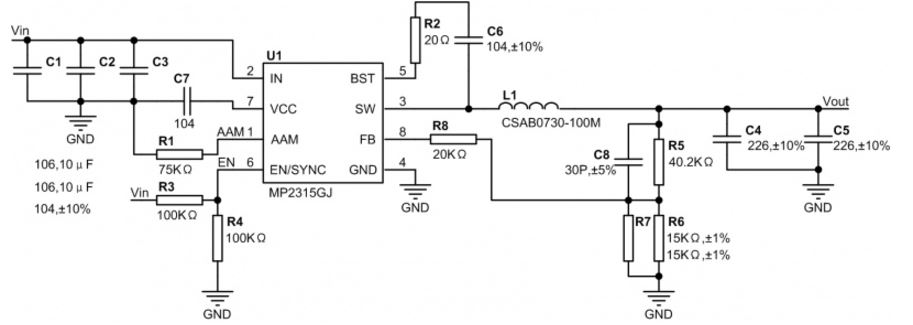

Using MP2315 design, with the use of high-end large-size solid ceramic capacitor circuit (MCC) 2 pcs.
The new program uses synchronous rectification circuit conversion efficiency is very high, in turn 5V 0.7A 6.5V when efficiency up to 97.5%, 12V turn 5V 1A, it also reached 94%, unlike some peers efficiency is only 60-70%. (Efficiency test removed the input reverse polarity protection diode and fuse drop).
Using shielded high-current inductors, low internal resistance, to maximize conversion efficiency. Reduce heat.
Small size, 20 (L) * 11 (W) * 5 (high) mm
Low quiescent current, quiescent current of 0.85 mA. Connected to the car battery without adding switches can be connected to the cigarette lighter line or the ACC power cable line.
Output Integrated adjustable and fixed voltage, fixed output does not need customization, direct can be very voltage, potentiometer can adjust, versatility is very strong on the board under the spot welding
Integration enabled pin, default mode, low close, bring convenience to control
Can replace linear regulators, such as 7805, 7812, and so on.

Parameters:

Module: non-isolated step-down module (BUCK) synchronous rectifier
Input voltage: DC 4.5-24V

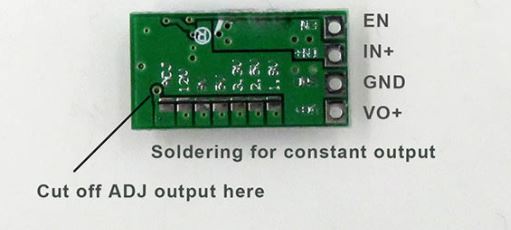

Output voltage: integrated adjustable and fixed output, the back can choose a fixed output voltage
Adjustable range (0.8-17V), fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
Output Current: 3A (Please note that full cooling), the actual test input 12V 1.5A output less heat without special treatment.
Conversion efficiency: up to 97.5% (6.5 turn 5V 0.7A)
Switching Frequency: 500KHz
Output ripple: 20mV around (12V turn 5V3A) 20M-bandwidth
Operating temperature: Industrial grade (-40 ºC to + 85 ºC) (the higher the temperature, the smaller the output power)
Output Overvoltage Protection: None
Full load temperature rise: 40 ºC
Static current: 0.85 mA
Load regulation: ± 1%
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Output short circuit protection: Do not short-circuit a long time
Enable control: Yes, high work, low stop working, high level 2-5V, a low level of about 0V. The default input with internal pull-up to the positive electrode.
Connection: Soldering 2.54 mm pin
