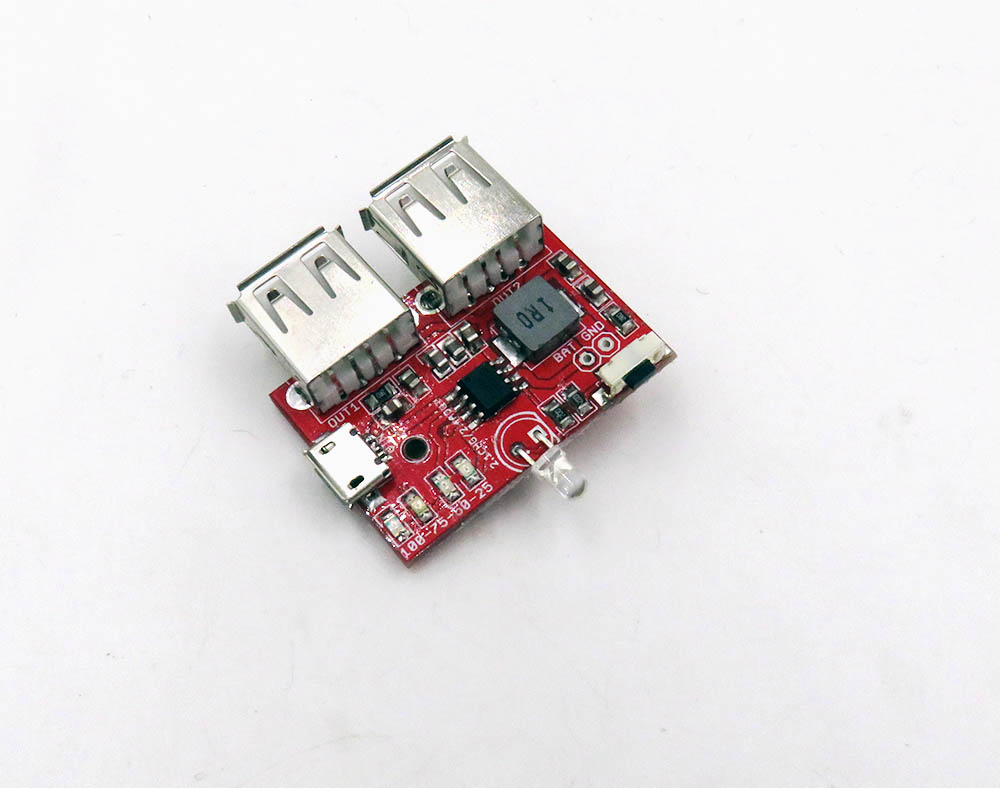

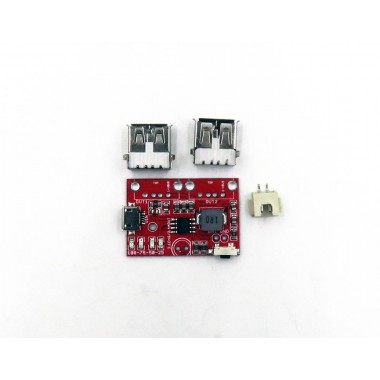

Lithium Battery Charge and 5V Boost Board

Lithium Battery Charge and 5V Boost Board

OFERTA POR RENOVACION DE STOCK!!! Módulo basado en el integrado IC5306, soporta carga de baterías de Litio a una tasa de 2A. La placa incluye dos salidas USB, una entrada microUSB de 5V para la carga, el conector para la batería y leds de indicación de nivel de batería.

COD: TROOPM1123

Peso: 0.002 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 1990.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

  • Based on Chinese power bank (portable battery power supply) mature solution IC 5306, this is the demo board.
  • Support Lithium battery charge on 2A rate. Single 2A boosted 5V output or two 1.2A 5V output, great for portable 5V device like Raspberry pi.
  • SOP8 and simpe perpherial circuit, very good performace.
  • Due to the simple perpherial circuit, it is easy to redesign and customize.
  • Board interface inlcudes:
    • Two reserved USB output
    • MicroUSB 5V charge input
    • XH2.54 and 2-pin battery connecto
    • 4 LEDs battery volume indicator (100%, <75%, <50%, <25%)
    • Push button and light: short press to acivate from sleep, or long press to turn on/off light.
  • Note:
    • Board will auto enter into sleep mode when no load.

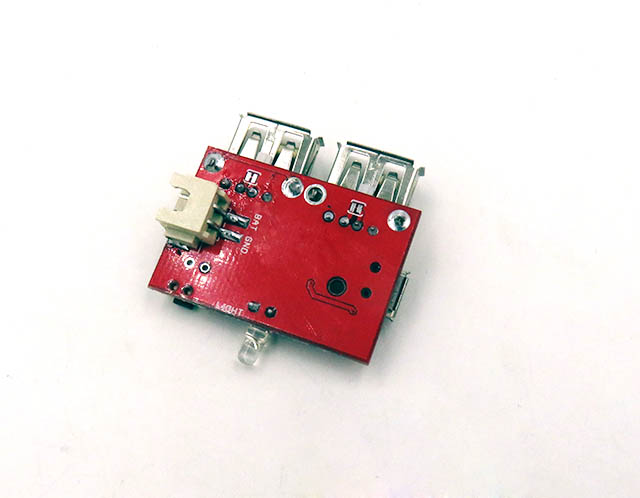

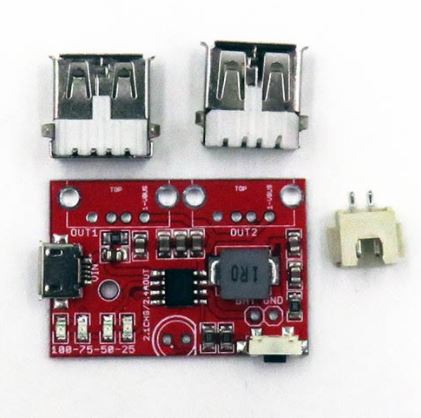

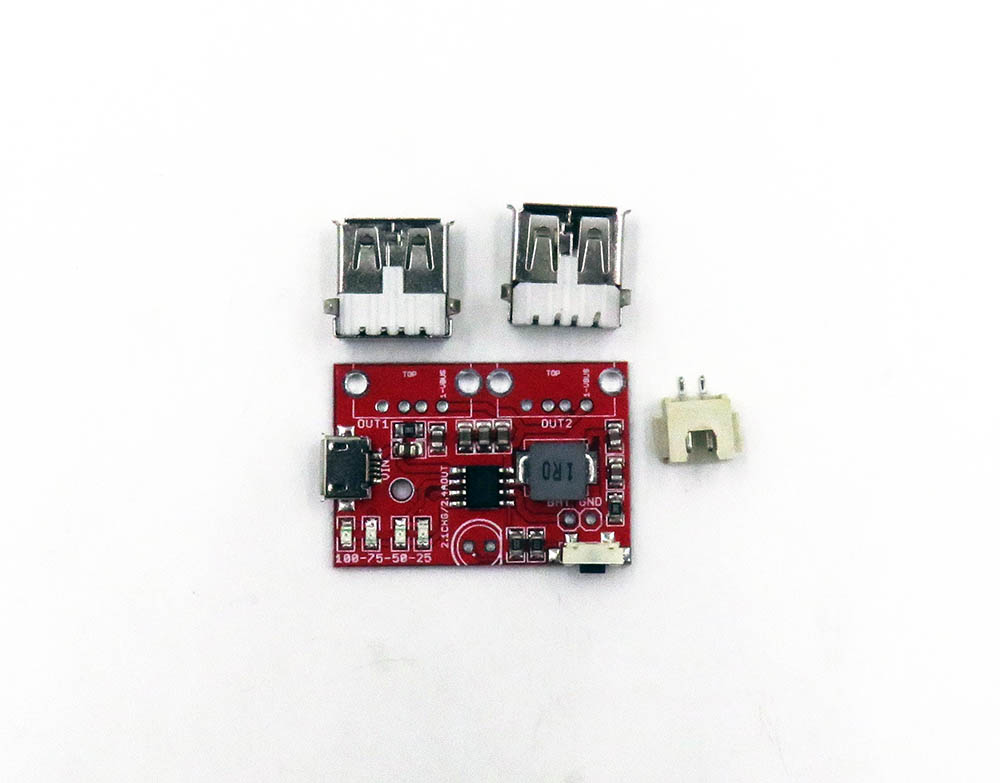

    • Output two USB A port and XH2.54 smd connector is not soldered yet.

About 5306 IC:

  • Synchronous switch charge and discharge
    • 2.4A synchronous boost conversion, 2.1A synchronous switch charging
    • boost efficiency up to 96%
    • Charging efficiency up to 97%
    • Built-in power path management, support edge charge side
    • support load large current line fill function
  • Charge
    • adaptive charge current regulation, matching all adapters
    • Charging voltage accuracy: ± 0.5%
    • Supports 4.20 / 4.30 / 4.35 / 4.40V battery
  • Power display
    • support 4,3,2,1 LED power display
  • Feature-rich
    • Push the key
    • Built-in lighting driver
    • Automatically detect phone insertion and removal
  • Low power consumption
    • intelligent identification load, automatic standby
    • Standby power consumption is less than 100 μA
  • BOM minimalist
    • Power MOS built-in, single inductor to achieve charge and discharge
  • Multiple protection, high reliability
    • output overcurrent, overvoltage, short circuit protection
    • input overvoltage, overcharge, over discharge, over-current discharge protection
    • machine over-temperature protection
    • ESD 4KV, instantaneous pressure 12V
