Wifi IoT Relay Board SPDT Based on ESP8266

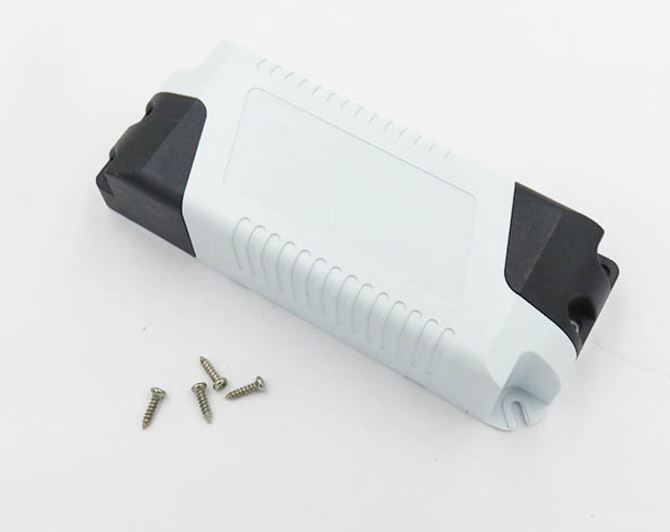

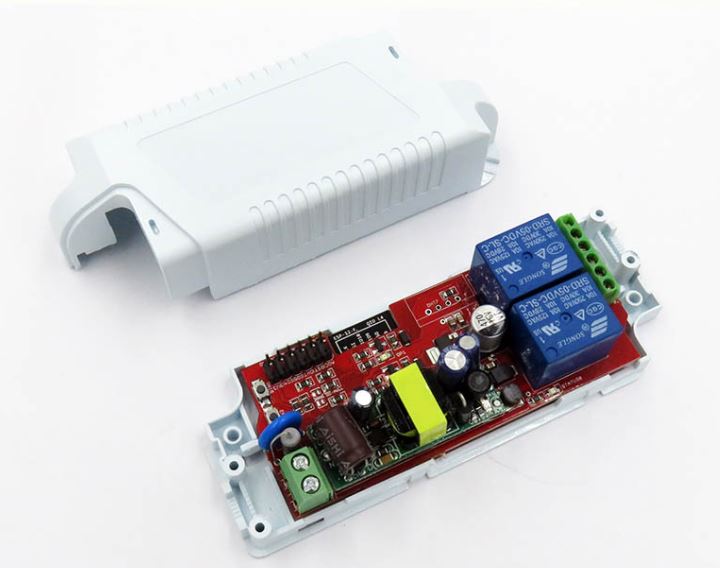

Módulo IoT de 2 relés con WiFi, basado en ESP8266. Incluye gabinete plástico. Alimentación 85 a 265 VCA (soporta 110 y 220 VCA).
COD: TRONWI1118
Peso: 0.002 Kg
Disponibilidad: En Stock
ARS 20795.00
El producto no está disponible para la venta en este momento
Características

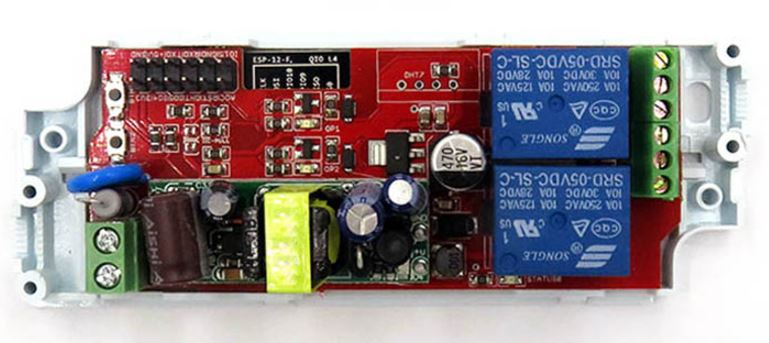

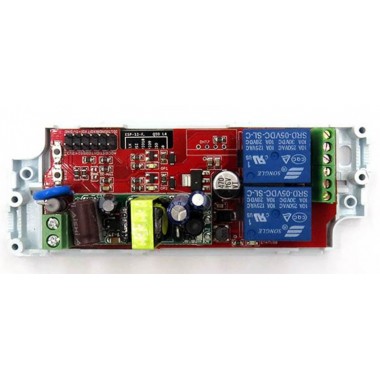

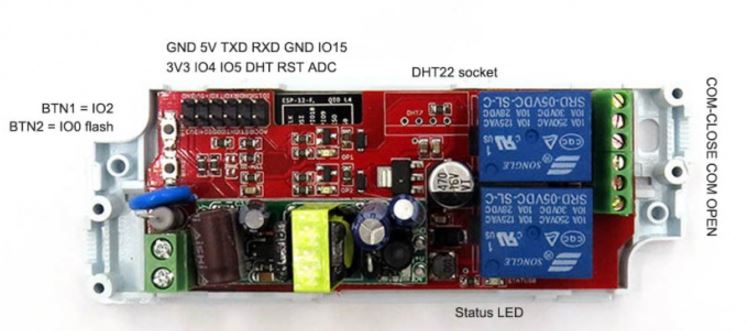

- Based on ESP8266 Wifi IC, ESP-12F module.
- SPDT 5 pins relay, Songle 10A/250VAC/30VDC, NOT connected to the AC mains. Three states: normally ON, normally OFF and Common pin.
- Input 85-265 VAC board voltage supply, use professional and well tested power module.
- Note on the relay side, terminal pin pitch is 3.5mm, still little conflict with case. Terminal pin pitch on input voltage side is still 5.08m.
