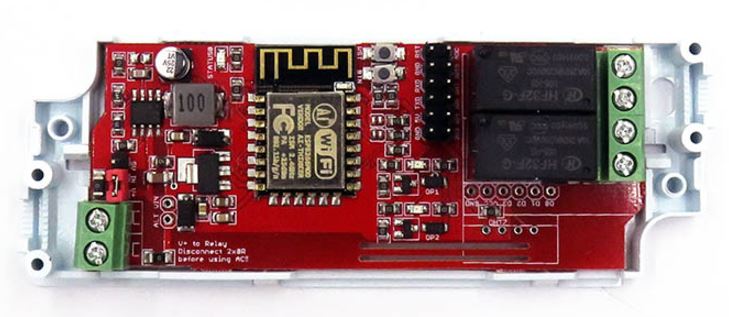

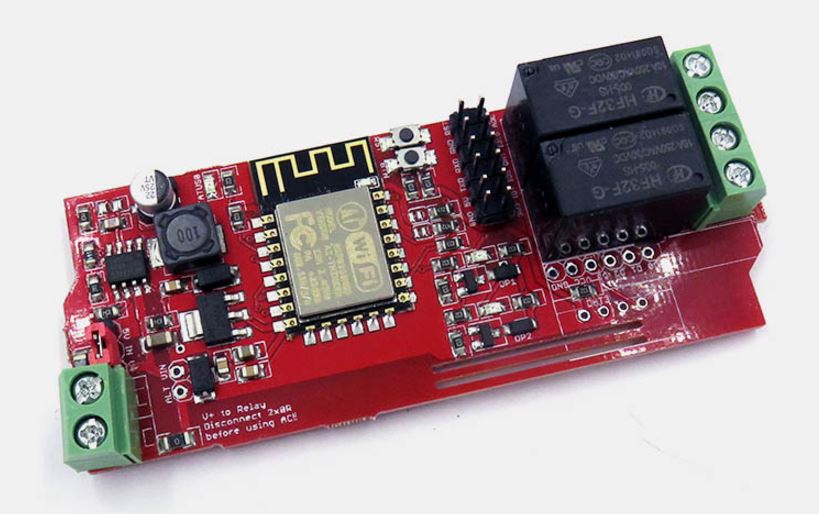

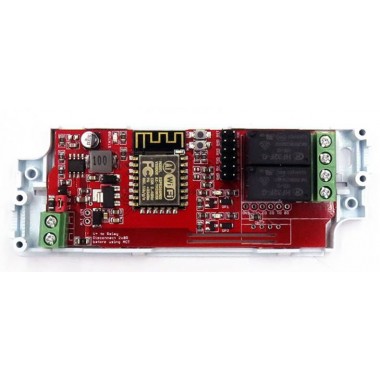

Wifi IoT Relay Board VDC Based on ESP8266

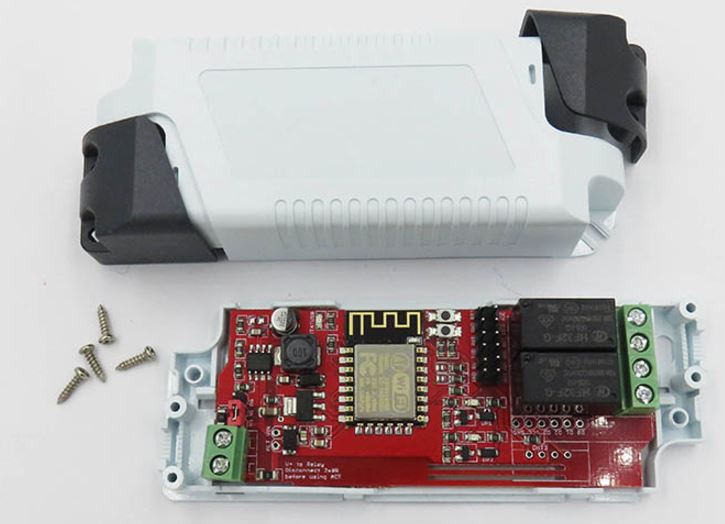

Módulo IoT de 2 relés con WiFi, basado en ESP8266. Incluye gabinete plástico. Alimentación 5 a 24 VDC.
COD: TRONWI1115
Peso: 0.002 Kg
Disponibilidad: En Stock
ARS 18083.00
El producto no está disponible para la venta en este momento
Características
Product Description
- Based on ESP8266 Wifi IC, ESP-12F module.
- Dual SPST Mechanical Relay (10A 30VDC, 250VAC)
- Board supply power DC voltage power 5-24V. Board DC buck circuit based on MP1584.

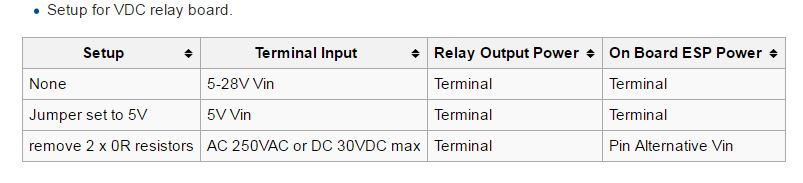

- Relay Drive power can be same as DC board power or independent DC or AC power supply.

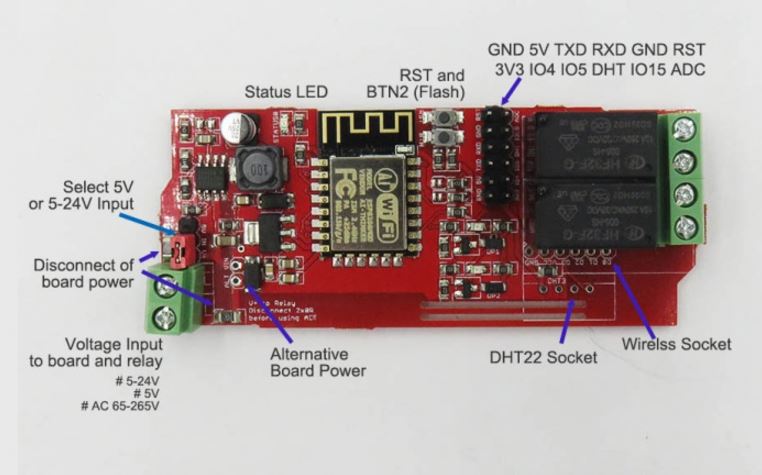

- Board extension function includes DHT sensor socket, IOs pins, wireless socket. On board reset (en) and flash io0 button.
