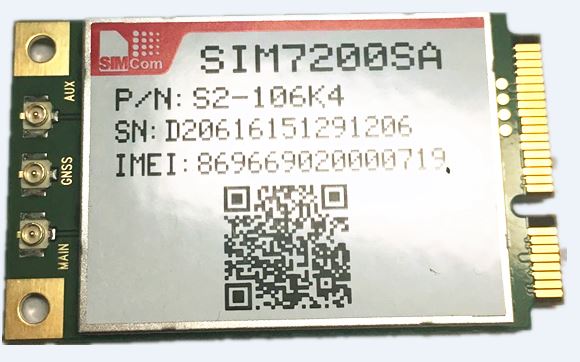

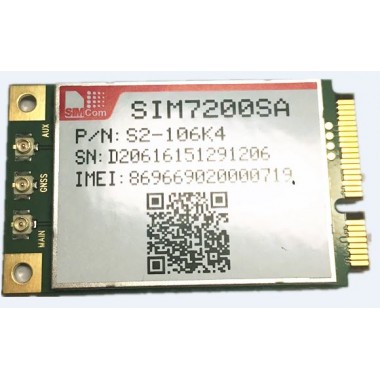

SIM7200SA mPCIe
Módulo compacto inalámbrico SIM7200SA multibanda LTE-FDD/GPRS/GSM entre otras
COD: SIM7200SA
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 163792.99
El producto no está disponible para la venta en este momento
Características
Introduction
SIMCom presents an ultra compact and reliable wireless module SIM7200SA which is based on Qualcomm MDM9225 multiple-mode LTE platform. SIM7200SA is a complete multi-band LTE-FDD/LTE-TDD/DC-HSPA+/HSPA/UMTS/EGDE/GPRS/GSM/GNSS MINI PCIE module designed with very powerful processors integrating application core:ARMv7 Cortex™ A5(1GHz), dual Telecom core (Up to 500Mhz), Cortex-M3 core, allowing customers to benefit from small dimensions and cost-effective product solutions with low power consumption in high-speed Download and upload.
Features
• Seven-Band LTE-FDD B1/B3/B4/B5/B7/B8/B28
• Tri-Band LTE-TDD B38/B40/B41
• Qual-Band UMTS/HSDPA/HSPA+ B1/B2/B5/B8
• Qual-Band GSM/GPRS/EDGE B2/B3/B5/B8
• GPRS multi-slot class 33
• EDGE multi-slot class 33
• Control Via AT Commands or Gobi API
• Supply voltage range: 3.3V
• Operation temperature: -40℃ to +80℃
• Dimension: 51*30*4.75mm
• Weight: TBD • LTE FDD/TDD Rel-9 Cat4/Rel-10 Cat4
• UTMS,
• HSPA+ DC-HSPA+,Rel-10
• GSM GSM R99,GPRS,EDGE
• GNSS gpsOne Gen 8B;standalone;assisted,XTRA
Specifications for Data transfer
• LTE-FDD/LTE-TDD - Uplink up to 50Mbps, - Downlink up to 150Mbps
• HSPA+ - Uplink up to 11 Mbps, - Downlink up to 42 Mbps
• UMTS - Uplink/Downlink up to 384Kbps
Other features
• USB Driver for Microsoft Windows 2000/XP/Vista
• USB Driver for Win7/Win8
• USB Driver for Windows CE
• USB Driver for Linux/Android
• RIL supporting for Android/Windows CE
• Linux API SDK • Firmware update via USB
• TCP/IP/IPV4/V6 Multi-PDP,MT PDP
• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
• eCall
• Gobi SDK for Win7/Win8/Linux
• MBIM for Win8
Interfaces
• PCI Express Mini Card
• USB 2.0
Certifications
• ROHS(TBD)
sim7200_hardware_design_v1.01_20160519_.pdf (2337 Kb)
