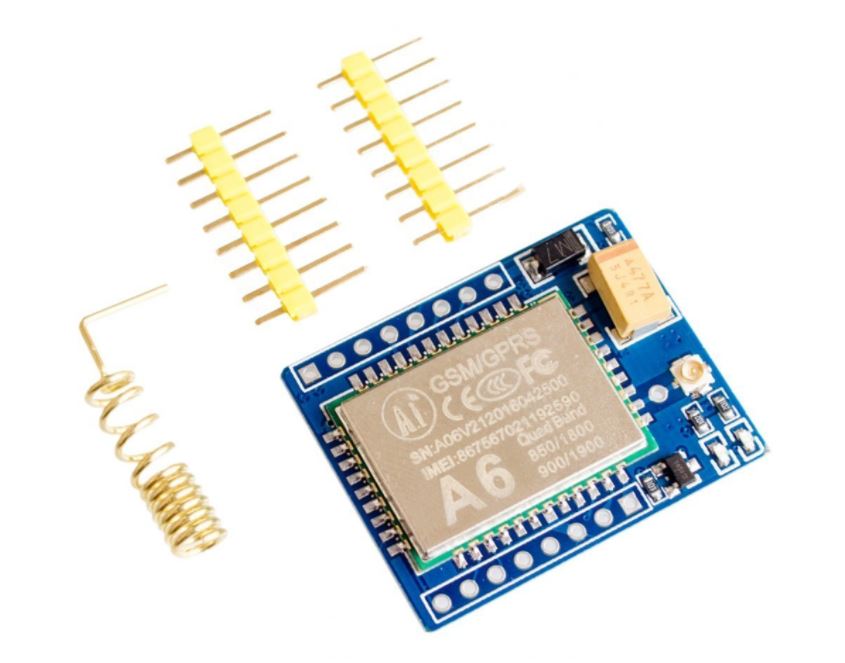

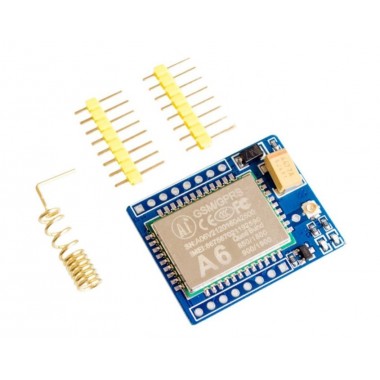

Mini A6 GPRS GSM Module Kit
KIt que incluye el módulo GPRS/GSM A6. Ideal para proyectos que requieran hacer llamadas de voz, envió y recepción de SMS y conectividad de datos GPRS.
COD: HTHR0214-138A
Peso: 0.009 Kg
Disponibilidad: Sin Stock
ARS 13991.00
El producto no está disponible para la venta en este momento
Características
Product description
GSM A6 Module:
Working temperature -30 ºC to + 80 ºC
Operating Voltage 5V
Standby average current 3ma less
Support the GSM / GPRS four bands, including 850,900,1800,1900MHZ
GPRS Class 10
Support voice calls
Support SMS text messaging
Support GPRS data traffic, the maximum data rate, download 85.6Kbps, upload 42.8Kbps
Supports standard GSM07.07,07.05 AT commands and extended commands Ai Thinker
Supports two serial ports, a serial port to download an AT command port
AT command supports the standard AT and TCP / IP command interface
Support digital audio and analog audio support for HR, FR, EFR, AMR speech coding
Support ROHS, FCC, CE, CTA certification
SMT 42PIN L package
a6_a7_a6c_datasheet-en.pdf (985 Kb)
