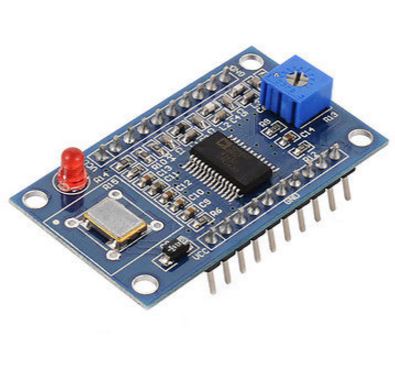

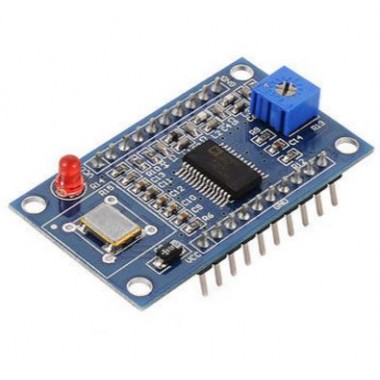

AD9850 DDS Signal Generator Module 0-40MHz IC Test Equipment

Principal

Módulo DDS capaz de generar señales senoidales y cuadradas.

COD: HTHR0214-107A

Peso: 0.007 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 27251.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

AD9850 DDS Signal Generator Module 0-40MHz IC Test Equipment

Features:


The module can output sine wave and square wave.
Frequency harmonics in the 20-30MHz, the waveform will be clean.
70MHz low-pass filter.
Generate DA benchmark the pin leads (PIN12), convenient to adjust the application to do the amplitude of the output waveform.
Comparator reference input voltage generated by the variable resistor to adjust the resistance can be a different duty cycle square wave


Features:

  • Sine Wave Frequency output range: 0-40MHz
  • Square Wave Frequency output range: 0-1MHz
  • DAC SFDR > 50 dB @ 40 MHz AOUT
  • 32-Bit Frequency Tuning Word
  • Simplified Control Interface: Parallel Byte or Serial Loading Format
  • Phase Modulation Capability
  • +3.3 V or +5 V Single Supply Operation
  • Low Power: 380 mW @ 125 MHz (+5 V)
  • Low Power: 155 mW @ 110 MHz (+3.3 V)
  • Power-Down Function
  • Dimensions: 25*45MM

Application:

  •  Frequency/Phase–Agile Sine-Wave Synthesis
  • Clock Recovery and Locking Circuitry for Digital
  • Communications
  •  Digitally Controlled ADC Encode Generator
  • Agile Local Oscillator Applications
