12V DC Multifunction Time Relay

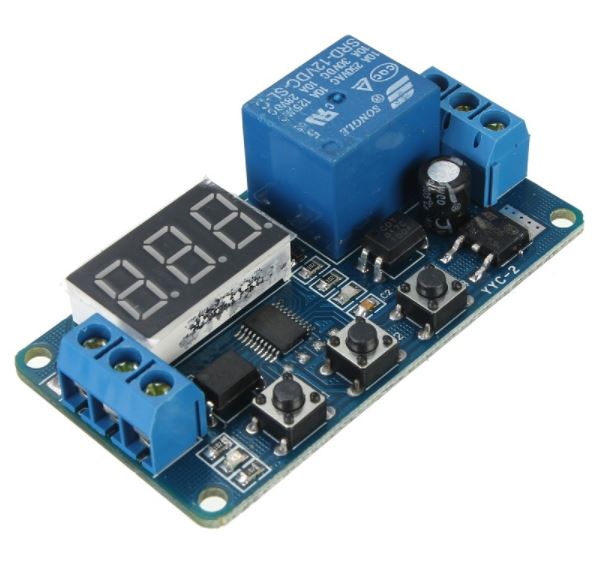

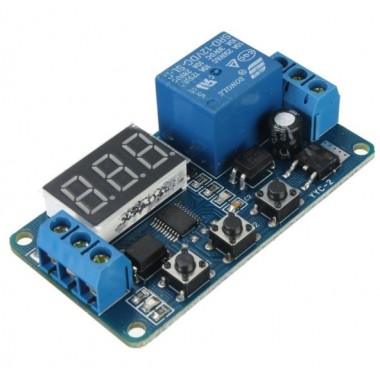

Modulo temporizador multifunción, incluye un display y salida relé. Cuenta con 4 modos de operación programables.
COD: HTHR0214-90A
Peso: 0.027 Kg
Disponibilidad: Sin Stock
ARS 14845.00
El producto no está disponible para la venta en este momento

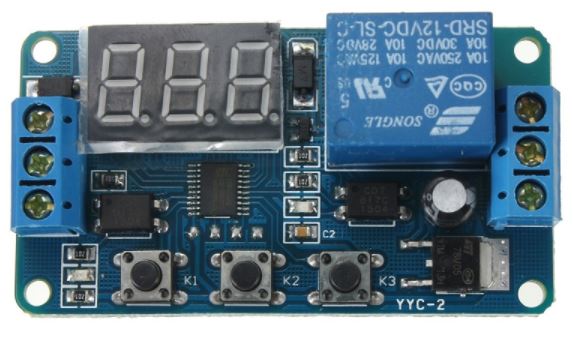

Características
Features:
- Use opto isolated input and output.
- Set parameter after power for perdurable memories.
- Signal terminal voltage signal can be maintained for a long time.
- Stability of industrial grade board

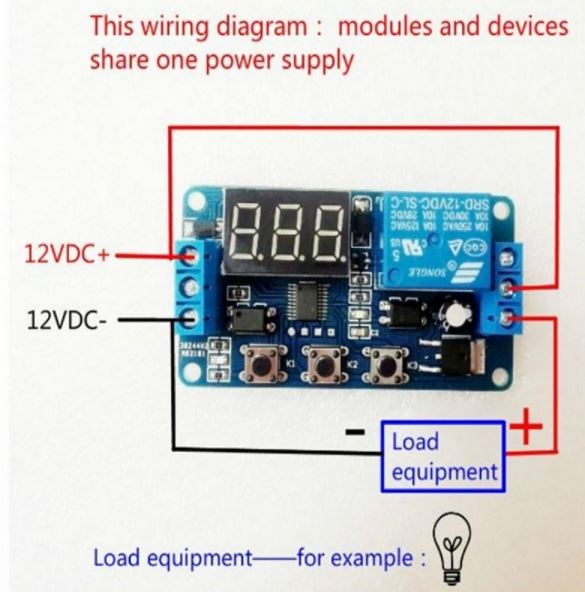

Working mode:
Working mode selection:After power on,long press K12 seconds later into the select function mode,P1-1~P1-4forchoose.
P1-1 operating modes: a signal to trigger relay, time is up,the relay disconnect users,You can set relay time T,click K2 the hundreddigital
tube starts flashing,then press K3, the hundred digital change;click K2 ten digital tube starts flashing,then press K3,ten digit changes;
click K2 bit digital tube starts flashing, then press K3, single-digit change;then click K2; digital pipe does not blink,then press the K3, shifting the
decimalpoint,the decimalpointin abitindicates 0-999minutesin ten represents 0 to 99.9 seconds withou tadecimalpointrepresents 0-999
seconds;goodchoice,bringing the time setting is completed.Short press K1,enterfunction offine-tuning settings,triggerthedefaultdelayperiod
is invalid, press K1, during the delay trigger active(re-timing),clickon the K1, during the delay reset (timer turned off,the relay reset) press
again to repeat the default settings for the first time.
P1-2 operating modes: Asignal trigger ,digital countdown begins,X seconds after,there lay open Y seconds,then close.Users can set the relay time X,Y;P1-1different time settings similar to the blue lights that set the relay time,blue light indicates setting relay off time. Short press K1, enter function offine-tuning the set,the default trigger is invalid during the delay,pressK1,during the delay trigger active(re-timing),then click the first repeat default settings.
P1-3 operating modes: Open X seconds,disconnect Yseconds, infinite loop.Users can set the relay time X,Y;time setting similar to P1-2.Short press K1,enter function offine-tuning set,The default function is:set up an electric circuit the relay first open, press the K1,there lay first close.Press again to repeat the default functionality.
P1-4 operating modes: a signal to trigger the relay open but do not start the timer,when the trigger signal disappears,digital count down begins,X
time after,the relayclose; During the delay,again to the signal,digital count down canceled, stays energized, the signal disappears, restart count down; (equivalentto release the button to start timing, commonly usedin power-offdelay).Users canset the relay time X; time setting similar to P1-1.

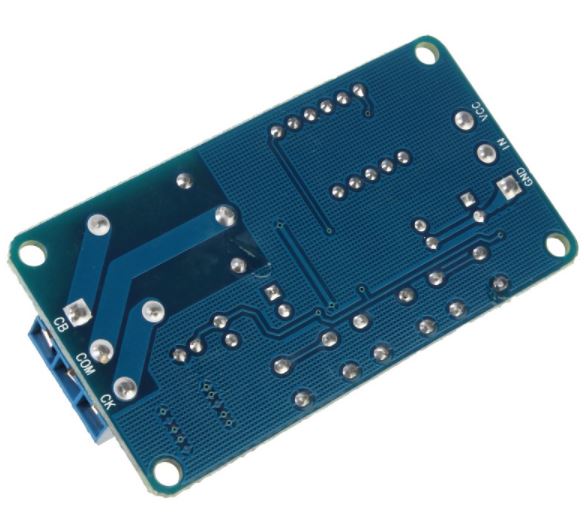

Specifications:
-Size: 64.2mm x 34.8mm x 18.5mm/ 25.28" x 13.7" x 7.28"
-Relay Specifications: AC 220V 10A or DC 30V 10A.
-Quiescent Current: 20mA,Operating Current:50mA.
-Working voltage: 10~16V (if other ranges can be customized).
-Signal voltage: 4V~20V (if other ranges can be customized).
-Life: about100,000 times,Working temperature:-40~85'C.
Package Includes:
1 x DC12V Delay Timer Control Switch Module
- Use opto isolated input and output.
- Set parameter after power for perdurable memories.
- Signal terminal voltage signal can be maintained for a long time.
- Stability of industrial grade board
Working mode:
Working mode selection:After power on,long press K12 seconds later into the select function mode,P1-1~P1-4forchoose.
P1-1 operating modes: a signal to trigger relay, time is up,the relay disconnect users,You can set relay time T,click K2 the hundreddigital
tube starts flashing,then press K3, the hundred digital change;click K2 ten digital tube starts flashing,then press K3,ten digit changes;
click K2 bit digital tube starts flashing, then press K3, single-digit change;then click K2; digital pipe does not blink,then press the K3, shifting the
decimalpoint,the decimalpointin abitindicates 0-999minutesin ten represents 0 to 99.9 seconds withou tadecimalpointrepresents 0-999
seconds;goodchoice,bringing the time setting is completed.Short press K1,enterfunction offine-tuning settings,triggerthedefaultdelayperiod
is invalid, press K1, during the delay trigger active(re-timing),clickon the K1, during the delay reset (timer turned off,the relay reset) press
again to repeat the default settings for the first time.
P1-2 operating modes: Asignal trigger ,digital countdown begins,X seconds after,there lay open Y seconds,then close.Users can set the relay time X,Y;P1-1different time settings similar to the blue lights that set the relay time,blue light indicates setting relay off time. Short press K1, enter function offine-tuning the set,the default trigger is invalid during the delay,pressK1,during the delay trigger active(re-timing),then click the first repeat default settings.
P1-3 operating modes: Open X seconds,disconnect Yseconds, infinite loop.Users can set the relay time X,Y;time setting similar to P1-2.Short press K1,enter function offine-tuning set,The default function is:set up an electric circuit the relay first open, press the K1,there lay first close.Press again to repeat the default functionality.
P1-4 operating modes: a signal to trigger the relay open but do not start the timer,when the trigger signal disappears,digital count down begins,X
time after,the relayclose; During the delay,again to the signal,digital count down canceled, stays energized, the signal disappears, restart count down; (equivalentto release the button to start timing, commonly usedin power-offdelay).Users canset the relay time X; time setting similar to P1-1.
Specifications:
-Size: 64.2mm x 34.8mm x 18.5mm/ 25.28" x 13.7" x 7.28"
-Relay Specifications: AC 220V 10A or DC 30V 10A.
-Quiescent Current: 20mA,Operating Current:50mA.
-Working voltage: 10~16V (if other ranges can be customized).
-Signal voltage: 4V~20V (if other ranges can be customized).
-Life: about100,000 times,Working temperature:-40~85'C.
Package Includes:
1 x DC12V Delay Timer Control Switch Module
