AC-DC Isolated Dual Output 12V/1A 5V/1A

Principal

Fuente de alimentación, entrada 85 a 265 VAC, salidas 5V 1A y 12V 1A, alta eficiencia.

COD: TROOPM1065

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 18428.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

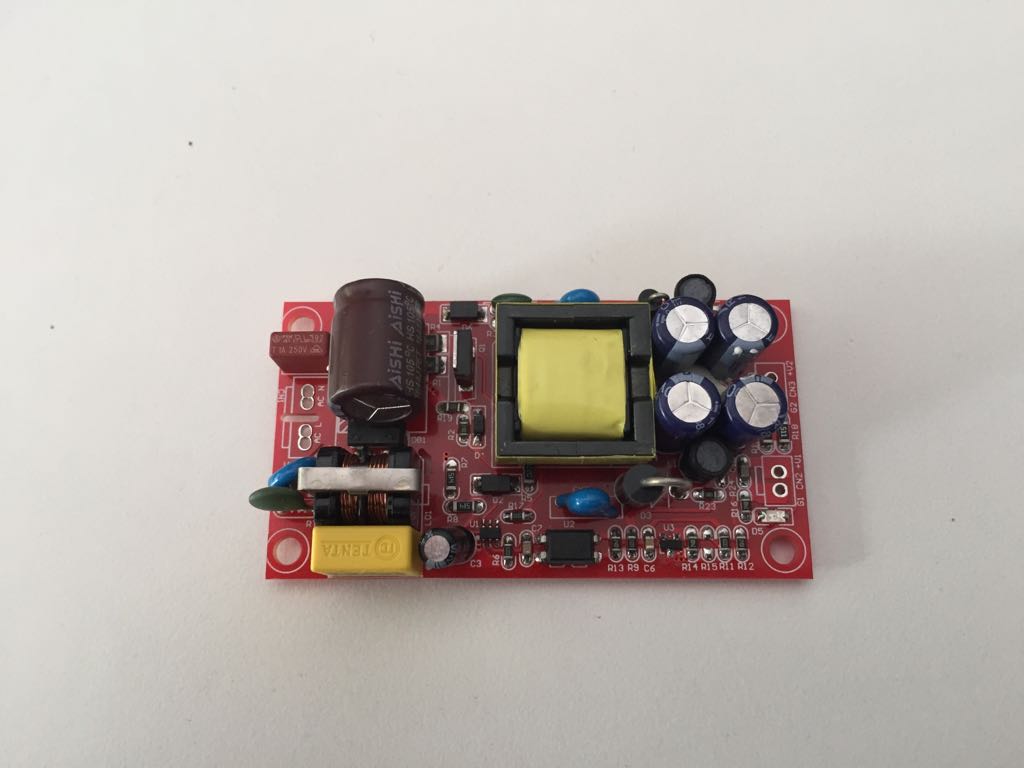

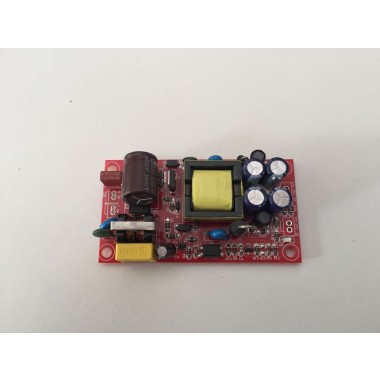

This power supply is fully isolated industrial internal power module with temperature protection, overcurrent protection and short circuit full protection, AC85 ~ 265V wide voltage input, high and low voltage isolation, DC12V1A 5V1A dual isolated output voltage, 431 regulated output with EMI filter circuit, with status LED, with installation holes, cost-effective.

Note: This section is dual voltage power supply output is recommended when using two load output voltage while the power to achieve the best design performance, if only one of them to go all the way to select the appropriate category of single output power supply voltage.

Features:

  • Input (full load): AC 85-265V
  • Input current (full load): 0.027(AC110V) 0.0136(AC220V)
  • Input inrush current (full load): 20A
  • Output: 12V, 0-1A, 1.2A max, output voltage range 11.80~12.5V, 150mV voltage wave
  • Output: 5V, 0-1A, 1.2A max, output voltage range 4.90~5.1V, 80mV voltage wave
  • DC output power: 17W
  • Efficiency: 84%
  • On/off overload range: 10%
  • Output upward time: 100ms
  • Size: 7.5*4.0*1.9 cm

Protection: overload, short circuit, overheat, over-current protection. Board will lock and recover when turn it on/off.
Reliability: Environment 25ºC, at 80% load MTBF more than 16,000 hours

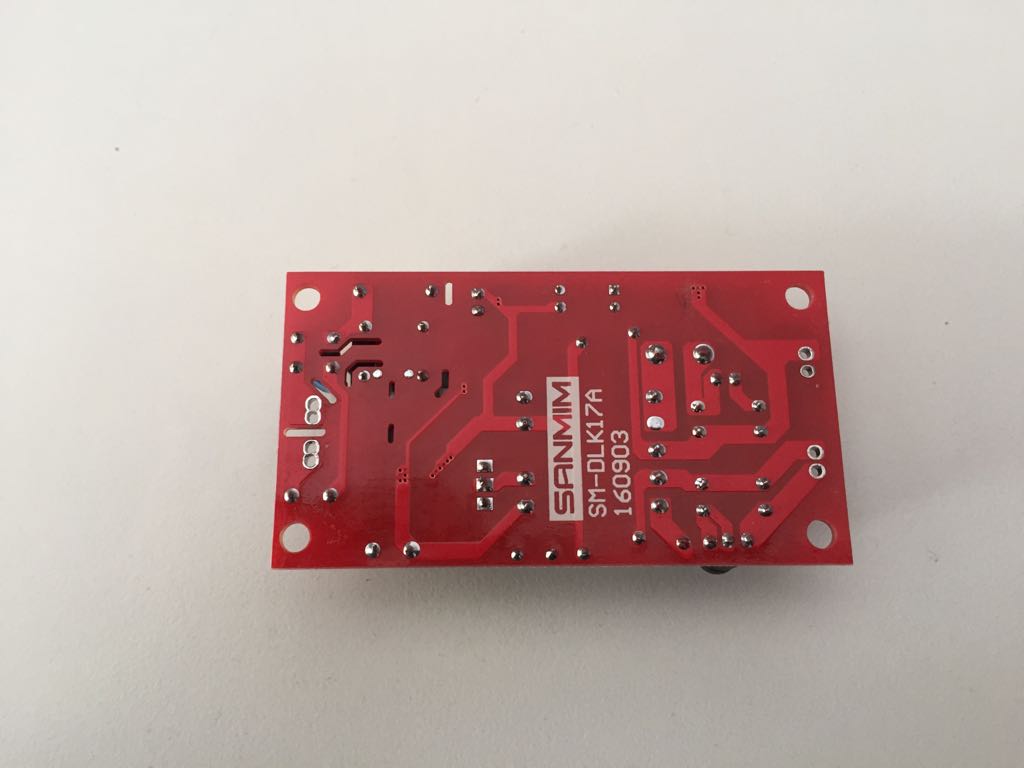

Silk print: V1 = 5V, V2=12V
