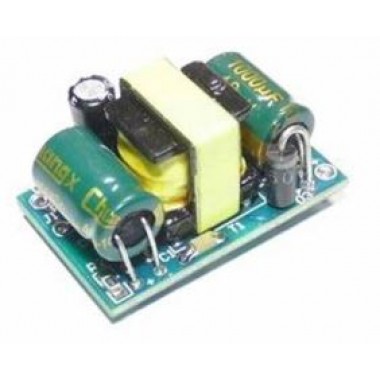

AC 85-265V to DC 5V Power Module

Principal

Fuente de alimentación 85 - 265 VAC / 5 VDC, una potencia de 3.5W y una eficiencia del 80%.

COD: TROOPM1016

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 5374.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

The power supply is isolated industrial power modules, with a temperature protection, over-current, over-voltage and short circuit full protection, high and low voltage isolation, AC85 ~ 265V wide voltage input, AC and DC, 431 precision regulator DC5V output, ultra-small size, high reliability and cost performance.

  • Input voltage AC 85 ~ 265v 50 / 60HZ or DC100v-370v
  • Output voltage DC5V (± 0.2V), voltage ripple 60mV
  • Output current 700mA
  • Output efficiency 80%
  • Power 3.5W
  • a temperature protection, overcurrent, overvoltage and short circuit full protection, high and low voltage isolation
  • Install by pin holes, soldering or glue.
  • Size: 3*2*1.8 cm
