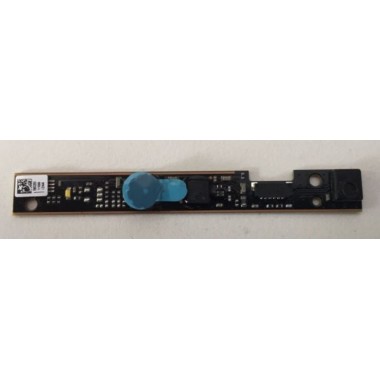

0.3M Laptop Build-in Camera Board

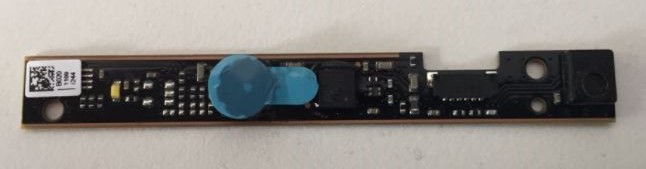

Vista de la placa

Placa con una cámara integrada de 0.3M, ideal para proyectos DIY, domótica, robots, etc.

COD: TROSCM1002

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 5634.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

Cheap camera, now you can add a nice camera for any of your projects on a very low budget, like robots, cars, home system, etc.

Features:

  • Chicony OEM on board camera PCB Board
  • 0.3M resoultion, 30FPS
  • Operational voltage from 3V3-4V for long term stable work
  • Adjustable focus from 0.5CM to infinite, can be used for macro photography (remove the glue by knife on the lens and turn it to change focus)
  • Directly recognize by Windows 7 PC (“HP Build in camera”)
  • Can DIY it to a USB camera, serial connect two 1N4148 on VCC to step down the USB voltage from 5V to 3V3, black “-” label to 3V3 of camera.
  • Pin definition on the back of the board
  • Special 0.8mm connector
