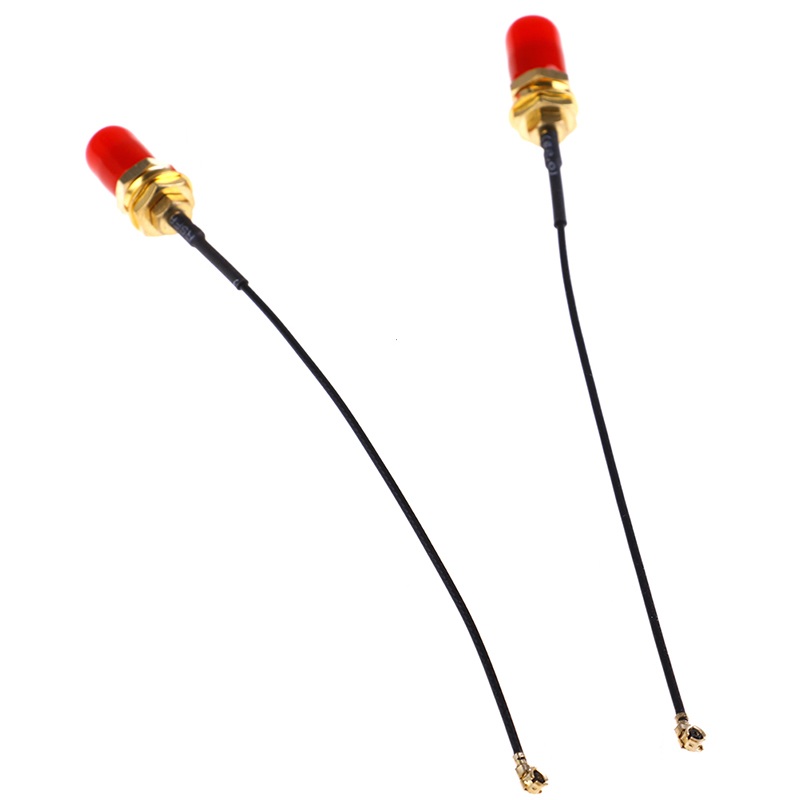

2PCs IPEX (IPX) to SMA Antena Apdater 10CM

2PCs IPEX (IPX) to SMA Antena Apdater 10CM

Cable adaptador de conector IPEX (IPX) a SMA hembra, de 10 cm de longitud.

COD: TRONAN1005

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 6314.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

Some ICs  have the IPEX port directly on the top of it, this antenna help you to convert small IPEX port to normal SMA type antenna port, so you have more choices of SMA type antenna.

One end is IPEX male and other is SMA female.

Features:

  • Cable Length: 100mm ±3mm
  • Total Length: 120mm ±3mm
  • SMA Length: 11mm
  • Frequency: 880MHz~960MHz; 1710MHz~1880MHz
  • Polarization:Vertical or Level
  • V.S.W.R: ≤1.2
  • Connector: SMA (Female)+ RG178 Cable (Tinplating)
  • Output impedance: 50Ω
  • Power: 50W
  • Working temperature:-40ºC~+85ºC
