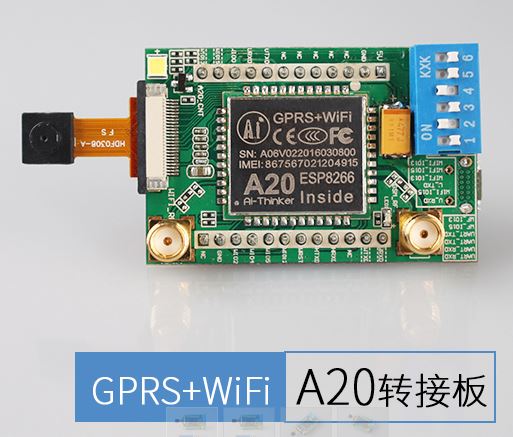

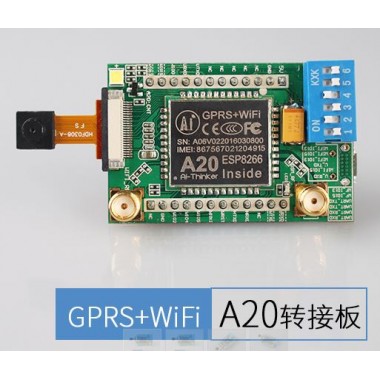

A20 Mini Dev Board, GSM GPRS WIFI Camera

Principal

Breakout para el popular módulo A20, que incluye al popular ESP8266. Soporta comunicación GSM/GPRS y Wi-Fi. Incluye dos antenas y una cámara.

COD: TRONWI1108

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 29346.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

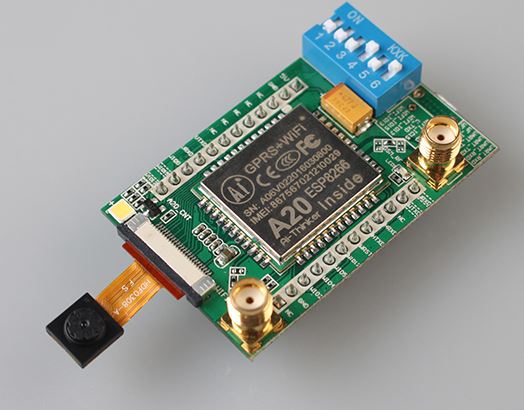

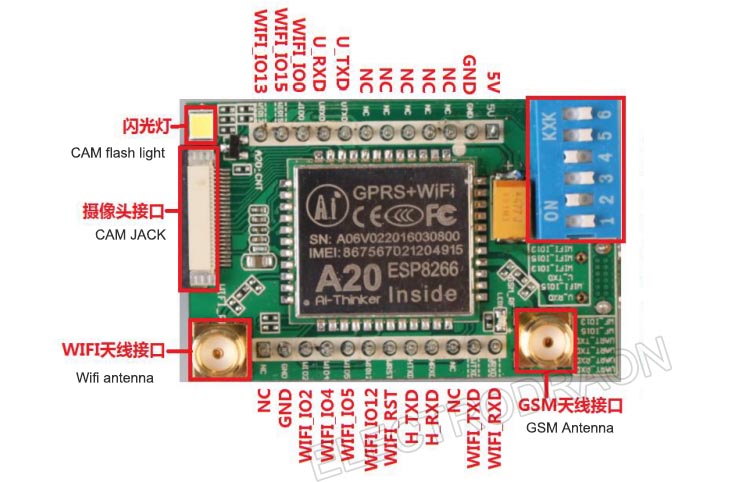

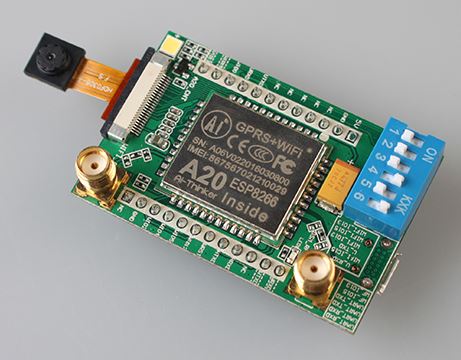

  • Breakout board for A20 module
  • On board two antenna jack.
  • On board camera jack.
  • Package includes main board, two antenna and camera.
  • On board DIP switch to the working mode.

A20 Description

  • Support GPRS and wifi two main technology, seamless switch in these two.
  • Based on ESP8266 (or 8285) wifi IC.
  • Serial UART communication from MCU to A20, or camera data from A2; A20 data transmission via GPRS or wifi to user.
  • GPRS and Wifi can power alone, and work alone.
  • Support four working mode, GPRS mode, wifi mode, both mode, wifi control GPRS and camera mode. use esp8266/8285 secondary uart port, this need develop your own program.
  • Semi-hole technology, through the standard SMT equipment to achieve the rapid production module for customers with high reliability of the connection, especially for automation, large-scale, low-cost modern production methods.

Application:

  • Outdoor monitoring, agricultural monitoring, industrial monitoring, intelligent home appliances, driving test system, Fingerprint Face Camera Punching machine, video doorbell camera camera lights in many fields.
  • Can get pictures at the same time, through WiFi or GPRS seamless switch transmission, become the biggest bright spot of its application.

Features:

  • WiFi + GPRS Combo
  • Size 22.80 x 19.80mm
  • Operating temperature -30 ºC to + 80ºC
  • Operating voltage 3.3V-4.2V
  • Boot voltage> 3.4V
  • Power supply: DC 5V 1A
  • Support GSM / GPRS four frequency bands, including 850, 900, 1800, 1900MHz
  • Support global GSM network
  • Support serial port and network communication
  • Support SMS messages
  • Support camera, picture compression format: JPEG standard
  • Image resolution: VGA (640 x 480), QBGA (320 x 40), QQBGA (160 x 120), can be set through the serial port instruction
  • Support for transmission of pictures, the maximum speed of 16KB / S
  • Support for external 300,000 pixel camera
  • GPRS Class 10
  • Sensitivity <-105
  • Built-in ESP8285/8266 WiFi chip, support WiFi chip secondary development
  • Support GPRS data services, the maximum data rate, download 85.6Kbps, upload 42.8Kbps
  • Support for digital audio and analog audio, support HR, FR, EFR, AMR voice coding
  • Support ROHS, FCC, CE, CTA certification
