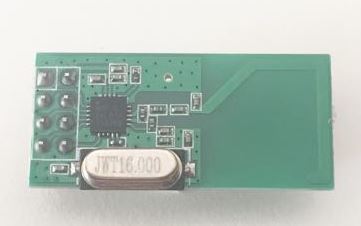

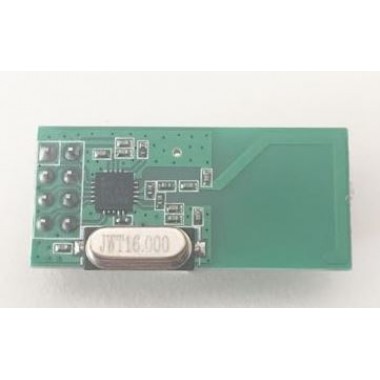

NRF24L01+ 2.4GHz Wireless Module (Arduino supported)

Principal

Modulo de comunicación inalámbrica basado en el chip NRF24L01 de bajo consumo; trabaja en la banda ISM de 2.4GHz, puede transmitir datos hasta 2Mbps.

COD: TRONWL1053

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 5436.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

Overview:

RF24L01+ low power wireless module, use  NRF24L01 chip from Nordic, 2.4G lisence-free ISM band, highest working data speed is 2Mbps, 125channels can reach different point or jump frequency communication needs, small size 18*37 mm, high efficiency GFSK modulation, anti-interfere, specially suit for indutrial control.

Feature:

  • 2.4Ghz  lisence-free ISM band
  • Highest data speed 2Mbps high efficient GFSK modulation, anti-interfere, specially suit for indutrial control
  • 125 channel, can reach different point or jump frequency communication needs
  • Integrated hardware 8/16 bytes CRC confirmation and point to mutiple points communication adress control, combine TDMA – CMDA – FDMA working principle, enable wireless communication.
  • Low power comunpiton 1.9 – 3.6V Standby mode only need 1uA
  • Module can set address by software, only output data when receive own device address(display interruption), can directly connect to any single chip, easy to program.
  • Send and receive interruption signal, send 28 bytes maximally each time.
  • Integrated special voltage regulator, use any kind of power including DC/DC power can have better communication effort.
  • Standard DIP jack, easy for embedded system application.
  • CLK - DATA - DR three wires connection, easy to program
  • Two channels data receive, embedded circular antennas, communication distance is 20-30 meters in open and no interferes environment.
  • Dimension: 34mm * 17mm * 1mm, PCB embedded antennas

Applications:

Vehicle monitoring, remote control, telemetry, small wireless network, wireless access control systems, residential short range paging, industrial data acquisition systems,wireless tags, identification, non-contact RF smart card, a small wireless data terminals, security, fire systems, wireless remote control system, bio-signal acquisition, hydrological and meteorological monitoring, robot control, wireless 232 data communications, wireless digital audio, digital image transmission
