ESP-13 ESP8266 Wifi Board

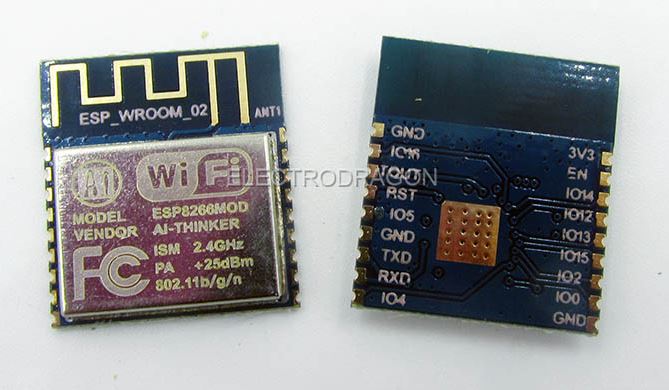

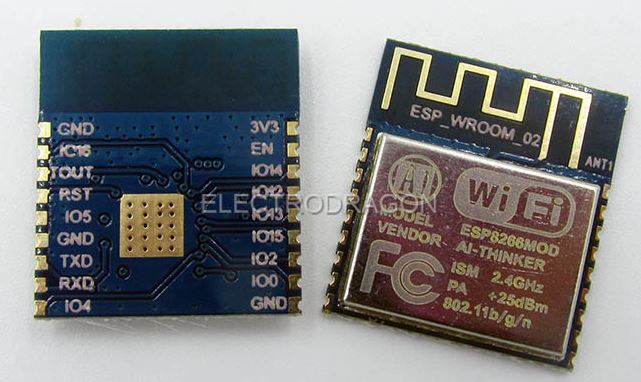

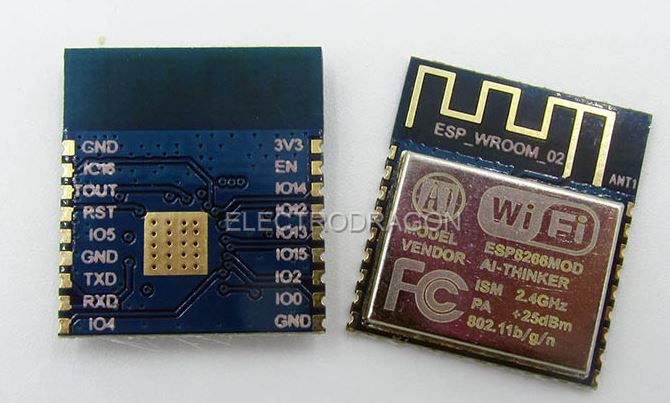

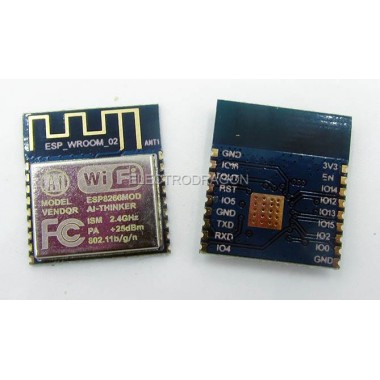

Vista superior e inferior 3

Modulo Wi-Fi ESP-13 que integra el popular ESP8266; ideal para proyectos de IoT.

COD: TRONWI1038

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 6364.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

  • ESP8266 is a 32-bit low power micro-controller (MCU) Wi-Fi Module that integrates TCP/IP network stacks, and includes 10-bit ADC with HSPI, SDIO, UART, PWM, I2C, and I2S interfaces.
  • The module is highly integrated. It consumes extremely low power while providing wireless internet connection for embedded devices.
  • It can be easily integrated into resource-limited devices due to its small form factor of only 18mm x 20mm.
  • In addition to the ESP8266EX chipset, the module also integrates an SPI flash with 32Mbits capacity, along with a SOP8-150mil package. The SPI flash is incredibly useful for storing user programs and firmware.
  • FCC CE TELEC certificated.

Additional Information

Weight 0.01 kg
ESP

ESP8266
