Pololu Ball Caster with 3/8 inch Metal Ball

Pololu Ball Caster with 3/8? Metal Ball

Rueda esférica metálica de giro libre utilizada generalmente en robots móviles.

COD: P000951

Peso: 0.004 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 3392.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Overview:

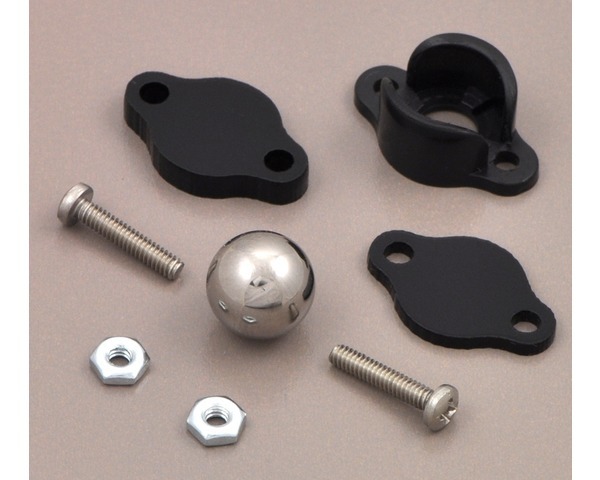

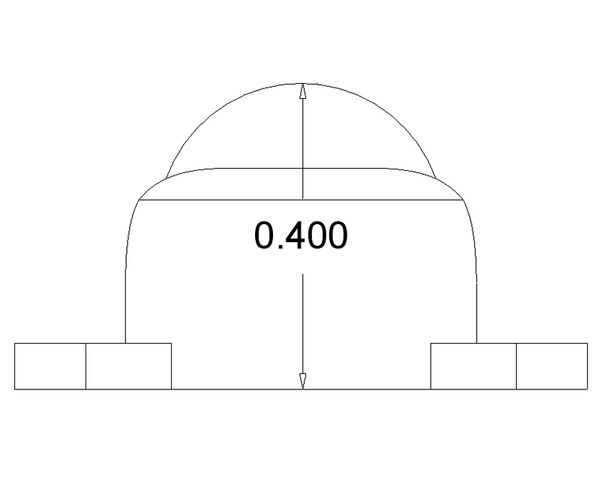

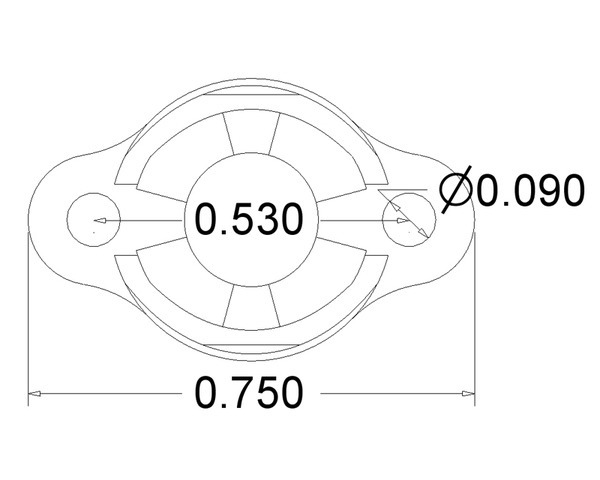

This ball caster kit includes a black ABS housing, a 3/8″ diameter metal ball, two spacers (1/16″ and 1/8″ thick), and two #2 screw sets. The total height of the ball caster, 0.4″, can be increased to about 0.6″ using the included spacers. The two included #2 screws can be used to mount the ball caster to your chassis (the distance between the screw holes is 0.53″).

Note that our ball casters are designed for small robots; they are not intended to bear more than a few pounds. With more weight than this, friction between the ball and the housing will probably keep it from rolling well.

Dimensions:

Ball diameter: 0.375 in
Weight: 4 g

General specifications:

Ball material: metal
